Min. Illumination:
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
P/N:
P/N
Image Sensor:
1/2.8" Progressive Scan CMOS
Shutter Speed:
1/3 s to 1/100,000 s

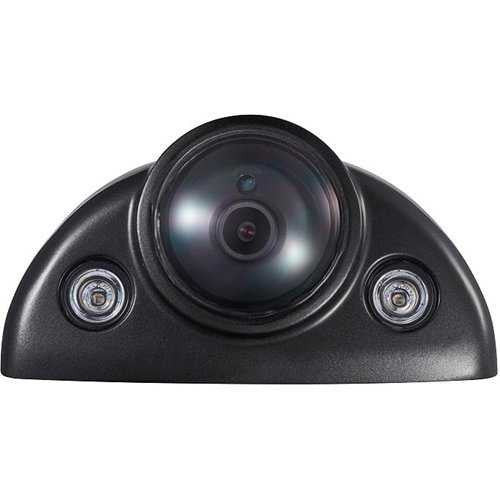

Case Type:
Wedge
Slow Shutter:
Yes
Resolution:
2MP
Day & Night:
IR Cut Filter
Angle Adjustment:
2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90°;4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°
Focal Length & FOV:
2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°;4 mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°;6 mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
Lens Mount:
M12
Lens Type:
Fixed Lens
Max. Aperture:
2.8 mm/4 mm/6 mm: F 1.6
Smart Supplement Light:
Yes
IR Wavelength:
850nm
IR Range:
Up to 30m
Max. Resolution:
1920 × 1080
Main Stream:
50Hz:25fps(1920 x 1080, 1280x960, 1280 x 720);60Hz:30fps(1920 x 1080, 1280x960, 1280 x 720)
Sub-Stream:
50Hz:25fps(704 x 576, 640x480, 352 x 288, 320x240);60Hz:30fps(704 x 576, 640x480, 352 x 288, 320x240)
Third Stream:
50Hz:25fps(1920 x 1080, 1280x960, 1280x720, 704x576, 640x480, 352 x 288, 320x240);60Hz:30fps(1920 x 1080, 1280x960, 1280x720, 704x480, 640x480, 352 x 240, 320x240)
Video Compression:
Main Stream: H.265 /H.264/H.264+/H.265+;Sub-Stream: H.265 /H.264 / H.264+/H.265+/MJPEG;Third Stream: H.265 /H.264/H.264+/H.265+
Video Bit Rate:
Main Stream: 256 Kbps to 12 Mbps;Sub-Stream: 256 Kbps to 4 Mbps;Third Stream: 256 Kbps to 12 Mbps
H.264 Type:
BaseLine Profile/Main Profile/High Profile
H.265 Type:
Main Profile
Scalable Video Coding (SVC:
H.264 and H.265 encoding
Region Of Interest (ROI:
Support 2 fixed region for (main/sub) stream
Protocols:
TCP/IP，HTTP，HTTPS，FTP，DHCP，DNS，DDNS，RTP，RTSP，NTP，UPnP，SMTP，SNMP，UDP，SSL/TLS, RTCP, ICMP，IGMP
Simultaneous Live View:
Up to 20 channels
API:
HIKSDK, ONVIF (PROFILE S, PROFILE G,PROFILE T), ISAPI
User Management:
Up to 32 users;3 levels: Administrator, Operator and User
Network Storage:
MicroSD/SDHC/SDXC card (up to 256 GB), local storage ),ANR Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Web Browser:
Plug-in required live view: IE8+
Wide Dynamic Range (WDR:
120 dB
Smart IR:
No
Image Settings:
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch:
Day/Night/Auto/Schedule
SNR:
＞50dB
Image Enhancement:
BLC, HLC, 3D DNR
Privacy Mask:
4 regions of privacy mask
Picture Overlay:
LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
DNR:
3D DNR
Ethernet Interface:
Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port;-M: 1 four-core M12 aviation plug
Local Storage:
Up to 256GB
SD Card Storage:
Yes
Audio:
No
Alarm:
No
RS-485:
No
Reset Key:
Yes
Heater:
Yes
Linkage Method:
Upload to FTP/NAS/memory card, notify monitoring center, send email, trigger recording, trigger capture
Basic Event:
Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error)
Smart Event:
Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Object detection: detects faces and upload images;Scene change detection, defocus detection
Product Dimension:
Camera: 163.7 mm × 122.6 mm × 65.1 mm (6.4" × 4.8\" × 2.6\");With package: 252 mm × 190 mm × 108 mm (9.9 × 7.5\" × 4.3\")"
Power Interface:
-I/ND: RJ45 interface, PoE power supply;-ID: Ø 5.5 mm coaxial power plug, DC;power supply;-IDM: two-core Molex connector, DC power supply;-IM/ND: four-core M12 aviation plug, PoE power supply
Power Consumption:
-ID, -IDM: 9~36 V DC, max. 10 W;-I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W
Protection:
IP68(IEC 60529-2013), IK10(IEC 62262:2002), IP69K(ISO 20653:2013)
Power Supply:
-ID, -IDM: 9-36V, two-core terminal block, reverse polarity protection&PoE802.3af; -I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3
Camera Material:
Metal
Product Weight:
Camera: Approx. 905 g (2.0 lb.);With package: 1271 g (2.8 lb.)
Startup And Operating Conditions:
-40 °C to 75 °C (-40 °F to 167 °F).Humidity 95% or less (non-condensing)
Language:
Support English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish,Czech
General Function:
Anti-flicker, 3 streams, heartbeat, mirror, privacy mask
Electrical Safety Protection:
IK10(IEC 62262:2002）
EMC:
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
Safety:
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
Environment:
CE-RoHS (2011/65/EU);
Automotive And Railway:
EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
