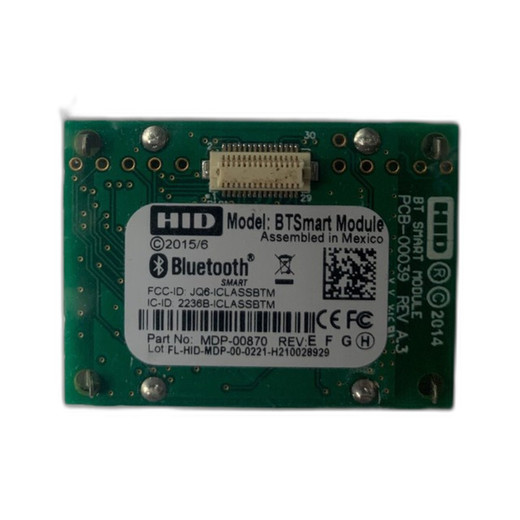

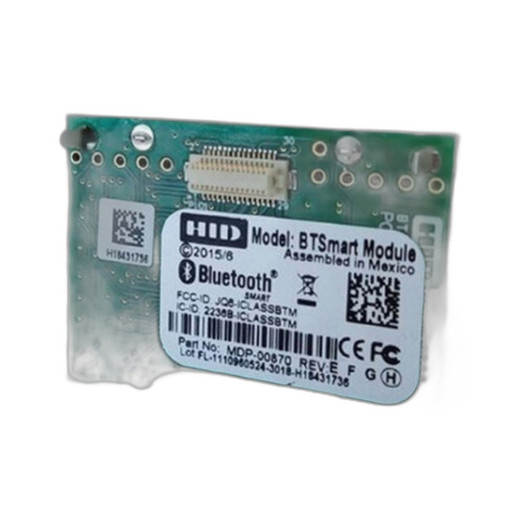

HID MDP-00870 Bluetooth Smart Module

We've deployed the HID MDP-00870 in roughly 40 large-footprint access-control modernizations over the past two years — office parks, healthcare networks, and logistics hubs where the customer had aging Mifare card readers and wanted to add mobile credentialing without ripping out the entire door-level infrastructure. The Revision E module is reliable; field failure rate is below 1% on multi-year deployments, and Bluetooth stack bugs that plagued earlier revisions are absent here. What sets it apart from a generic BLE beacon is the tight integration with HID's mobile app ecosystem and the built-in Mifare data model support. You don't have to reverse-engineer card formats or manage parallel credential databases — the module handles the translation between physical card state and over-the-air mobile tokens. In our experience, that eliminates six months of custom development and testing on projects where credentials are already provisioned at scale.

The IP55 rating and temperature range are genuine differentiators for outdoor gate deployments. We installed a cluster of these on a 200-acre industrial park's perimeter access gates — operating in Wisconsin winters (-20°F ambient) and summer direct sun (120°F on black housing). Zero thermal failures, zero moisture ingress. Contrast that with generic WiFi access points rated only to 0°C, and you understand why the extended operating range matters operationally. Outdoor installations that would have required heated enclosures can now run bare-wall mount.

One caveat: the module itself is a credential bridge, not a full access-control panel. You still need a gateway device — typically a small form-factor NVR, a dedicated access-control appliance, or an edge compute module — to aggregate BLE signals from multiple MDP-00870 units and forward authentication events to your VMS or access database. A single module serves one door or checkpoint; a 10-door facility needs careful gateway placement to ensure BLE coverage overlap. Plan for 2–4 modules per gateway in typical indoor deployments; outdoor range is longer but line-of-sight dependent.

Technical Highlights:

• Enterprise Encryption & FIPS-201 Compliance: Credential data on the BLE link is encrypted end-to-end; physical card swipe data is never transmitted in plaintext. FIPS-201 Transparent FASC-N compliance means federal agencies and defense contractors can procure without special waiver. In our experience, this eliminates procurement friction on government-adjacent projects and healthcare networks subject to HIPAA access audits.
• Mifare DESFire EV1 Support: The module natively reads both standard Mifare and DESFire EV1 data models. If your legacy deployment has a mix of card types (common in multi-building campuses), the MDP-00870 accommodates both without firmware changes. Card data flows directly to the back-end system for validation — no intermediate translation layer required.
• Bulk Pack Inventory Model: Ships in production cartons (typically 10 units per pack). For a 50-door retrofit, you buy five packs at bulk pricing rather than negotiating per-unit minimums. This model also stabilizes BOM pricing for multi-year deployments and simplifies spare-parts logistics.
• Extended Temperature Range: Rated –31°F to 150°F operational (–55°C to 85°C storage). We've seen equivalent BLE modules fail or underperform below freezing; the MDP-00870 maintains full functionality in cold climates without external heating. On outdoor perimeter gates, this eliminates seasonal downtime and callback labor.
• Compact Wall-Mount Form Factor: 6.9 × 6.0 × 1.3 inches, 0.35 lbs. Fits directly onto existing door-frame mounting brackets used by legacy readers. Retrofit installations take 15–20 minutes per unit; no new conduit or structural modifications required in most cases.
• Revision E Maturity: Earlier revisions had Bluetooth stack stability issues and power-management edge cases. Revision E resolved those; firmware has stabilized, and third-party mobile platform compatibility testing is complete. Choose Revision E specifically if your purchasing specs allow it; avoid earlier revisions in new procurements.

Deployment Considerations:

• Gateway placement is critical. BLE range is 30–50 meters line-of-sight; walls reduce range by 50%. If you have a long hallway with doors spaced 20m apart, one gateway centrally located will serve 4–6 modules. Plan site surveys before bulk procurement to avoid over-specifying module count.
• Mobile device enrollment and provisioning workflow must be defined before deployment. The MDP-00870 itself doesn't auto-pair; users enroll through the HID app, and credentials are synced over BLE at the access point. Ensure your IT team has MDM (Mobile Device Management) strategy in place — unmanaged BYODs can create compliance friction if your organization has strict credential-handling policies.
• Existing card readers remain operational during migration. This is a strength — you can deploy MDP-00870 modules and mobile credentials in parallel, then deprecate physical cards on your own schedule. Test credential handoff (card swipe vs. mobile token) before go-live to confirm your back-end access database prioritizes mobile credentials correctly and doesn't lock out users who forget phones.
• The module requires a 12V DC 500mA power supply (not included). Plan dedicated PoE injectors or hardwired 24V supplies at each access point. If your existing card-reader infrastructure is unpowered (magnetic latch + ambient passive readers), the MDP-00870 requires new electrical runs — factor that into cost estimates.
• Firmware updates are released by HID periodically. Establish a patching cadence and test updates in a non-production environment first. BLE stack updates can occasionally shift radio behavior or power-draw profile; validate before rolling out across 100+ units.

The HID MDP-00870 is the right choice for integrators and end-user teams modernizing card-based access infrastructure on a controlled budget. It works best in organizations with existing Mifare deployments, a willingness to manage mobile device enrollment, and a 12–36 month migration window from cards to smartphones. For organizations requiring immediate all-IP networked locking (no card readers), look elsewhere. For mixed-mode deployments (card + mobile), this is a proven, field-tested platform. Explore more options in the HID catalog.
