HID 096201 Magnetic Encoding Module Field Upgrade Kit
Overview
The HID 096201 is a field upgrade kit designed to add magnetic stripe encoding capability to existing HDP5000e card printer installations. This upgrade module enables organizations to extend credential encoding functionality without requiring full printer replacement, delivering cost-effective capability expansion for security integrators managing established HID printer deployments.

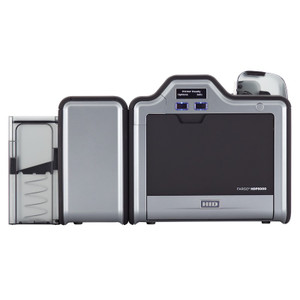

The 096201 upgrade kit is engineered exclusively for HDP5000e dual-sided printer platforms. Organizations currently operating legacy HDP5000 models should verify equipment specifications before ordering, as this kit is not compatible with non-e series hardware. The magnetic encoding module integrates directly into the HDP5000e print path, enabling simultaneous or sequential magnetic stripe encoding during card production workflows.
Key Features
- Magnetic Stripe Encoding Capability: Adds ISO/IEC 7811 magnetic stripe encoding to HDP5000e platforms, enabling dual-credential issuance (visual card + magnetic data layer)
- HDP5000e Dual-Sided Printer Compatibility: Field upgrade designed for dual-sided HDP5000e printer models only; legacy HDP5000 hardware not supported
- Direct Integration: Installs as a field retrofit module within the existing HDP5000e print mechanism, minimizing operational downtime during upgrade
- Cost-Effective Capability Extension: Adds magnetic encoding functionality without requiring complete printer replacement, optimizing capital equipment management
- Production Workflow Integration: Supports credential issuance workflows requiring both visual and magnetic data encoding on single cards
- Security-Grade Encoding: Encodes magnetic tracks to industry standards for access control, identification, and payment credential applications
Integration & Compatibility
The HID 096201 upgrade kit is a direct replacement module for HDP5000e printers equipped with dual-sided printing capability. Pre-installation verification is essential: confirm your printer model is HDP5000e (not legacy HDP5000) and that dual-sided printing hardware is present. The upgrade module connects to existing HDP5000e encoding pathways and requires integration with your card design and issuance management system to encode magnetic track data during production.
Security integrators deploying this upgrade should coordinate with HID issuance management software teams to ensure magnetic track encoding is properly configured within your credential design templates and production batch processes. The module supports standard ISO magnetic track layouts (Track 1, Track 2, Track 3) for access control, identity verification, and payment applications.
Organizations managing multi-site HDP5000e deployments can deploy the 096201 upgrade across printer fleets to standardize magnetic encoding capability, streamlining credential issuance consistency and reducing complexity in mixed-hardware environments.
Package Contents
The HID 096201 field upgrade kit includes the magnetic encoding module unit and integration components required for direct installation into HDP5000e dual-sided printer hardware. Consult HID installation guidance or contact your specialty distributor for detailed integration procedures specific to your equipment configuration.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The HID 096201 represents a practical hardware refresh option for integrators managing established HDP5000e printer fleets that require magnetic stripe capability without capital equipment replacement. During deployment planning for a regional access control credential refresh, we identified several HDP5000e installations lacking magnetic encoding, and the 096201 upgrade module provided a straightforward retrofit path that preserved existing printer investments while adding required credential encoding functionality.
Technical Highlights:
- Magnetic Stripe Encoding: The 096201 module enables ISO/IEC 7811 magnetic track encoding, supporting Track 1, Track 2, and Track 3 configurations for access control and identification credential applications.
- HDP5000e Dual-Sided Requirement: Field upgrade compatibility is restricted to HDP5000e dual-sided printer hardware; legacy HDP5000 models are not supported, making pre-installation equipment verification critical.
- Direct Module Integration: The upgrade installs as an integrated component within the HDP5000e print pathway, requiring coordination with credential design systems to properly encode magnetic track data during card production.
Deployment Considerations:
- Verify HDP5000e dual-sided printer presence before ordering; legacy HDP5000 hardware cannot accommodate the 096201 upgrade module.
- Coordinate with your HID issuance management system administrator to enable magnetic track encoding in credential design templates and configure production batch workflows to populate track data during card manufacturing.
- For multi-site deployments, stagger upgrade scheduling to maintain credential production capacity across your issuing locations while individual printers are retrofitted.
The 096201 is a cost-effective means to extend magnetic encoding capability across established HDP5000e platforms, particularly valuable in access control environments where credential standardization across issuing sites improves operational consistency and reduces support complexity.
