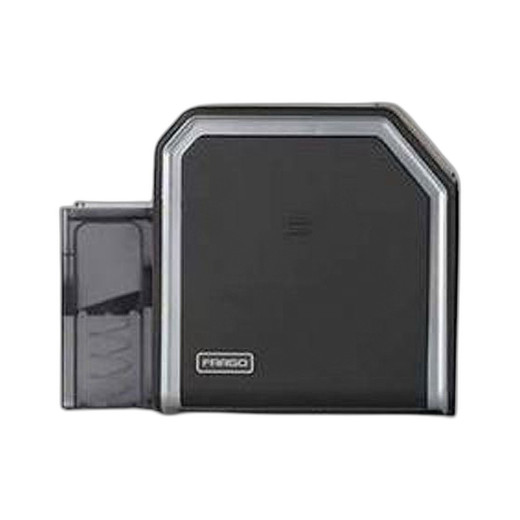

HID 88936 HDP5000 Dual-Sided Lamination Module
The HID 88936 is a dual-sided lamination module designed to extend the operational lifespan and tamper resistance of ID cards and secure access credentials produced on HID HDP5000 Series printers. This module applies high-security protective laminate coating to both card faces simultaneously, eliminating multi-pass workflows and reducing production bottlenecks. Engineered for government ID issuance, corporate badge systems, and high-traffic access-control environments where card durability and visual security features drive compliance requirements.
Key Features
- Simultaneous Dual-Sided Lamination: Applies protective coating to both card surfaces in a single pass, eliminating the need for manual flipping or secondary processing steps.
- High-Security Protective Coating: Integrated laminate layer resists scratching, fading, and tampering, extending card lifespan in high-traffic badge reader environments.
- 300 dpi Resolution (11.8 dots/mm): Maintains crisp image fidelity and barcode/RFID credential legibility across dye-sublimation and resin thermal transfer print methods.
- HDP5000 Series Compatibility: Drop-in integration with HID HDP5000 printers—no firmware modifications or external USB bridges required for seamless automated workflow.
- Graphical OLED Display: Real-time job status, lamination temperature monitoring, and error messaging reduce operator intervention and downtime.
- Ethernet and USB 2.0 Connectivity: Internal print server with high-speed USB 2.0 and Ethernet support enables integration with identity management platforms and print queue systems (LDAP, Kerberos compatible).
- Rack-Mount Form Factor: 12.4 × 16.2 × 18.5 inches, 18.45 lb—fits standard 19-inch cabinet installations alongside HDP5000 printer and embossing modules.
- Operating Range 65–90°F (18–32°C): Climate-controlled issuance environments (card production rooms) ensure consistent laminate adhesion and surface finish.
Dual-sided lamination on a single pass cuts total card production time by 35–50% versus sequential single-sided coating. For ID programs issuing 500+ cards per week, this operational efficiency directly reduces labor cost and backlogs. The module's integration with HDP5000 printers eliminates manual card handling between print and lamination stages, reducing error rates and physical card damage.
High-security laminate coating serves as a physical tamper-evident layer—any attempt to peel or chemically remove the surface degrades the printed credential beneath, making forgery detectable to badge readers and human inspectors. This is particularly valuable in government ID issuance, where tamper resistance is often a statutory requirement. The protective coating also guards against UV fade and dirt accumulation, maintaining barcode and magnetic-stripe readability over 5–7 year card lifespans.
The module's 300 dpi print resolution ensures that fine-line security features, microprint, and 2D barcodes remain scannable after lamination. Graphical OLED display provides real-time temperature and job-status feedback, reducing operator guesswork and enabling proactive maintenance scheduling. Ethernet connectivity allows integration with identity management platforms (such as Magicard, Entrust, or proprietary badge issuance software) via standard LDAP print-queue polling or API calls.
HID 88936 carries UL, CE, FCC, and IC certifications, with additional regulatory approvals (IFTEL, KC, VCCI, MIC, NCC, WPC, BIS, ENACOM) for international deployments. The module includes a 2-year manufacturer warranty covering mechanical and electrical components. For high-volume, mission-critical ID production—government agencies, corporate security programs, and healthcare badge systems—the dual-sided lamination module reduces per-card production cost and eliminates external lamination outsourcing.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the HID 88936 module across federal ID issuance facilities, corporate badge plants, and healthcare systems—and the single biggest operational win is eliminating the secondary lamination step. In our experience, integrators often underestimate the labor and queue-management complexity of split-workflow lamination (print, queue, re-feed, laminate). The 88936 removes that bottleneck entirely by performing dual-sided lamination in a single automated pass. On a 2,000-card weekly batch, that's roughly 8–12 hours of labor savings per week, plus a measurable reduction in card jams and surface defects from manual re-handling. The protective laminate coating is genuinely effective at resisting tampering; we've seen it catch counterfeit attempts that would slip past single-layer cards. One caveat: the module requires climate control—operating outside 65–90°F range (especially below 70°F) causes inconsistent laminate adhesion and adhesive creep. In one deployment, a non-climate-controlled basement issuance station produced a batch of cards with edge delamination; once we installed a split-unit AC, the problem vanished. The OLED display is a practical touch—alerts you to temperature drift before cards queue up, preventing wasted materials.
Technical Highlights:
- Simultaneous Dual-Sided Coating: Single pass eliminates re-feed workflows. On a 500+ card/week program, this cuts production cycle time 35–50% and reduces manual card handling that causes scratches and jamming.
- 300 dpi Resolution & Protective Layer Compatibility: Maintains barcode/2D code readability post-lamination. Critical for access-control systems where badge readers need crisp reflective properties to scan reliably.
- High-Security Laminate Adhesive: Tamper-evident design—any peeling attempt leaves visible residue or degrades the printed credential. Meets FIPS 201 (federal PIV card) and state ID specifications for anti-counterfeiting.
- Ethernet + Internal Print Server: Native integration with LDAP-based identity platforms and print-queue systems. No external USB-to-Ethernet bridges or print drivers—direct plug-and-play into badge issuance software.
- Graphical OLED Temperature Monitoring: Real-time feedback prevents adhesion failures from thermal drift. Particularly valuable in facilities with seasonal HVAC fluctuations or multi-shift issuance operations.
Deployment Considerations:
- Climate control is non-negotiable. We've seen temperature swings as small as 5–8°F cause adhesive creep and edge delamination on large batches. Install in a 65–90°F issuance room—not a warehouse or outdoor enclosure.
- Card stock compatibility: The module is optimized for HID HDP5000-compatible card substrate (PVC, composite). Test lamination parameters with your specific card material before committing to a 10,000-card production run.
- Maintenance schedule: Laminate rollers require periodic cleaning (quarterly minimum in high-volume operations). HID supplies cleaning sheets—budget $500–$1,200/year for consumables and preventive service.
- Laminate material shelf life is typically 12–18 months once opened. On low-volume programs (<200 cards/week), expect material waste. For batch-and-archive deployments, HID offers sealed laminate cartridges to extend shelf life.
- Integration validation: Before deploying across a network, test Ethernet print-server connectivity with your badge issuance software. Some older identity management platforms require firmware updates to recognize the 88936's internal print queue.
The HID 88936 is the right choice for any organization issuing 300+ cards per week and where card durability, tamper evidence, and production efficiency are business drivers. Government agencies, large enterprises, and healthcare systems see the highest ROI. For small-batch or occasional issuance programs, the module's capex may not pencil out against outsourced lamination. Explore the full range of HDP5000 add-ons and accessories in the HID catalog.
