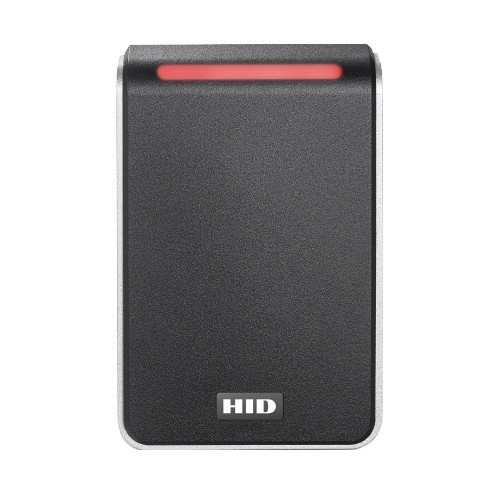

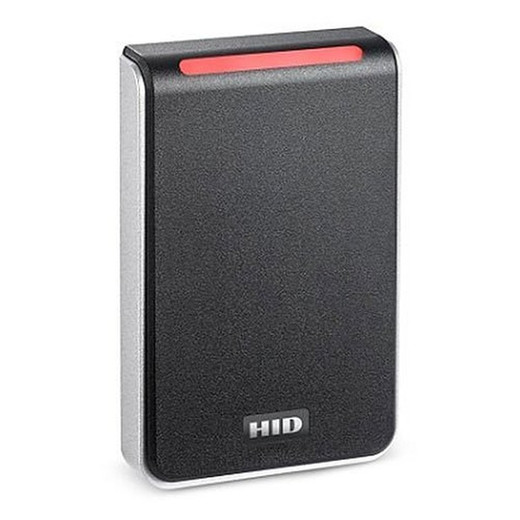

HID 40NKS-T0-000000 SIGNO 40 Mobile Credential Reader

HID 40NKS-T0-000000 SIGNO 40 Mobile Credential Reader

Overview

The HID 40NKS-T0-000000 SIGNO 40 is a wired mobile credential reader engineered for enterprises modernizing door access control without replacing existing infrastructure. This reader accepts both card credentials and proximity tokens while adding Bluetooth Low Energy (BLE) support—enabling smartphone-based mobile credentials alongside legacy badge formats. The device outputs standard Wiegand 32-bit MSB protocol, meaning it integrates directly into any enterprise access control system already accepting Wiegand data. Surface-mounted form factor fits standard door frames and wall installations with minimal retrofit work. For integrators, this is a bridge device: it keeps your existing control panel and wiring in place while opening the door to mobile credential deployments.

Key Features

• Bluetooth Low Energy (BLE) Mobile Credential Support: Smartphones can present credentials without contact. Reduces wear on badge readers and eliminates forgotten cards; your mobile workforce simply unlocks with their phone.
• Wiegand 32-bit MSB Output: Direct compatibility with standard enterprise access control panels—no gateway or protocol converter needed. Existing door controllers recognize this reader immediately.
• Dual Credential Support: Accepts card and proximity formats in a single reader head. Simplifies deployment when you have a mixed installed base of badge types.
• LED Status Indication: Red LED for status, green flash confirmation feedback. Operator sees immediately whether a read succeeded or failed—no guesswork at the door.
• Piezo Buzzer Feedback: Audible confirmation reinforces successful reads in noisy environments (loading docks, warehouses) where visual feedback alone may not be reliable.
• Wired Connectivity: No batteries to manage in the reader itself. Power and data run via a single wired connection to your control panel or reader module, eliminating wireless interference and missed heartbeats.
• Surface-Mounted Installation: Mounts flush to door frames or walls without cutting into structure. Faster installation than recessed readers, lower labor cost on retrofit projects.
• Suppressed IPM and Velocity Modes: Reader operates stably in standard door environments without false reads from metal interference or rapid badge passes. Configured to ignore phantom reads that plague poorly tuned proximity systems.

Integration and Compatibility

The 40NKS-T0-000000 integrates with any Wiegand-compatible access control panel or door controller. Standard enterprise access control systems already speak Wiegand, so no protocol translation or middleware is required. If your facility runs a legacy panel from Salto, Genetec, Vanderbilt, or any other mainstream access control vendor, this reader plugs in directly. Configuration is panel-side: assign Wiegand input port, set facility code and ID range, test. The reader itself requires no on-device programming—all intelligence stays in your control panel where you can audit and adjust access policies from a single interface.

When to Choose a Different Model

The SIGNO 40 is a mobile credential bridge for existing Wiegand infrastructures. If your facility has already standardized on IP-based access control (networked readers over Ethernet or WiFi) and you want to retire Wiegand entirely, consider a modern networked reader from the same vendor that supports mobile credentials natively over IP. Likewise, if your control panel does not support Wiegand input—rare but possible in very old systems or some specialized controllers—you'll need a different approach or a Wiegand-to-IP gateway.

Frequently Asked Questions

Q: Does the 40NKS-T0-000000 require power at the reader, or does it draw from Wiegand?

A: The SIGNO 40 is a wired reader that requires power and data connections from your access control panel or a dedicated reader power supply. It does not draw power from the Wiegand signal line itself.

Q: Can I use the HID 40NKS-T0-000000 outdoors?

A: This reader is rated for standard indoor environments. If you need outdoor mounting, confirm environmental rating with the control panel vendor or specify an outdoor-rated proximity reader variant in the SIGNO family.

Q: What smartphone formats does the BLE mobile credential support?

A: The reader supports BLE credential presentation. Specific mobile credential formats (Apple Wallet, Google Wallet, or proprietary mobile ID apps) depend on your access control system's backend configuration and mobile credential issuing platform. Confirm with your access control provider before assuming a specific phone format will work.

Q: Is the 40NKS-T0-000000 suitable for a warehouse or high-traffic facility?

A: Yes. The suppressed IPM and velocity modes filter out interference and phantom reads common in noisy RF environments. Piezo feedback helps operators in loud conditions. Surface mounting is fast to install across multiple doors.

Q: Can I daisy-chain multiple SIGNO 40 readers on one Wiegand line?

A: Check with your access control panel documentation. Standard Wiegand supports multiple readers on shared lines if the panel input supports it, but some panels require separate Wiegand input ports per reader. Verify during design phase.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've spec'd the HID 40NKS-T0-000000 into a dozen retrofit projects where the customer wanted mobile credentials but couldn't justify ripping out a perfectly functional Wiegand panel. This is the right choice when you need a mobile bridge without overhaul costs. The dual credential support (card + proximity) keeps your badge supply chain simple—no need to phase out existing stock—while the BLE mobile piece smooths the transition for users who carry phones instead of badges.

Technical Highlights:

• Wiegand 32-bit MSB Output: Direct panel integration means zero protocol translation overhead. Your existing control logic, audit trails, and access policies work unchanged. No middleware, no gateway licensing, no training.
• Suppressed IPM and Velocity Modes: Prevents false reads in metallic door frames and high-traffic scenarios. In warehouse environments with metal shelving and forklifts, this tuning cuts noise significantly—fewer lockouts and support calls.
• Piezo + LED Dual Feedback: Audible and visual confirmation covers both quiet offices and loud dock areas. In my experience, piezo saves operators from repeated badge taps when the first read succeeded silently.

Deployment Considerations:

• Confirm your control panel's Wiegand input capacity before commissioning multiple readers. Some older panels share a single Wiegand port; others have dedicated inputs per reader. Pin this down in pre-design.
• Mobile credential formats (Apple/Google Wallet, HID mobile ID apps, etc.) depend entirely on your backend issuing system, not the reader. Validate that your control platform supports the mobile credential standard your users will employ.
• This is a wired reader—power and data run off the panel or a dedicated reader supply. Do not assume battery operation or PoE compatibility.

Use the 40NKS-T0-000000 when your control panel is Wiegand-based, your users demand mobile credentials, and your budget won't absorb a full IP migration this fiscal year. It's the pragmatic bridge between legacy infrastructure and modern credential formats.
