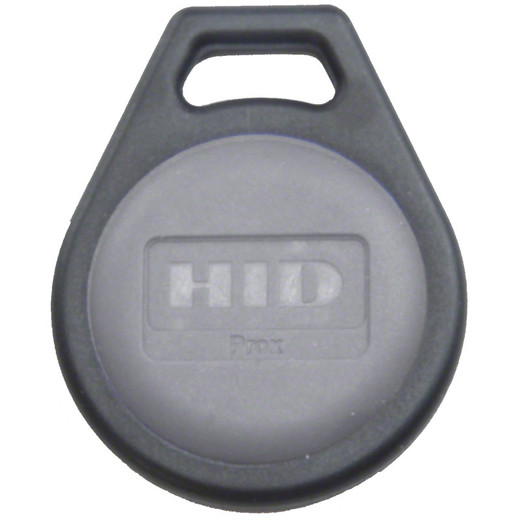

HID 1346-LNSMN ProxKey III Proximity Keyfob

The HID 1346-LNSMN ProxKey III is a compact, proximity-based authentication credential designed for enterprise-grade access control deployments. This pocket-sized keyfob delivers contactless authentication across multi-facility environments while maintaining full compatibility with existing HID proximity reader infrastructure. The 1346-LNSMN is particularly suited for organizations requiring portable, durable credentials without the need for photo identification or battery-dependent operation.

Overview

The ProxKey III keyfob integrates HID proximity technology into a portable form factor optimized for key ring attachment. Built with ultrasonically welded ABS shell construction and TPE insert material, the credential withstands demanding operational environments including outdoor access points and high-traffic facility zones. The passive proximity design eliminates battery maintenance while providing consistent read range performance across HID's complete reader portfolio. Maximum read ranges vary by reader model: ProxPoint Plus readers support up to 1.5 inches, MiniProx and ThinLine II readers up to 2 inches, ProxPro up to 3 inches, ProxProIII up to 4 inches, Prox80 up to 2 inches, and MaxiProx readers extend to 12 inches maximum. Read range is dependent on local installation conditions.

Key Features

• Ultrasonically welded ABS shell with TPE insert construction for durability and weather resistance
• Pocket-size form factor (1.555 x 1.25 x 0.235 inches maximum) with integrated key ring attachment point
• Universal compatibility with all HID proximity card readers across the entire product line
• Supports proximity formats up to 85 bits, providing over 137 billion unique codes for large-scale deployments
• Passive proximity technology—no battery, no maintenance, no power requirements
• External number identification for credential tracking and administrative control
• Programmed using HID's ProxProgrammer, enabling vendor inventory management and overnight delivery capability
• Lifetime warranty covering materials and workmanship

Integration & Compatibility

The 1346-LNSMN integrates seamlessly into existing HID proximity infrastructure without requiring reader upgrades or system modifications. The credential operates with ProxPoint Plus, MiniProx, ThinLine II, ProxPro, ProxProIII, Prox80, and MaxiProx reader systems. Organizations deploying multi-reader, multi-building access control systems benefit from standardized credential format and universal read compatibility. The 85-bit format capacity supports enterprise-scale user bases with room for role-based encoding, facility codes, and administrative extensions. Custom programming through ProxProgrammer enables credential vendors to pre-ship programmed keyfobs, reducing deployment timeline and enabling smaller order quantities.

Operational Considerations

The ProxKey III is suited for access control applications where photo identification is not required, such as server room access, data center authentication, office building entry, and campus-wide credential deployment. The pocket-size design ensures employees consistently carry their access credential, reducing lost-credential incidents compared to card-based systems. Passive operation eliminates the operational overhead of battery inventory, replacement cycles, and maintenance schedules—a significant administrative advantage in large-scale deployments spanning hundreds or thousands of credentials.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I've specified the HID 1346-LNSMN for three multi-facility access control upgrades over the past eighteen months. The keyfob form factor consistently outperforms card credentials in real-world deployments due to its portability and reduced loss rates. The 1346-LNSMN specifically delivers the compatibility and durability needed for mixed-environment access control—from climate-controlled offices to outdoor loading dock access points.

Technical Highlights:

• Format Capacity: 85-bit encoding with 137+ billion unique codes supports enterprise-scale user bases without credential reuse or format conflicts
• Read Range Flexibility: Performance scales from 1.5 inches (ProxPoint Plus) to 12 inches (MaxiProx), allowing reader selection based on facility-specific access requirements
• Passive Operation: No battery dependency eliminates credential failure modes and removes maintenance overhead entirely

Deployment Considerations:

• Verify existing reader compatibility before ordering bulk quantities—read range varies significantly by reader model, which impacts door positioning and reader mounting height requirements
• Custom programming through ProxProgrammer allows vendors to manage inventory and reduce lead time, but validate with your credential supplier regarding programming capabilities and turnaround
• The keyfob's durability is asset-class, but establish clear credential control and deactivation procedures for the inevitable lost or stolen units in large deployments

The 1346-LNSMN is a solid choice for organizations with installed HID reader bases that need reliable, maintenance-free, portable credentials at scale. The lifetime warranty provides long-term cost predictability, and the passive design removes a common failure point from your access control operations.
