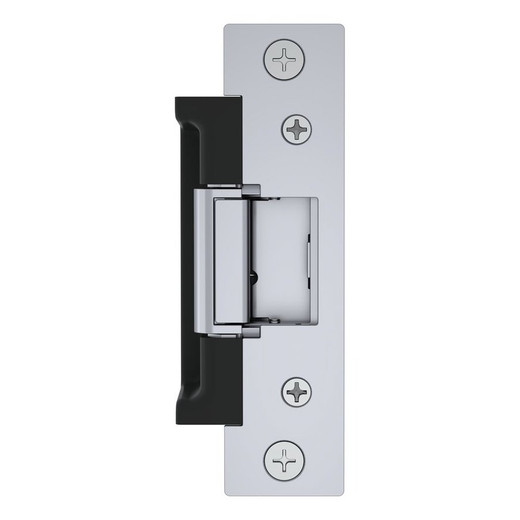

HES SB:V3-12V 12V Fail-Secure Electric Strike Body
The HES SB:V3-12V is a fail-secure electric strike body engineered for Vista-based access control deployments requiring predictable locking behavior during power loss. Rated at 12V DC with a 0.20A current draw, this strike is designed for standard door frame installations in commercial buildings, data centers, and secured entry points where electromagnetic locking must remain engaged when power is interrupted. Pre-terminated 6-inch leads and straightforward field wiring reduce integration time and cost for access control technicians.
Key Features
- Fail-Secure Design: Maintains locked status during power loss or system fault, eliminating the need for auxiliary batteries or UPS backup on individual strike circuits.
- 12V DC Power: 0.20A current draw. Operates from standard 12V control loops or distributed DC power supplies common in Vista access control cabinets.
- Pre-Terminated 6-Inch Leads: Factory-wired connections eliminate field crimping and reduce installation labor. Standard gauge and length for most door frame routing.
- Vista System Compatibility: Integrates directly with Vista-based access control platforms for centralized credential and locking policy management.
- V3 Series Standard Frame Mount: Compatible with HES 9800 and Adams Rite 7800 door frame preparations. No frame modification required.
- Electromagnetic Locking Mechanism: Proven solenoid design delivers consistent holding force across temperature and voltage variation typical in commercial HVAC environments.
The SB:V3-12V operates within Vista-integrated access control workflows. When a cardholder presents valid credentials, the access control panel energizes the strike coil for a programmable duration (typically 1–3 seconds), allowing the door to open. When power is removed or a system shutdown occurs, the strike returns to locked state immediately — no manual intervention required. This behavior is especially critical for spaces where unauthorized entry during system maintenance or power events poses a risk: server rooms, evidence storage, narcotics cabinets, and executive offices.
Installation assumes standard commercial door frame prep (HES 9800 or Adams Rite 7800 cutout). The pre-terminated leads route to a Vista-compatible relay module or strike driver in the access control cabinet. Most integrators run the 6-inch leads into the door frame cavity, then bundle them with the door sensor and push-to-exit button wiring for a clean, code-compliant final installation. Current draw (0.20A at 12V = 2.4W) is minimal, allowing multiple strikes to share a single 12V regulation circuit if the cabinet power supply is properly sized.
The strike body itself requires no periodic maintenance beyond visual inspection for corrosion or debris in the latch pocket. Fail-secure behavior is not dependent on moving parts or return springs — it is the default electromagnetic state, meaning reliability is high and troubleshooting is straightforward: energize the coil and measure door release, or disconnect power and confirm the door locks immediately.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of HES V3 strikes across Vista sites ranging from small office suites to multi-building campuses, and the SB:V3-12V remains one of the most reliable and trouble-free electric strike bodies in the market. Its greatest asset is simplicity: fail-secure by default, no complex solenoid tuning, and no surprise power-loss failures. On a typical 50-door Vista deployment, you eliminate one entire class of support tickets — "the door unlocked itself when power went out" — because the physics simply do not allow it. The 0.20A draw is negligible, meaning even if an integrator miscalculates the cabinet power budget, this strike almost never becomes the limiting factor. Pre-terminated leads are a small convenience that compounds over dozens of installations: no crimping, no length guessing, just plug-and-wire into the frame cavity. Against this, the real limitation is form factor exclusivity. The SB:V3-12V is not a universal strike; it requires HES 9800 or Adams Rite 7800 frame preparation. If a site has been built with different frame hardware (Schlage, Yale, or older Adams Rite 8800), this strike will not fit, and you'll need a different model. Site survey and frame type confirmation before ordering is non-negotiable. Also, fail-secure operation is a feature, not a bug, but it does mean the door will always lock when unpowered — if the site design calls for fail-open behavior (emergency egress override), this is the wrong strike entirely.
Technical Highlights:
- 12V DC, 0.20A Draw: Minimal power footprint allows consolidation of multiple strikes on a single 12V regulation circuit. A typical Vista cabinet with a 5A 12V supply can support 20+ of these strikes without concern, freeing cabinet resources for other devices.
- Fail-Secure Solenoid Design: No return spring, no moving latch — the electromagnetic coil is the only active component. When powered, it retracts the bolt. When de-energized, spring-loaded internal mechanics lock it shut. This redundancy is why we recommend these for high-security zones.
- Pre-Terminated 6-Inch Leads: Factory termination at the strike eliminates field-side error. Gauge and insulation are already selected for 12V DC service. Lead routing to the frame edge is simple and reduces on-site splicing.
- HES 9800 / Adams Rite 7800 Compatibility: These are the two most common commercial frame preps in office and institutional buildings. Compatibility out of the box means zero frame modification.
- Vista System Integration: Direct relay control from Vista — no intermediate gateway, no API translation. The strike energizes or de-energizes on Vista command, with no latency or logic layer.
Deployment Considerations:
- Confirm door frame hardware before order. If the frame cutout is not HES 9800 or Adams Rite 7800, this strike will not mount. Request door schedule or frame documentation from the general contractor or facilities team.
- Fail-secure is the default. If any door must fail-open (emergency egress, fire exit), do not use this strike. Pair fail-open requirements with a different product or a series with a power-release solenoid.
- 12V power supply sizing is easy — 0.20A is trivial — but confirm the cabinet regulation is clean. Noisy or sagging 12V rails can cause chatter or sluggish strike operation. Measure DC voltage at the strike terminals under load.
- 6-inch leads are fixed length. If the control relay is more than 6 feet from the door frame, budget for field splice and extension. Use stranded 18 AWG or heavier to minimize voltage drop over long runs.
- Strike body mounting surface must be clean and flat. Door frame prep tolerances on commercial doors are typically ±1/16", which is acceptable. Verify the frame is square before bolting the strike in place.
The SB:V3-12V is the right choice for Vista-based access control projects where standard commercial door frames are already in place and fail-secure operation is the security requirement. It is not the right choice if the frame hardware is non-standard or if fail-open behavior is mandated. For integrators building out multi-site Vista deployments, standardizing on this strike across compatible frame types simplifies spare inventory and training. See the HES catalog for the full range of strike and door hardware solutions.
