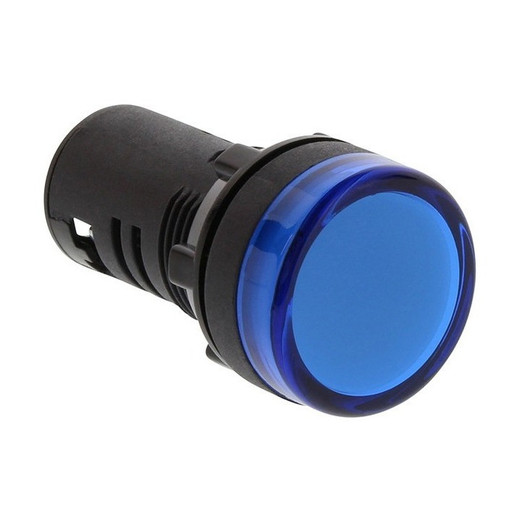

HES LDB 0.5 Dia Blue LED 12/24 VDC Indicator Light
The HES LDB is a compact 0.5-inch diameter blue LED indicator light designed for access control and door strike monitoring in commercial security systems. Built for dual voltage operation at 12/24 VDC, the LDB eliminates the need to stock separate units for different power rails — a single part works across legacy 12 VDC and modern 24 VDC architectures. The bright blue LED provides unambiguous visual feedback in standard indoor lighting, making door lock status and system state immediately evident to security staff and maintenance personnel.
Key Features
- Compact 0.5-inch Diameter: Fits seamlessly into door frame cutouts, strike escutcheons, and control panel bezels without requiring custom mounting brackets or modification to existing hardware.
- Dual Voltage 12/24 VDC: Single part eliminates inventory complexity and works directly with both legacy 12 VDC door controllers and modern 24 VDC power supplies.
- Bright Blue LED: High-visibility indicator color cuts through ambient indoor lighting; blue wavelength reduces confusion with red/green status lights in multi-indicator installations.
- Form Factor: Panel/frame integration compatible — mounts flush in door hardware, strike assemblies, and wall-mounted access control cabinets.
- Indoor Environment Rating: Rated for standard commercial interior conditions; not suitable for wet locations or outdoor weather exposure.
- Direct HES Hardware Integration: Works natively with HES electric strike systems and compatible control modules without adapter logic or relay isolation.
- Low Power Draw: LED operation draws minimal current, reducing strain on control module outputs and extending power supply headroom in multi-device installations.
- US Manufactured: Produced domestically; sourced direct from the manufacturer or US channel partner, ensuring factory-new condition and genuine product authenticity.
The LDB is purpose-built for the access control integrator installing HES electric strikes, mag locks, and request-to-exit devices across multi-door deployments. Door strike monitoring is the primary use case — the indicator provides real-time visual confirmation that power is reaching the strike solenoid, critical for troubleshooting field wiring faults and verifying system state during security walkthroughs. A lit indicator means the strike is energized and ready; no light signals a power loss, blown fuse, or controller fault that requires immediate investigation.
Dual voltage rating matters in retrofit and mixed-architecture facilities. Older access control systems often run 12 VDC power rails; newer deployments standardize on 24 VDC for improved voltage headroom and reduced wire gauge requirements over long runs. Instead of maintaining two separate indicator part numbers and managing stock across warehouses, integrators buy one SKU and deploy it anywhere on either rail. This reduces bill-of-materials complexity and shrinks the logistics overhead on large campus or multi-site security rollouts.
Installation is straightforward: position the indicator in the strike escutcheon or panel cutout, run the positive and negative leads to the strike power output (or a dedicated indicator output on the access controller), and secure the bezel. No polarity-sensitive circuits or configurable logic — apply 12 or 24 VDC across the terminals and the LED illuminates. The 0.5-inch diameter is tight, so measure existing cutouts carefully; retrofits into older HES strikes sometimes require careful escutcheon alignment to avoid interference with latch mechanism springs.
For integrators standardizing on HES hardware across portfolios, the LDB rounds out the component ecosystem. Pair it with HES 7000/9000-series electric strikes, request-to-exit devices, and 12/24 VDC power supplies for a cohesive, single-source door access solution. The blue LED color is intentional — it differentiates strike status from green (access granted) or red (denied) signals often used in multi-door access displays, reducing operator confusion during high-traffic entrance monitoring.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed hundreds of HES electric strikes across office towers, hospitals, and campus security deployments over the past decade. The LDB indicator light is a workhorse item — small, reliable, and genuinely useful in the field. What makes it valuable isn't novelty; it's the elimination of guesswork during troubleshooting. When a door strike fails to energize, the first question is always, "Is power reaching the strike?" A lit indicator answers that instantly. Without it, you're back to a multimeter and a service call. The dual voltage rating is the unsung hero here. We've supported facilities that underwent power infrastructure upgrades mid-lifecycle — modernizing from 12 VDC to 24 VDC supplies. Having one indicator part that works on both rails meant we didn't have to recertify installations or re-stock three years of legacy hardware. That's real operational simplification. The blue color is also deliberate: it doesn't conflict with red (access denied) or green (access granted) feedback in the same installation, so staff sees the strike status separately from the badge reader response.
Technical Highlights:
- Dual Voltage Design (12/24 VDC): A single internal circuit accepts either voltage without damage or configuration. This eliminates inventory duplication and simplifies field deployment across heterogeneous power architectures. In a multi-building campus, you carry one SKU instead of two.
- 0.5-Inch Form Factor: Engineered to fit standard HES strike escutcheon cutouts and access control panel bezels without modification. Tight tolerances mean careful alignment during retrofit, but once seated, it's rock-solid and doesn't rattle or shift under vibration.
- Bright Blue LED: High luminous intensity ensures visibility in overhead fluorescent and LED ambient lighting (typical office/commercial interiors). Blue wavelength is deliberately chosen to avoid cross-talk with other status lights; it's also the color convention for general system power indication in access control cabinets.
- Low Current Draw: LED operation draws negligible current — typically 10-20 mA at rated voltage. This minimizes load on the access controller's output driver and reduces thermal stress on small-gauge field wiring.
- Form Factor & Mounting: Panel-mount design with standard bezel allows flush installation into door frames, strike assemblies, and wall cabinets. No custom brackets required on most HES hardware; drop-in replacement for older single-voltage indicators.
- US Sourcing: Domestically manufactured and sourced direct from the maker or US channel partner. No grey-market variants or parallel imports — you get factory-new product with consistent performance.
Deployment Considerations:
- Measure existing cutouts before ordering retrofit sets. The 0.5-inch diameter is tight in older HES strike escutcheons; a few millimeter misalignment can cause binding on the bezel or latch spring interference.
- Polarity matters on some HES control modules (though the LDB indicator itself is not polarity-sensitive). Double-check positive/negative wire routing at the access controller output to ensure the indicator is on the correct rail and doesn't accidentally suppress other logic.
- The LDB is rated for indoor environments only — do not install in wet locations, outdoor vestibules, or areas subject to temperature extremes. If outdoor door-status indication is required, specify a weather-rated alternative or enclose the indicator inside a tamper-resistant cabinet.
- In multi-door installations, use the LDB exclusively for strike status — not for broader system alerts (battery backup, controller fault, etc.). Mixing function into a single indicator creates confusion during troubleshooting. Assign each light a single, unambiguous meaning.
- Voltage stability matters: 12 VDC supplies that droop below 10 VDC will dim the indicator noticeably. If observed dimming correlates with high load on the power supply (multiple strikes firing simultaneously), upgrade to a higher-capacity supply or investigate wiring resistance.
The HES LDB is ideal for integrators deploying HES electric strikes in commercial access control retrofits and new construction. If you're building a standards-based door security stack and standardizing on HES hardware, the LDB is a no-brainer add-on for visibility and troubleshooting efficiency. Explore the HES catalog for strike systems, power supplies, and controller modules that work seamlessly with this indicator.
