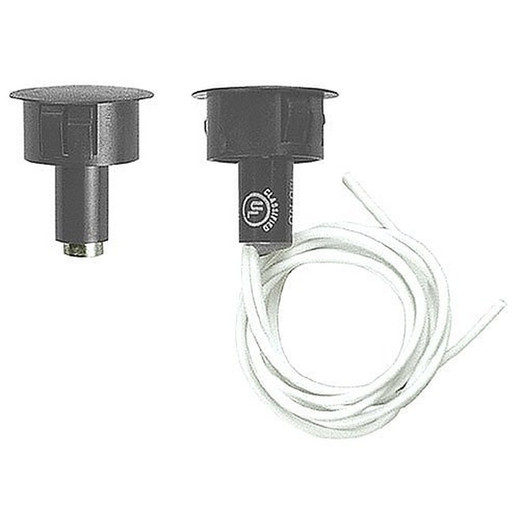

HES DPS-W-GY Door Position Switch for Wood Doors
The DPS-W-GY (often searched as DPS W GY) is a purpose-built door position sensor engineered specifically for wood door installations in access control and security management environments. Unlike generic magnetic switches, this sensor is optimized for wood door mounting and delivers real-time open/closed status reporting to HES access control systems and industry-standard security platforms that accept door sensor inputs. If your facility relies on continuous awareness of door position for audit trails, emergency response coordination, or access rule enforcement, this switch bridges the gap between physical door state and your security ecosystem without requiring structural modification to the door itself.
Key Features
- Purpose-built for wood door compatibility: Engineered specifically for wood substrates — the mounting bracket and sensor housing account for wood door tolerances and material properties, reducing false triggers and alignment drift compared to generic industrial switches.
- Real-time door position monitoring: Instantaneous open/closed detection means your access control system knows door state immediately, eliminating blind spots in your audit trail and enabling automated responses (alarm triggers, badge denial at specific doors, etc.).
- Surface-mount or frame-mount installation: Two deployment options give you flexibility — surface-mount onto the door face or frame for retrofits, or frame-mount for new construction. Both avoid drilling into the door itself.
- Non-invasive installation: No door modification required. This matters on leased premises or where door integrity is a compliance concern (fire-rated doors, acoustic seals, etc.).
- Gray finish (GY designation): Discrete gray cosmetics blend into standard office and commercial interiors, minimizing visual clutter on door frames.
- HES ecosystem integration: Direct compatibility with HES access control platforms eliminates third-party gateway dependencies and simplifies wiring, provisioning, and status reporting within a unified control panel.
Integration and Compatibility
The DPS-W-GY integrates with HES access control systems and any third-party security platform that accepts standard door sensor inputs (typically dry contact or supervised circuit protocols). Verify your access control panel supports door sensor inputs and confirm wiring protocols (supervised vs. unsupervised) before deployment. When integrated with HES systems, door events (open/close times, duration, anomalies) flow directly into your access logs and can trigger conditional rules — for example, denying badge access to a specific door if it remains open beyond a threshold.
Why Choose the DPS-W-GY
Choose this model if you are deploying or retrofitting wood door infrastructure in corporate offices, educational facilities, or commercial spaces where real-time door position awareness is mandatory and you want a sensor optimized for wood rather than a metal-door-focused design. The wood-specific engineering reduces nuisance alarms and mounting headaches. If your doors are primarily metal or glass, or if you require wireless transmission rather than hardwired sensor input, consider alternative form factors from the HES product family.
When to Choose a Different Model
If you need wireless door sensors (no wiring required), look for battery-powered wireless alternatives in the HES catalog. If your doors are predominantly metal or glass, HES offers sensor variants optimized for those substrates. If you require integration with a third-party video management system rather than HES access control, verify that system's door sensor input specifications before committing to this model.
Frequently Asked Questions
Q: Does the DPS-W-GY work with non-HES access control panels?
A: Yes. The DPS-W-GY is compatible with any access control system or security platform that accepts standard door sensor inputs. Confirm your panel's wiring protocol (dry contact, supervised circuit, etc.) before installation.
Q: Can I install the DPS-W-GY on metal or glass doors?
A: This sensor is optimized for wood door applications. For metal or glass doors, consult the HES product family for alternative sensor designs better suited to those materials.
Q: Does installation require drilling or permanent modification to the door?
A: No. Both surface-mount and frame-mount configurations avoid structural modification to the door itself, making it suitable for leased spaces and fire-rated applications.
Q: What is the typical wiring distance for the DPS-W-GY?
A: Wiring distance depends on your access control panel's sensor input specifications. Consult your panel documentation for maximum recommended cable runs (typically 50–100 feet for unsupervised circuits).
Q: Can the DPS-W-GY be used in high-traffic or emergency egress doors?
A: Yes, the sensor monitors position without impeding door operation. However, verify that the mounting location does not interfere with panic hardware, door closers, or accessibility hardware.
Q: What finish options are available?
A: The DPS-W-GY is available in gray (GY) finish. Check the HES product family for alternative finishes if needed.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DPS-W-GY is a straightforward, reliable sensor for wood door position monitoring in access control deployments. I recommend this model when you're standardizing door sensors across a facility with predominantly wood door infrastructure and your access control platform has native door sensor input support. The wood-specific design eliminates the frustration of mounting a generic metal-door sensor and tuning it repeatedly for wood door tolerances.
Technical Highlights:
- Surface-mount and frame-mount flexibility: Two installation paths reduce site-specific obstacles. Surface-mount works for retrofits where you cannot access the frame; frame-mount is cleaner for new construction and less visible on the door face.
- Non-invasive design: No drilling, no door modification. This is not just a convenience — it preserves door integrity for fire-rated applications and avoids lease violations on commercial spaces.
- HES ecosystem integration: Direct wiring to HES panels eliminates third-party gateways. Door events (open duration, time of open, alarm state) appear natively in your access log and can trigger conditional rules without middleware.
Deployment Considerations:
- Wood door verification: Confirm all target doors are wood or wood-composite. Metal doors require different sensor designs to avoid alignment issues and false triggers.
- Wiring protocol alignment: Verify your access control panel's door sensor input type (supervised, unsupervised, discrete input card) before specifying cable routes and power budget. Mismatched protocols cause intermittent status reporting.
Deploy the DPS-W-GY across office suites, educational facilities, or corporate headquarters where continuous door position reporting is required and you want a sensor optimized for the actual door material rather than a one-size-fits-all generic switch. In these environments, the wood-specific engineering pays for itself through faster commissioning and fewer false alarms.
