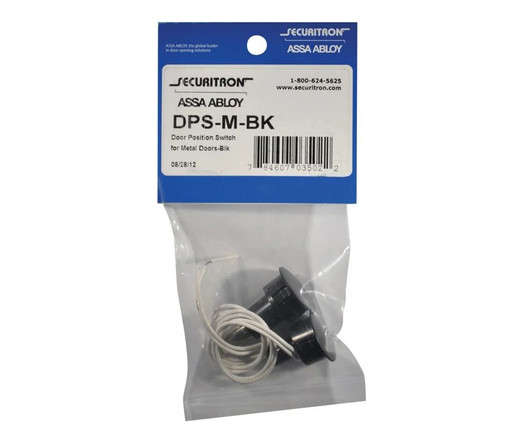

HES DPS-M-BK Magnetic Door Position Switch for Metal Doors
The DPS-M-BK is a magnetic contact door position switch engineered specifically for metal door installations in commercial access control and alarm systems. This device monitors door open/close status in real time, reporting events immediately to your access control or alarm platform so you know precisely when doors are accessed. Black finish allows discrete mounting on standard metal door frames and leaves — important when you need monitoring without visible hardware drawing attention.
Key Features
- Magnetic contact technology: Reed switch design has no moving mechanical parts to wear out. In high-traffic areas, this means lower maintenance overhead and consistent, reliable detection over years of operation compared to mechanical plunger switches that can stick or degrade.
- Dry contact output: Wired terminals deliver simple, voltage-free contact closure to your access control panel or alarm receiver. This keeps the sensor independent of platform voltage variations and simplifies integration into mixed third-party systems.
- Real-time door status reporting: Event detection and transmission happen instantly — no polling delays. Critical for security workflows where delayed alarms create gaps in audit trails or response time.
- Black finish for metal doors: The matte black housing blends into standard steel or aluminum door frames, making it a practical choice where aesthetics or low visibility matter (office buildings, healthcare, corporate campuses).
- HES electric strike compatibility: Integrates directly into HES strike systems for coordinated door control and monitoring. Pairs the strike's locking action with real-time position feedback, so your system knows not just that the door was unlocked, but whether it actually opened.
- Third-party access control platform support: Standard dry contact interface works with any platform that accepts discrete sensor input — Milestone, Genetec, Salto, Kaba, and hundreds of others. No proprietary decoder or gateway required; the sensor is platform-agnostic.
Integration and Compatibility
The DPS-M-BK (often searched as DPS M BK) connects via two wired terminals to any access control system, intrusion alarm panel, or security management software with a dry contact input. This simplicity is both a strength and a boundary: you get universal compatibility, but you are responsible for wiring and panel configuration. Typical installation pairs the switch with a HES electric strike on the door leaf, with the magnet mounted on the frame — standard reed switch separation is critical, so verify mounting distance before commissioning. The device is indoor-rated; it is not sealed for exterior exposure or high moisture environments. If you need outdoor door monitoring, consider a sealed or IP67-rated variant instead.
Common Deployment Scenarios
- Office and corporate buildings: Monitor conference room, server closet, and executive suite doors for after-hours access events. The black finish is unobtrusive and the dry contact plays well with any building management or security integration.
- Educational institutions: Pair with electric strikes on dormitory, lab, and storage areas. Real-time reporting supports both access control audit logs and emergency response workflows.
- Industrial and warehouse: Deploy on secure gate rooms, chemical storage, and equipment access points. Magnetic contacts tolerate vibration and temperature swings better than mechanical alternatives.
- Healthcare and secure medical areas: Support controlled access on secure wards, medication rooms, and medical records storage. Dry contact output integrates with any hospital access control or nurse call system without custom firmware.
- Government and institutional security: Retrofit existing metal door frames in secure facilities. The simplicity of dry contact wiring reduces cybersecurity attack surface compared to networked sensors — a meaningful advantage in classified or high-assurance environments.
Why Magnetic Contacts Over Mechanical Switches
A magnetic reed switch is sealed and has zero moving parts exposed to the environment. This eliminates the wear cycles and debris accumulation that plague mechanical plunger switches in high-traffic doors. You will not need to adjust spring tension or replace worn contacts. The tradeoff is rigidity: you must maintain proper magnet-to-reed distance during installation. If the magnet drifts away from the reed (poor mounting, door settling, frame movement), the switch becomes unreliable. Confirm alignment before final commissioning and periodically inspect mounting hardware in institutional deployments.
What's in the Box
Exact contents not specified in available evidence. Contact the manufacturer or your specialty distributor for a complete bill of materials and mounting template details before placing an order.
Frequently Asked Questions
Q: Does the DPS-M-BK work with any access control system?
A: Yes. The dry contact output is platform-agnostic. Any system with a standard dry contact input (access control panel, alarm receiver, security management software) will accept the sensor's open/close signal without requiring custom drivers or gateways.
Q: What is the typical wiring run for the DPS-M-BK?
A: Standard two-conductor wire from the switch terminals to your control panel. No power supply or data cable needed. Run length depends on your system's input impedance and wire gauge — consult your panel documentation. Shielded twisted pair is recommended in high-EMI environments (proximity to high-current equipment or radio transmitters).
Q: Can the DPS-M-BK be mounted on wood or composite doors?
A: The product is engineered for metal doors. Wood and composite doors present magnetic interference and different fastening considerations. Consult the manufacturer before retrofitting to non-metal applications.
Q: Is the DPS-M-BK rated for outdoor use?
A: No. The device is designed for indoor metal door deployments. If outdoor monitoring is required, specify an outdoor-rated or sealed variant from the HES family instead.
Q: What maintenance does the DPS-M-BK require?
A: Magnetic contact switches are maintenance-free in normal use. Periodically verify that the magnet and reed are properly aligned (no drift due to frame movement or vibration). No lubrication, adjustment, or parts replacement is needed unless physical damage occurs.
Q: Does the DPS-M-BK integrate with Milestone or Genetec?
A: The dry contact output can be wired to any third-party VMS or access control platform via a dry contact input module. No native plugin is required; the sensor is platform-transparent. Your integrator will handle the wiring and event configuration.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DPS-M-BK is a deliberately simple tool — dry contact magnetic switch with no electronics, no software, no cybersecurity surface to worry about. That simplicity is exactly why it belongs in high-assurance access control deployments. If your integrator is specifying a networked door sensor, ask them first whether you really need network overhead, firmware updates, and potential IP vulnerabilities on a door that just needs to report open or closed. For metal door retrofit projects and existing HES strike installations, the DPS-M-BK is the fastest, lowest-risk integration path.
Technical Highlights:
- Reed switch architecture: No moving parts to wear out or adjust. In high-traffic doors (office main entrances, healthcare secure wards), this eliminates the sticky plunger and spring-tension failures that plague mechanical switches after 2–3 years of heavy use.
- Dry contact output: Two-wire terminal interface is voltage-independent and platform-transparent. No proprietary gateway, no IP stack, no firmware — wires directly to any panel with a discrete input. Reduces deployment risk in mixed or legacy environments.
- Black finish for metal frame integration: Matte black housing is a practical aesthetic choice; the finish also reduces glint and makes the switch less obvious to casual observers — a small but real security benefit in corporate and healthcare settings.
Deployment Considerations:
- Magnet-to-reed distance is critical. Verify alignment before final commissioning and inspect periodically in doors that settle or vibrate. A drifted magnet will cause false alarms or missed events.
- Wire runs in high-EMI environments (industrial machinery, radio transmitters, high-current feeders) need shielded twisted pair to prevent pickup noise on the contact circuit — unshielded runs can cause phantom signals in noisy factories.
- The device is indoor-only. Metal doors in outdoor vestibules, parking garage gates, or marine environments need a sealed or IP-rated variant; don't force an indoor switch into wet salt air or frequent freeze-thaw cycles.
Best fit: retrofit projects on existing metal door frames where you already have an HES strike or a dry contact input available, and where you want to avoid the complexity of networked sensors. Overkill for single doors; ideal for campus-wide or multi-facility deployments where standardization and zero-maintenance operation matter more than fancy analytics.
