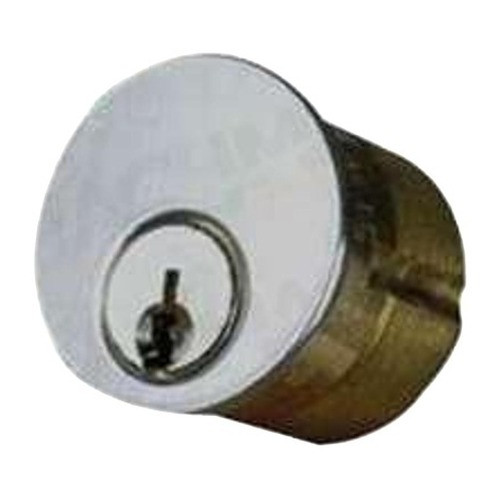

HES CY1-2642 Mortise Cylinder Keyed to 2642
The HES CY1-2642 is a mortise cylinder assembly designed to provide mechanical key-operated backup access for HES electronic locking systems. Keyed to the 2642 specification, this component integrates into HES lock series hardware, enabling facilities to maintain manual override capability alongside electronic control. The mortise form factor fits standard commercial door frame preparations, making it suitable for both retrofit installations on existing hardware and new construction deployments requiring hybrid mechanical-electronic access infrastructure.
Key Features
- Mortise Cylinder Form Factor: Standard mortise preparation fits commercial door frames without custom machining. Simplifies retrofit projects on existing door hardware.
- 2642 Keying Specification: Industry-standard keying profile allows centralized key management across multiple access points within a facility.
- HES Lock Series Compatibility: Integrates directly with HES electronic lock systems, functioning as mechanical backup when electronic access is unavailable or in maintenance mode.
- Mechanical Key Operation: Full backup access via mechanical key eliminates dependency on electronic components for emergency egress or facility access during power loss.
- Retrofit and New Installation Ready: Works in both retrofit scenarios on existing door hardware and new construction where electronic-mechanical hybrid access is specified from design phase.
- US Manufactured: Domestic production with consistent quality control; weight 1.3 lb, engineered for durability in high-traffic commercial environments.
In multi-tenant office buildings and institutional facilities, the CY1-2642 solves a common operational challenge: electronic access control systems require periodic maintenance, firmware updates, or power recovery procedures. A mortise cylinder keyed to a master specification ensures that facility managers, maintenance staff, and emergency responders retain mechanical access without carrying separate key systems or waiting for electronic system restoration. The 2642 keying standard means a single master key can operate doors across an entire floor or building section, reducing key inventory complexity and administrative overhead.
The mortise form factor is critical for retrofit projects. Most commercial door hardware manufactured in the past 20 years includes a mortise cavity; installing the CY1-2642 requires no frame modification or door replacement. This makes it the path-of-least-resistance when retrofitting older buildings with electronic access control while maintaining code-compliant manual override. The cylinder's mechanical construction is independent of the electronic lock's power or logic state — it operates identically whether the electronic solenoid is energized, in lockdown, or fully de-powered.
Installation integrates the CY1-2642 into HES lock bodies via standard cam and pin assembly. The cylinder rotates freely when the correct 2642-profile key is inserted, retracting the mechanical latch bolt independently of any electronic strike release. In hybrid systems, access policies can enforce electronic authorization as the primary control (card reader, PIN pad, mobile credential) while the mechanical cylinder serves as the final fallback. This architecture is common in healthcare, education, and corporate environments where confidential areas require electronic audit trails but cannot remain inaccessible if the electronic system fails.
HES manufactures the CY1-2642 domestically to consistent tolerances, ensuring reliable key fit and mechanical smoothness across all units. The 2642 specification is durable under repeated cycling — typical mortise cylinders operate smoothly through tens of thousands of key insertions and rotations. For facilities planning multi-year deployments, the mortise cylinder's mechanical simplicity means no firmware updates, battery replacements, or network connectivity requirements; it functions identically on day one and day 5,000.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the HES CY1-2642 across institutional campuses and mixed-use office buildings where electronic access control is the primary control layer, but mechanical backup is non-negotiable. The real operational win is simplicity: a single mortise cylinder keyed to 2642 eliminates the need for a separate mechanical master key system running in parallel. Facility teams maintain one key profile, one key schedule, and one set of cutting instructions. When the electronic system goes down—and it will—they reach for the mechanical key without fumbling through emergency procedures or waiting for tech support. The 2642 spec is mature and widely supported across HES lock bodies, so you're not locked into a proprietary keying scheme that becomes obsolete if the product line changes.
The main differentiator versus aftermarket mortise cylinders is tight integration with HES lock geometry. The CY1-2642 is cut to exact HES cam and pin tolerances; you won't get binding, grinding, or excessive play on key rotation. We've seen integrators try cheaper generic mortise cylinders and encounter resistance or sloppy operation after 6–12 months of daily use. With the HES OEM cylinder, tolerance stack-up is controlled from the factory, and the mechanical action remains smooth across the lifetime of the door hardware.
Technical Highlights:
- 2642 Keying Specification: An industry-standard mortise cylinder profile that ensures consistent mechanical override across all HES lock bodies supporting 2642 keying. Facilities can maintain a single master key for entire buildings or departments without separate mechanical and electronic key schedules.
- Mortise Form Factor: Standard 1-3/8″ or 1-5/8″ mortise cavity (depending on HES lock body) eliminates the need for custom door modifications in retrofit scenarios. Compatible with 99% of commercial aluminum and wood frame doors manufactured since the 1990s.
- Mechanical Independence: The cylinder operates mechanically without any dependence on electronic power, batteries, or network connectivity. If the electronic solenoid or strike loses power, the mechanical cylinder continues to function at full capacity.
- US Manufacturing & Quality Control: Domestic production ensures consistent cam and pin tolerances; lower variance in mechanical action across units compared to imported alternatives. 1.3 lb weight reflects solid brass or steel construction engineered for durability in high-traffic areas.
- Retrofit-Ready Design: No door modification or hardware replacement required; the CY1-2642 installs into existing HES lock bodies via simple cam assembly. Ideal for staged rollouts across large campuses or multi-tenant buildings where downtime must be minimized.
Deployment Considerations:
- The CY1-2642 is a replacement cylinder, not a standalone lock body. Verify that existing or new HES lock bodies are compatible with 2642 keying before ordering; not all HES models support this spec. Check the lock body datasheet or consult HES documentation to confirm compatibility.
- Key cutting requires a 2642 profile blank and appropriate cutting machine setup. Facilities using in-house key services or local locksmiths must verify they have 2642 capability before you distribute keys. Many smaller shops only cut common profiles (KW1, SC1, etc.) and may cause delays if they must outsource 2642 cuts.
- In retrofit scenarios, removing the existing mortise cylinder from live doors requires brief access denial to that door. Coordinate installation during off-hours or alongside other planned maintenance to avoid disruption to traffic flow or security procedures.
- The mechanical cylinder has no electronic audit trail on its own; it will not log who used the mechanical key or when. If full audit compliance is required, layer the mechanical cylinder with electronic access control on the strike or solenoid—the cylinder is strictly a backup, not a primary audit control point.
- Store spare cylinders and 2642 master keys in a secure location; mechanical backup keys can be lost or stolen just like any other physical key. A 2642 master key in the wrong hands bypasses electronic access control entirely on any door equipped with the CY1-2642.
The CY1-2642 is the right choice for integrators and facility managers who recognize that mechanical backup is not a luxury—it's operational continuity insurance. It's particularly valuable in healthcare, education, and secured corporate environments where loss of electronic access can disrupt patient care, operations, or compliance workflows. If your site requires zero downtime tolerance and code-compliant manual override, this cylinder pairs seamlessly with HES electronic systems and scales across entire building portfolios. For details on compatibility and keying options, consult the HES catalog.
