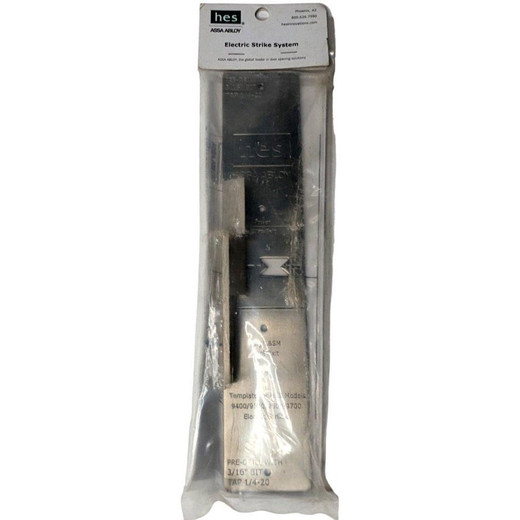

HES 9000-MTK Magnetic Template Kit for Electric Strikes

The 9000-MTK is a magnetic template accessory engineered to reduce installation time and eliminate alignment errors when deploying rim exit devices paired with HES electric strikes. For integrators managing multi-door commercial access control projects, this reusable magnetic guide directly addresses the labor cost and rework risk inherent in manual field layout and hole positioning.

Key Features

• Magnetic adhesion to steel frames: Tool-free mounting without permanent fasteners means you position the template, align your hardware, mark mounting holes, then remove it cleanly — no damage to the door frame and no installation residue to clean up.
• Precision alignment guides: Pre-etched reference marks for latchbolt positioning and strike mounting holes eliminate the guesswork of measuring from the top of the frame or calculating offsets by hand — a frequent source of retrofit callbacks.
• Reusable design across multi-door rollouts: One template works door after door, reducing your per-unit accessory cost when you're installing 10, 20, or 50 units in a single building. This pays for itself quickly on larger projects.
• Consistent strike-and-exit-device integration: Because the template enforces the same spatial relationship on every door, you avoid the variance that happens when installers hand-measure. Consistency is especially valuable in healthcare and institutional environments where audit trails and standardization matter.
• Durable magnetic material: The magnet is strong enough to hold the template steady during layout and marking, but not so aggressive that you struggle to remove it between doors — a practical detail that affects workflow speed on a long installation day.
• Compatible with HES 9400, 9500, 9600, and 9700 Series electric strikes: Ensures the template's drilling and alignment marks match the strike body geometry for these models, reducing the risk of mounting misalignment.

Integration & Compatibility

The 9000-MTK is engineered specifically for use with HES electric strike models 9400, 9500, 9600, and 9700 Series when paired with standard rim exit device hardware. Confirm your strike model before ordering to ensure the alignment guides match your hardware footprint. If you're integrating with access control systems, the template accelerates the physical installation phase but does not interact with the control logic itself — it is purely a mechanical installation aid.

When to Choose This Accessory

Deploy the 9000-MTK on retrofit or new-construction projects where you are installing multiple doors with the same strike model and exit device combination. It delivers measurable ROI on labor time when your crew is hanging 5 or more units. For single-door emergency repairs or one-off installations, the template's reusability advantage diminishes, though the alignment precision it provides still reduces rework risk. If your strike model is outside the 9400–9700 range, verify compatibility with the manufacturer before purchase.

Frequently Asked Questions

Q: Does the 9000-MTK work with electric strikes from other manufacturers?

A: No. The template is engineered specifically for HES 9400, 9500, 9600, and 9700 Series strikes. Using it with non-HES hardware or other HES series may result in misaligned holes and improper strike integration.

Q: Can I use the 9000-MTK on aluminum or composite door frames?

A: The magnetic adhesion requires a steel frame. Aluminum or composite frames will not hold the template securely. For non-steel frames, you may need to use alternative layout methods or contact the manufacturer for guidance.

Q: How many times can the template be reused?

A: The template is designed for repeated use across multiple installations. The magnetic material and etched guides do not degrade under normal field use, making it suitable for multi-door rollouts and ongoing maintenance work.

Q: Does the 9000-MTK include step-by-step installation instructions?

A: Yes, the template comes with clear positioning and marking guidance. However, you must still follow HES and exit device manufacturer specifications for strike depth, bolt alignment, and final hardware mounting.

Q: What if my door frame is too thick for the magnetic template to grip securely?

A: Ensure the frame steel is exposed (not covered by trim or weatherstripping) so the magnet can make direct contact. If frame thickness exceeds typical commercial steel door construction, test the adhesion force before committing to installation on all doors.

Jerry Tildsen

Perspective based on aggregated and affiliated engineering team experience.

The 9000-MTK magnetic template kit addresses a real workflow friction point: field layout and drilling on multi-door strike installations. On a 20-door retrofit, manual measurement and layout can introduce 2–4 hours of cumulative labor variance and increase the likelihood of rework on door frames where strike mounting holes are misaligned. The template's magnetic adhesion and pre-etched alignment guides collapse that variance substantially.

Technical Highlights:

• Magnetic mounting without fasteners: Eliminates frame damage and installation residue, meaning you can move the template between frames without leaving behind holes, adhesive, or stray fasteners. On retrofit work in occupied buildings, this is a significant cleanliness and professionalism factor.
• Precision-etched alignment guides for latchbolt and mounting holes: Removes manual measurement error — a common source of striker depth misalignment and exit device binding. On retrofit jobs, even a 3–5mm horizontal error in hole placement can require re-drilling and frame repair.
• Reusable across HES 9400–9700 Series: A single template covers four strike models with consistent geometry, making it cost-effective for integrators who manage mixed-model deployments or who reuse the same template across years of service calls and rollouts.

Deployment Considerations:

• The template requires direct steel frame contact — painted or wrapped frames may reduce magnetic grip, so inspect the frame surface before committing to installation. On some renovation projects, frames are covered with trim that must be removed or worked around.
• This is a strictly mechanical aid; it does not interact with access control logic or unlock sequencing. Pair it with standard HES installation procedures and exit device manufacturer specs for strike depth, bolt alignment, and final hardware mounting.

The 9000-MTK is a smart choice for integrators running multi-door commercial access control projects where consistency and labor efficiency directly impact project profitability. On a 10-door installation, the reusability and labor savings typically justify the accessory cost, and on a 50-door rollout across a large building, the template pays for itself many times over.
