HES 8000C-LBM Electric Strike with Latch Bolt Monitor
The HES 8000C-LBM is a complete electric strike assembly engineered for standard door frame installations in commercial and institutional environments. This integrated solution combines a robust strike mechanism with built-in latch bolt monitoring, providing real-time door position awareness and fail-secure operation in a single package. The 8000C-LBM eliminates the need for external door position sensors, streamlining both installation labor and system wiring complexity — a meaningful cost reduction on multi-door deployments.
Key Features
- Integrated Latch Bolt Monitoring: Real-time feedback on door bolt position without external sensors reduces wiring runs and point-of-failure risk. Critical for audit trails and emergency egress verification in controlled facilities.
- Fail-Secure Operation: Strike remains locked during power loss, ensuring compliance with security and life-safety codes in commercial offices, healthcare, and government buildings. Non-negotiable for high-traffic access control environments.
- Standard Strike Cutout Compatibility: Works with conventional door frame preparations, making retrofit retrofits feasible on existing installations without frame modification.
- Complete Strike Box Assembly: Integrated design — strike mechanism and monitor shipped as one unit — reduces on-site assembly time and integration headaches typical of modular systems.
- Access Control Platform Integration: Compatible with standard access control systems and security management platforms that support latch monitoring inputs. Verify your system's latch monitor input specification before purchase.
- Included Faceplate and Mounting Hardware: All necessary fasteners and alignment templates included, reducing material procurement delays on project rollouts.
Integration & Compatibility
The 8000C-LBM integrates with any access control panel or management system that accepts a dry-contact latch monitor input. Confirm your controller supports a dry-contact sensor loop (typically a normally-open or normally-closed contact closure) before specification. The strike operates with conventional door frames meeting standard cutout dimensions — verify frame thickness and door swing direction during design phase to avoid costly re-work.
Suitable for new construction and retrofit projects in multi-tenant office complexes, educational institutions, healthcare facilities requiring controlled access, and government buildings where door position audit trails are mandatory. The integrated design reduces ongoing maintenance points compared to separate strike and sensor installations.

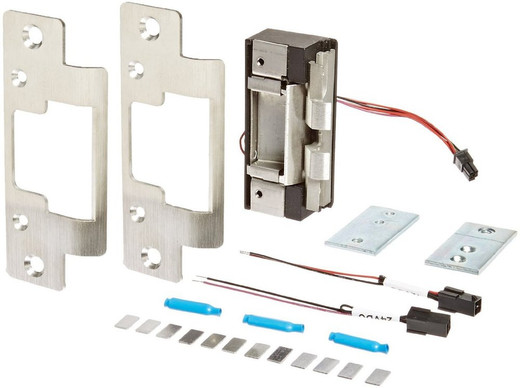

What's in the Box
- Complete strike box assembly with integrated latch monitor
- Faceplate
- Mounting hardware
Frequently Asked Questions
Q: Does the 8000C-LBM require external power, or does it draw power from the access control panel?
A: The 8000C-LBM is powered by the access control system's strike output. Confirm your panel's 12VDC or 24VDC strike output capacity and current rating before installation. Undersized power supplies are a common cause of intermittent strike operation.
Q: Can the 8000C-LBM be installed on both left-hand and right-hand swinging doors?
A: Verify door swing direction and frame configuration during the quotation phase. Some electric strikes are handed; confirm with the manufacturer's installation guide or your integrator before ordering.
Q: What happens to the latch monitor output if the strike solenoid fails?
A: The latch monitor provides bolt position feedback independent of solenoid operation. A solenoid failure will prevent the strike from retracting, but the monitor will still report bolt status to the access control system — useful for diagnostics and emergency troubleshooting.
Q: Is the 8000C-LBM suitable for outdoor applications or wet environments?
A: The 8000C-LBM is designed for indoor commercial and institutional installations. Outdoor or high-moisture environments require a rated weatherproof strike enclosure — consult your integrator for outdoor-rated alternatives.
Q: How is the latch monitor wired to the access control panel?
A: The latch monitor output is a dry-contact switch that reports bolt position to the panel's input terminal. Wiring is typically a two-conductor twisted pair from the strike's monitor terminals to a latch or zone input on your controller. Confirm your panel's input specification (normally-open vs. normally-closed, voltage-free contact) during design.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 8000C-LBM strips away the typical integration headache of pairing a separate electric strike with an external door position sensor. That integrated latch monitor saves real money on wiring labor and reduces potential failure points — especially on larger deployments where you're specifying dozens of doors. The fail-secure design is non-negotiable for any facility where doors must lock during a power event, and the standard strike cutout compatibility means you're not forcing frame modifications on retrofit jobs.
Technical Highlights:
- Integrated Latch Monitor: Eliminates separate sensor wiring and eliminates a potential point of failure. On a 50-door installation, this saves roughly 50–100 hours of labor and materials compared to external sensor strategies.
- Fail-Secure Operation: Strike remains engaged during power loss. Non-negotiable for life-safety compliance in healthcare, government, and high-security commercial settings.
- Standard Cutout Compatibility: Works with existing door frame preparations. No frame modification required on retrofit projects — a material and schedule win.
Deployment Considerations:
- Verify your access control panel supports a dry-contact latch monitor input before specifying. Older or entry-level systems sometimes lack this input; forcing retrofit wiring adds cost and complexity.
- Confirm door swing direction and frame thickness during design. Some electric strikes are handed — ordering the wrong configuration means material delay or re-spec.
- The 8000C-LBM is indoor-rated. Outdoor or high-moisture environments require weatherproof enclosures or alternative hardware.
Deploy the 8000C-LBM on new construction or retrofit projects where integrated latch feedback is required for audit compliance, emergency egress verification, or real-time access logging. It's the practical choice when you need door position awareness without sensor proliferation — particularly on mid-to-large projects where labor efficiency and reliability matter.
