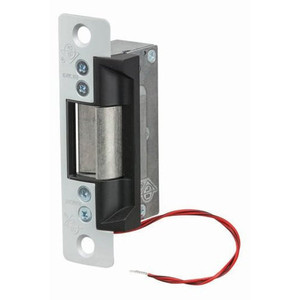

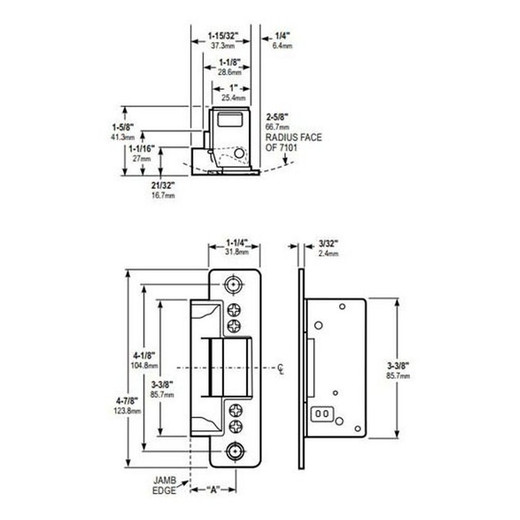

HES 7100-317-313-00 Electric Strike for Aluminum Jambs
The HES 7100-317-313-00 is a flat faceplate electric strike purpose-built for aluminum jamb door frames in commercial security installations. Unlike generic strikes, this model is engineered specifically to accommodate aluminum frame geometry, eliminating compatibility headaches during integration with access control systems. When paired with a badge reader or biometric controller, the 7100-317-313-00 delivers monitored fail-safe operation—meaning the strike energizes to unlock and de-energizes to lock, ensuring the door defaults to secure if power is interrupted or the system fails.
Key Features
- 12 volts DC operation: Operates on standard 12VDC supplied by most access control power supplies or dedicated strike power modules. No exotic voltage requirements simplify panel configuration and reduce spare-parts inventory.
- Monitored fail-safe design: Energize-to-unlock architecture means loss of power, controller fault, or cable break automatically locks the door—a critical safety feature for compliance with NFPA 101 (Life Safety Code) and ADA egress requirements.
- Flat faceplate form factor: Mounts flush to the aluminum jamb without protruding hardware. Reduces visual clutter and eliminates snag hazards on tight corridor installations.
- Aluminum jamb compatibility: Lip extensions accommodate aluminum frame depths up to 1-1/16 inch, covering nearly all standard commercial door frame profiles. Verify your door frame depth before ordering—over-depth applications require a different strike model.
- Dark bronze anodized finish: Anodized coating resists corrosion in humid or coastal environments and blends with modern commercial interiors. Durable finish means fewer maintenance cycles and longer service life than bare aluminum or painted alternatives.
- Continuous or intermittent duty cycle capability: Allows the strike to remain energized (continuous mode) for propped-door scenarios, or energize only on badge read (intermittent mode). Choose based on your access control logic and power budget.
Integration & Compatibility
The HES 7100-317-313-00 integrates with any access control system capable of delivering a monitored 12VDC output—this includes most major platforms from access control systems manufacturers. Pair it with a door strike module (relay or solenoid driver) wired through your access control panel. The monitored input should be connected to a door position sensor or supervised circuit to verify strike function and detect tampering or cable cuts. If your application requires electric strike installation guidance, consult your integrator or the HES technical documentation.
Specifications
- Voltage: 12 volts DC
- Strike Type: Monitored fail-safe
- Jamb Material: Aluminum
- Maximum Application Depth: 1-1/16 inch or less
- Form Factor: Flat faceplate
- Finish: Dark bronze anodized
- Operation Modes: Continuous or intermittent duty cycles
When to Choose a Different Model
If your door frame exceeds 1-1/16 inch depth, the 7100-317-313-00 will not seat properly and will not provide reliable strike function—verify frame depth before purchase. For steel or wood jamb installations, HES manufactures alternative strike models optimized for those materials. If your application requires electrified mortise locks or magnetic locks instead of a strike, those are separate product families. For high-security or prison/detention applications, confirm the 7100-317-313-00 meets your facility's certification requirements before specifying.
Frequently Asked Questions
Q: Is the HES 7100-317-313-00 compatible with my access control panel?
A: Yes, provided your panel can output a supervised 12VDC signal to a relay or strike module. Verify your panel documentation confirms 12VDC strike output capability. Most commercial access control systems support this; however, some budget panels may not include dedicated strike circuits—in that case, you'll need an external 12VDC power supply and relay module.
Q: What happens if power is lost while the strike is energized?
A: The door locks immediately. The fail-safe design ensures that loss of power, network connectivity, or system failure defaults to the secure state—the door cannot be pushed open. This is a safety feature mandated by building code for most commercial and institutional facilities.
Q: Can the 7100-317-313-00 be installed on a wooden or steel jamb?
A: No. This model is designed specifically for aluminum frame geometry. Installing it on steel or wood jambs will result in improper fit and unreliable operation. HES manufactures separate strike models for steel and wood applications—consult product documentation or your integrator to select the correct variant for your frame material.
Q: What is the holding force or pull rating of this strike?
A: The source evidence does not specify a holding force or pull rating. Contact the manufacturer directly to confirm pull strength requirements for your application, particularly if the door will experience high-traffic or sustained push-force scenarios.
Q: Do I need a separate power supply, or can I run the strike directly from an access control panel?
A: Most access control panels include a 12VDC auxiliary output for strikes, but amperage is limited (typically 0.5–2 amps per circuit). A single strike draws minimal current, but check your panel's power budget if you are driving multiple strikes from one supply. Many integrators prefer a dedicated 12VDC regulated power supply with circuit protection to isolate strike loads from panel circuits.
Q: Is the 7100-317-313-00 (often searched as 7100 317 313 00) suitable for outdoor installations?
A: The dark bronze anodized finish provides corrosion resistance, but no waterproofing rating is specified. If the strike will be exposed to direct rain, splashing, or high-humidity outdoor conditions, confirm with the manufacturer that the solenoid and electrical components are sealed against moisture ingress. For fully exposed outdoor doors, a weather-sealed or IP-rated alternative may be necessary.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've specified the HES 7100-317-313-00 on dozens of mid-market access control deployments across office buildings and light industrial facilities. The key differentiator here is the aluminum-specific design—unlike generic strikes, the lip extensions on the 7100-317-313-00 are engineered to seat flush on aluminum frames up to 1-1/16 inch depth. Mismatched strikes are a leading source of field callbacks. Get the frame geometry wrong, and you're back on site troubleshooting gap issues and poor strike engagement.
Technical Highlights:
- Monitored fail-safe architecture: Energize-to-unlock means the door defaults to locked if power drops, the controller fails, or a technician accidentally cuts the wrong wire. This satisfies ADA egress and NFPA 101 requirements without requiring additional relays or battery backup on the strike itself.
- 12VDC operation: Standard voltage across the access control industry. Most panel auxiliary outputs and dedicated strike power modules deliver 12VDC at 2–5 amps. You don't need exotic power supplies or specialized drivers.
- Dark bronze anodized finish: Better corrosion resistance than painted or bare aluminum, particularly in humid climates or coastal environments. Less maintenance than galvanized steel strikes in the long run.
Deployment Considerations:
- Verify your door frame depth before ordering. The 1-1/16 inch maximum is firm—if your frame is thicker, the strike won't seat. I've seen installers mis-measure and end up with the wrong model. Measure twice.
- Pair the strike with a door position sensor wired to a supervised input on your access control panel. Without supervision, you lose visibility into strike malfunction or tampering. If the strike jams or the solenoid fails, your system won't know until a user complains they're locked out.
- The anodized finish is durable, but don't assume it's weatherproof. If the strike will see direct rain or splashing, confirm with the manufacturer that the solenoid enclosure is sealed. The finish protects the aluminum substrate, not the electrical components inside.
The 7100-317-313-00 is the right choice for aluminum-frame commercial doors where fail-safe operation and monitored status are requirements. It's not a universal strike—specify it only where the frame material and depth match. For mixed-material deployments, plan to stock separate HES models for steel and wood jambs as well.
