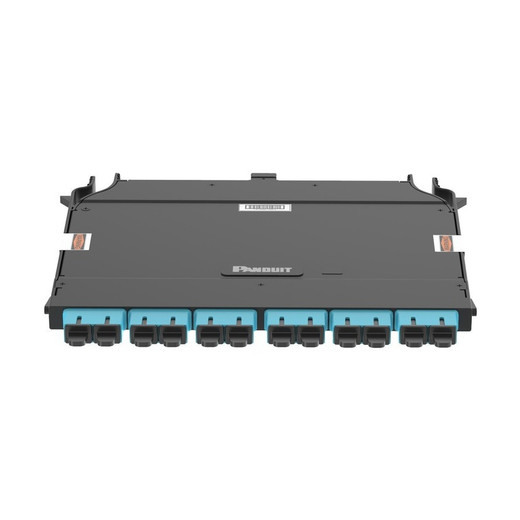

Panduit FHCZO-12-03AF Fiber Cassette

Overview

The Panduit FHCZO-12-03AF is an HD Flex™ OM4 fiber cassette designed for high-density network deployments. It consolidates 12 fibers from a single MPO-12 male connector into six SC duplex ports, facilitating efficient patch panel configurations and reducing cable complexity. This cassette is engineered for optimized optical loss, making it suitable for demanding data center and enterprise backbone applications where signal integrity is critical.

Compatibility

This cassette is part of the Panduit HD Flex™ system and is designed to integrate with compatible HD Flex™ enclosures and patch panels. It supports OM4 multimode fiber, commonly used in 10/40/100 Gigabit Ethernet applications. The MPO-12 male connector is standard for higher fiber counts, while the SC duplex connectors provide ubiquitous connectivity for active equipment or distribution points. Ensure your existing infrastructure utilizes OM4 fiber and supports MPO-12 and SC duplex interfaces for seamless integration.

Installation Notes

The FHCZO-12-03AF cassette utilizes a polycarbonate material for durability and a low profile. It is designed for slide-in installation into compatible HD Flex™ enclosures. The MPO connector is male, requiring a corresponding female MPO cable. The cassette is configured for Method A (modified) with paired fibers inverted, a common standard for specific network architectures to ensure correct polarity. Verify your cable polarity matches this configuration to avoid signal loss or connection issues.
