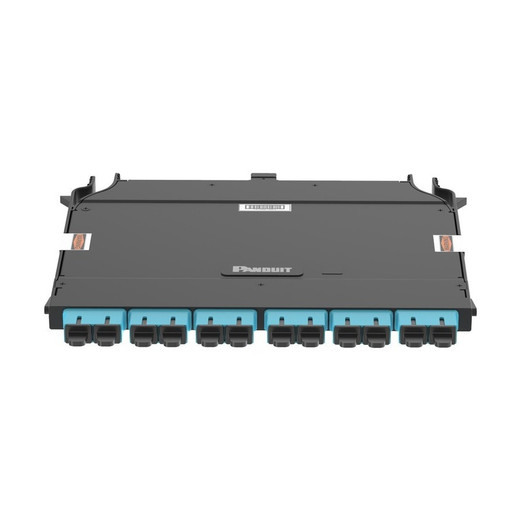

Panduit FHCZO-12-03U HD Flex™ OM4 Fiber Cassette

The Panduit FHCZO-12-03U HD Flex™ cassette delivers high-density fiber breakout for 40GBASE-SR4 and 100GBASE-SR4 datacenter backbones. This MPO-12 to 6-duplex SC module supports OM4 multimode fiber with optimized insertion loss and universal polarity, enabling rapid migration from 10G SC infrastructure to 40G/100G MPO trunks without re-cabling horizontal runs. Whether you're consolidating MDA-to-HDA links, building out a spine-leaf fabric, or upgrading legacy SC panels to support parallel optics, this cassette bridges the gap between MPO backbone efficiency and the installed base of duplex SC equipment.

Key Features

• MPO-12 to 6x Duplex SC Breakout: One MPO-12 male trunk connector fans out to six duplex SC ports, supporting 12 fibers total for 40G/100G parallel optics applications
• OM4 Multimode Fiber: Supports 10GBASE-SR to 400m, 40GBASE-SR4 to 150m, and 100GBASE-SR4 to 150m per TIA-568.3-D and ISO/IEC 11801
• Optimized Insertion Loss: Factory-tested low-IL design maximizes link budget headroom for long datacenter runs and high port-count switches
• Universal Polarity: Works with Method A, B, or C MPO trunk cables—no field polarity conversion or adapter keys required
• HD Flex™ Modular Platform: Installs in Panduit HD Flex enclosures and patch panels for scalable, pay-as-you-grow fiber density
• Black Polycarbonate Housing: Rugged, UL 94 V-0 rated enclosure protects internal fiber routing and connectors in high-vibration rack environments
• Pre-Terminated Factory Assembly: Eliminates field splicing and polishing—cut deployment time from hours to minutes per cassette
• SC Duplex Compatibility: Integrates directly with existing SC infrastructure—no adapter panels or hybrid jumpers needed for edge connections

Datacenter fiber migrations often stall at the breakout point: your core switches moved to 40G/100G QSFP optics years ago, but your horizontal SC cabling represents tens of thousands of dollars in installed infrastructure. Rip-and-replace isn't an option, and running parallel cable plants doubles your pathway fill. The FHCZO-12-03U cassette solves this by translating high-fiber-count MPO trunk cables into individual duplex SC connections at the distribution frame. The MPO-12 connector on the rear accepts a 12-fiber ribbon trunk from your spine switch or MDA aggregation point; the front face presents six duplex SC ports that plug directly into your existing patch cords and equipment. Each cassette handles one 40GBASE-SR4 link (8 fibers active, 4 dark spares) or one-third of a 100GBASE-SR10 breakout (12 fibers utilized across three cassettes in a 36-fiber configuration). The OM4 fiber grade supports 850nm VCSELs at distances up to 150 meters for 40G/100G and 400 meters for 10G, which covers the vast majority of intra-building and campus datacenter runs. Optimized insertion loss—typically under 0.35 dB per mated pair—preserves link budget when you're chaining multiple cassettes or dealing with long horizontal spans. Universal polarity means you don't need to stock Method A vs. Method B trunks or chase down keyed adapters during a late-night switch replacement; any MPO-12 trunk will mate correctly, and the internal fiber routing automatically aligns transmit-to-receive pairs regardless of the trunk's pinout convention.

The HD Flex cassette platform is purpose-built for the realities of modern datacenter deployment: you never build out 100% of your fiber on day one, maintenance windows are shrinking, and mistakes in the MDA cost five figures in lost uptime. These cassettes install tool-free into Panduit's FHD series enclosures and blank patch panels, allowing you to start with a handful of populated slots and add capacity as switch ports come online—pay only for the fiber you're actually lighting. The modular design also isolates failure domains; if one cassette develops a cracked ferrule or pinched fiber, you swap out that single 12-fiber module instead of disturbing an entire 144-fiber panel. In spine-leaf fabrics, this translates to sub-five-minute MTTR for edge-of-row connectivity without affecting adjacent racks. The polycarbonate housing meets UL 94 V-0 flammability rating and handles the thermal cycling and vibration common in dense compute environments—no cracked tabs or loose dust caps after a year of PDU fans running at full tilt. SC duplex connectors remain the single most common interface in enterprise datacenters; by terminating the cassette with SC rather than LC or CS, you eliminate the need for hybrid patch cords (SC-to-LC) or adapter panels, both of which add insertion loss, points of failure, and WAF confusion during troubleshooting. Six duplex ports per cassette also align cleanly with common switch densities: a 24-port 10G SC switch maps to four cassettes, a 48-port to eight, with minimal dark fiber waste.

This cassette ships as a single unit (carton quantity 10 for volume deployments) and is fully compliant with TIA-568.3-D, ISO/IEC 11801-1, and IEC 61754-7 MPO connector standards. The universal polarity feature conforms to TIA-604-5 Method B and Method C pinouts via internal crossover routing, which is critical when you're sourcing trunk cables from multiple vendors or inheriting an existing MPO infrastructure with mixed polarity schemes. Pre-terminated factory assembly means every fiber is fusion-spliced, cleaved, and insertion-loss tested before it leaves the Panduit facility—eliminating the single biggest source of field failures (contaminated or misaligned hand-polished connectors) and cutting your per-port deployment time by 80% compared to field-terminated cassettes. For integrators managing multi-floor MDA-to-HDA buildouts or hyperscale row aggregation, this combination of universal compatibility, optimized performance, and modular scalability is what separates a smooth migration from a three-weekend fiber troubleshooting marathon.
