Hanwha XNV-6080RSA 2MP Outdoor Stainless Steel IR Dome

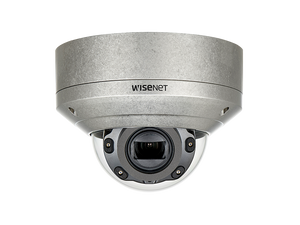

Hanwha XNV-6080RSA 2MP Outdoor Stainless Steel IR Dome IP Camera

The Hanwha XNV-6080RSA is a rugged 2-megapixel IP dome camera engineered for harsh outdoor and industrial environments where durability and food-safety compliance are critical. Built with stainless steel (SUS316L) construction and certified to NSF/ANSI Standard 169, this camera delivers reliable surveillance in demanding applications including food processing facilities, marine installations, and corrosive environments. Its 1920x1080 resolution and 60fps capability ensure smooth, detailed video capture, while advanced imaging technologies and comprehensive analytics provide intelligent monitoring around the clock.

Key Features

• 2MP 1/2.8" CMOS sensor with 1920x1080 resolution at 60fps
• 2.8–12mm motorized varifocal lens with 4.3x zoom and DC auto iris
• 50-meter infrared range for complete darkness surveillance
• 150dB Wide Dynamic Range (WDR) with Defog and HLC for extreme lighting
• Stainless steel housing rated IP66, IP6K9K, NEMA 4X, and IK10+
• Dual SD/SDHC/SDXC card slots supporting up to 512GB edge storage
• H.265, H.264, and MJPEG compression for bandwidth optimization
• Advanced analytics: motion detection, face detection, directional detection, loitering, tampering, and audio detection
• PoE, 12VDC, and 24VAC power input options

Technical Specifications

Imaging & Optics: The camera captures up to 1920x1080 resolution and delivers exceptional low-light performance with 0.015Lux in color mode (F1.4, 1/30sec) and 0Lux in black & white with IR enabled. The motorized varifocal lens adjusts from a wide 119.5° horizontal field of view to a narrow 27.9°, providing flexibility for varied deployment scenarios. Minimum focus distance of 0.5 meters enables detailed close-range inspection.

Image Enhancement: The 150dB WDR, Smart Stream II codec, and SSNR V noise reduction ensure clarity in backlit and high-contrast scenes. Defog compensation removes atmospheric interference, while digital image stabilization and lens distortion correction (LDC) maintain steady, accurate footage. The camera supports video rotation including hallway view for flexible mounting.

Analytics & Intelligence: Integrated analytics detect defocus, directional motion, fog, faces, loitering, virtual line crossings, tampering, audio events, and appearances/disappearances. Eight polygonal motion detection zones and 32 privacy masking zones (with color and mosaic options) enable customizable monitoring. Digital auto-tracking keeps subjects centered during motion.

Durability & Environmental: NSF/ANSI Standard 169 certification makes this camera compliant for food equipment applications. Stainless steel construction resists corrosion in marine, agricultural, and chemical environments. Operating temperature range of -40°C to +55°C and storage range to -50°C to +60°C support extreme climates. IP66 and IP6K9K ratings provide complete dust and high-pressure jet protection; IK10+ rating withstands severe impacts.

Connectivity & Storage: 10/100BASE-T Ethernet with support for ONVIF Profile S/G/T, RTSP, HTTP/HTTPS, and SNMPv3 ensures integration with standard VMS platforms. Dual SD card slots enable local recording up to 512GB. Supports up to 10 streaming profiles with unicast and multicast delivery to 20 simultaneous users.

Applications

• Food processing and cold storage facilities
• Marine and coastal installations
• Chemical and corrosive industrial environments
• Parking areas and perimeter monitoring
• Outdoor asset protection and yard surveillance
• Remote and extreme climate deployments

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-6080RSA targets specialized applications where standard cameras fail. Its NSF/ANSI food-safety certification and SUS316L stainless steel distinguish it from conventional outdoor domes, making it the preferred choice for regulated food and beverage facilities. The 150dB WDR and 50-meter IR range handle the dynamic lighting and darkness typical of uncontrolled outdoor spaces, while Defog and HLC actively compensate for environmental interference rather than relying on passive optics alone.

The varifocal lens and digital auto-tracking reduce the need for multiple cameras, lowering deployment costs. H.265 codec support and Smart Stream II adaptive bitrate technology deliver significant bandwidth savings—critical for remote or bandwidth-constrained sites. Edge storage via dual SD cards provides failsafe local recording if network connectivity drops.

The camera's extensive analytics (loitering, directional motion, audio detection, tampering) enable proactive threat detection and reduce false alarms through intelligent filtering. IP6K9K and IK10+ ratings ensure survival in washdown environments and high-impact zones where typical domes would fail within months. Power flexibility (PoE, 12VDC, 24VAC) simplifies installation in existing infrastructures.
