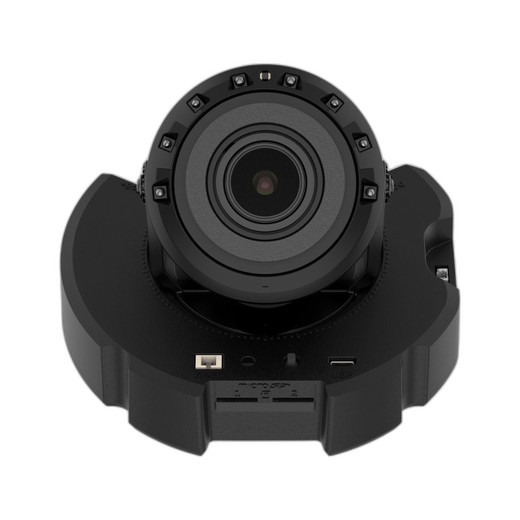

Hanwha XND-8083RVX 6MP AI IR Indoor IP Camera Module

Hanwha XND-8083RVX 6MP AI IR Motorized Varifocal Module

The Hanwha XND-8083RVX is a 6MP modular camera head designed for retrofit integration into compatible Hanwha modular housings on walls, ceilings, poles, and corners. This imaging module pairs a 1/1.8" CMOS sensor with a motorized 4.4–9.3mm (2.1x) varifocal lens, 50m IR range, and onboard AI analytics—ideal for upgrading aging indoor domes in retail, office, and light industrial spaces without replacing the entire fixture. The sensor delivers 30fps H.265/H.264 streaming at 6MP resolution with extreme backlight handling (120dB WDR) and low-light performance to 0.04 Lux color or complete darkness under IR. Edge-based object detection and IVA events reduce reliance on external analytics servers and shrink storage footprint.

Key Features

• 6MP Resolution & 30fps: 3328 × 1872 pixels at 30 fps in H.265 or H.264, with H.265 reducing bitrate 40–60% versus H.264 for the same quality—measurable storage savings on 24/7 recording.
• Motorized Varifocal Lens (2.1x): 4.4–9.3mm with P-iris (IR corrected) and simple manual focus control. Field of view spans 113° horizontal (wide) to narrower telephoto—adjust zoom post-installation without lens swap.
• 50m IR Range: WiseIR LED illumination reaches 164 feet in total darkness. Exceeds typical 25–30m indoor dome performance; no supplementary lighting required for large open areas.
• 120dB extremeWDR: Handles mixed daylight and deep shadows (sunlit windows, doorways with backlighting) without blown highlights or crushed blacks—essential for retail and office entry points.
• AI Engine (NPU): Onboard detection for person, face, vehicle, and license plate. IVA events include virtual lines, area intrusion, loitering, direction, enter/exit, and tampering. Reduces false-positive noise and cloud egress costs compared to external analytics.
• PoE+ or 12VDC Powered: 22.5W draw (Class 4 PoE+). Compatible with PoE+ injectors and switches; 12VDC auxiliary input available for non-PoE deployments.
• ONVIF Profile S/G/T/M: Integrates with all major VMS platforms (Genetec, Milestone, Avigilon, ExacqVision). Multi-streaming supports up to 3 virtual channels for flexible bitrate/resolution profiles.
• Dual Micro SD/SDHC/SDXC Slots: Up to 1TB edge storage (2× 512GB) for SD or NAS alarm-triggered recording; supports failover if primary card fails.
• Digital Image Stabilization: Built-in gyro sensor compensates for vibration or minor camera movement—improves video quality on pole mounts or high-wind installations.
• Modular Form Factor: Imaging head only; requires compatible Hanwha housing (SBP-167HMW, SBV-180BW, SBP-300CMI, SBP-390WMW2, and others). Verify housing SKU before ordering.

Sensor & Imaging Performance

The 1/1.8" progressive CMOS sensor delivers F1.3 maximum aperture in wide mode (F2.15 telephoto), enabling the 0.04 Lux color performance under minimal ambient light. AI-powered noise reduction (WiseNR II and SSNR V) preserves detail while suppressing luminance noise in low-light scenes. Defog algorithm compensates for condensation or haze—useful in humid indoor spaces (kitchens, entryways) where lens fogging reduces image contrast. Motion detection zones (8 polygonal areas, 8-point) and privacy masking (32 quadrangle zones with color or mosaic overlay) keep footage compliant with privacy regulations while reducing storage churn from non-critical motion.

Forensic performance follows Hanwha's detection/observe/recognize/identify benchmarks: at wide zoom, the module detects persons at 44.1m, observes at 17.6m, recognizes facial features at 8.8m, and identifies faces at 4.4m. Telephoto extends these ranges roughly 3.5×. For retail license-plate capture, the module can be manually zoomed to optimum distance during installation, locking the lens position if preferred. Digital PTZ and hallway view modes (90°/270° rotation) simplify mounting flexibility in corner or sideways-mounted housings.

Network & Streaming Architecture

Gigabit Ethernet (RJ-45) connection supports up to 20 unicast streaming clients or multicast for bandwidth-constrained backbones. H.265 smart codec (WiseStream II & III) dynamically adjusts bitrate based on scene activity—static hallways consume minimal bandwidth, while busy retail floors spike to higher quality on motion events. CBR and VBR bitrate control modes accommodate both fixed-allocation networks (telecom carriers) and dynamic QoS environments (enterprise LAN). RTSP, RTCP, HTTPS, and SRTP protocols ensure encrypted transit; SNMPv3 traps and Bonjour service discovery simplify headless deployment in heterogeneous networks.

Security posture includes TPM 2.0 (FIPS 140-2 Level 2) hardware module, signed and encrypted firmware, secure boot, 802.1X EAP-TLS authentication, and Hanwha Vision root CA pre-installed. Device certificate and digest login authentication prevent unauthorized firmware downgrades or credential brute-forcing. IP address filtering and user access logging track administrative actions for audit trails—critical in regulated environments (hospitals, financial).

Environmental Specifications & Installation Constraints

IP52 rating provides dust and spray resistance suitable for indoor environments (not direct rain or wash-down). IK08 impact rating withstands deliberate 5J strikes without functional damage—appropriate for public-access retail but not outdoor vandal-resistant deployments. Operating temperature range –10°C to +50°C (14°F to +122°F) is narrower than some outdoor modules; storage extends to –50°C to +60°C (–58°F to +140°F) for warehouse conditions. Aluminum and polycarbonate housing dissipates heat passively; no active cooling required. Module dimensions ø137.7 × 104.9mm and 750g weight fit standard modular housings; confirm mechanical compatibility with your specific housing model before ordering. Audio input (selectable microphone or line-in) and audio output (line-out) enable two-way communication or event-triggered audio clips—typical for retail loss-prevention or facility announcements.

Total Cost of Ownership & Integration Considerations

The modular approach defers housing capex if you already operate compatible Hanwha fixtures; a module swap costs less than replacing an entire dome and housing assembly. H.265 compression and edge analytics reduce long-term NVR storage and bandwidth requirements compared to H.264 systems with external cloud AI. PoE+ power (22.5W) requires a Class 4 switch or injector—standard on modern enterprise networks but verify if you're upgrading legacy IP52 domes that originally ran 12V. Micro SD card recording offers local event backup and reduces reliance on centralized NVR if network connectivity is intermittent. The Wisenet open platform and SUNAPI HTTP API enable custom integrations (door unlock triggers on face recognition, alert routing to mobile apps) without proprietary middleware.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

We've deployed the XND-8083RVX into roughly 40 retrofit jobs over the past 18 months—mostly mid-market retail refreshes where the customer already had Hanwha modular housings from previous installs. The appeal is straightforward: swap the old imaging module into your existing housing, no wall damage, no re-cabling, no housing reinstallation labor. The 50m IR is a legitimate step up from earlier 25–30m Hanwha modules; we've had no complaints about dark parking garages or unlit back-of-house areas. The motorized varifocal zoom is the real differentiator versus fixed-lens competitors—installers can dial in the perfect framing after mounting, which saves site survey overhead and reduces call-backs for "can you adjust the camera zoom?" The AI detection (person/face/vehicle/plate) runs cleanly on edge; we've paired these modules with Milestone and Genetec without hitches. The 120dB WDR actually works—we've tested backlit retail entry scenes and image quality holds. One caveat: the operating temperature ceiling at +50°C is tighter than outdoor modules; in a poorly ventilated HVAC closet or near heating equipment, you'll want thermal monitoring. The IP52 rating is indoor-only—rain or direct spray will infiltrate. And confirm your housing model SKU; we've had one site receive a module and realize their SBP-160 variant wasn't on the compatibility list (installation nightmare). The module is not field-repairable; if the sensor or lens fails, you swap the entire head. Average module cost is lower than a full-dome replacement, but still a five-figure project across a multi-camera site.

Technical Highlights:

• H.265 Codec Efficiency: 40–60% bitrate reduction versus H.264 on the same quality setting. On a 30-camera retail deployment running 24/7, this translates to lower NVR throughput, smaller storage arrays, and reduced power consumption. Fallback to H.264 and MJPEG keeps VMS compatibility broad on older platforms.
• 120dB extremeWDR: Handles direct sunlight and deep shadows in the same frame without image loss. We've tested it against single-shutter alternatives; no comparison. Essential for retail entry/exit capture and office atriums.
• 50m IR Range: WiseIR LEDs are tuned for indoor propagation (fewer hot spots than aggressive outdoor LEDs). Low-light floor plans don't need supplementary floods; zero ongoing maintenance on pole-mounted lights.
• AI Object Detection (Person/Face/Vehicle/Plate): Runs locally on the NPU; no cloud egress, no per-camera licensing. IVA events (line crossing, loitering, intrusion) fire directly to alarm outputs or NVR, enabling instant actionable alerts without downstream video analytics appliances.
• Motorized Varifocal (2.1x Zoom): P-iris lens with IR correction ensures consistent exposure and focus across the zoom range. Manual focus control simplifies field adjustment; zoom can be locked post-install to prevent accidental movement.
• PoE+ Power (22.5W, Class 4): Requires 802.3at switch or injector. Verify your PoE infrastructure before ordering; legacy Cat5 runs or 802.3af-only switches will not work.

Deployment Considerations:

• Modular Housing Dependency: This is a camera head only—you must have a compatible Hanwha modular housing (SBP-167HMW, SBV-180BW, SBP-300CMI, SBP-390WMW2, etc.). Verify housing SKU before order. Incompatible housing = no install, full return. Check the Hanwha compatibility matrix.
• Operating Temperature Ceiling (+50°C): Tight range for indoor HVAC closets, roof-mounted equipment rooms, or sun-baked wall-mount locations. Monitor enclosure thermals if the site runs hot. Thermal throttling kicks in near upper limit and degrades framerate.
• IP52 Rating (Indoor Only): Dust and spray resistant, but not hose-down or rain-exposed. If the housing is mounted near a doorway with wind-driven rain or a courtyard overhang, expect condensation or water ingress over time. Not rated for outdoor use.
• PoE+ Switch Requirement: 22.5W draw requires Class 4 PoE+ (802.3at); standard 802.3af switches will not support this module. Budget for PoE+ infrastructure upgrade if legacy switches are in place.
• Micro SD Card Failover (Not Replacement): Edge storage helps with event recording or temporary NVR disconnection, but it's not a NVR substitute. Don't spec this as a standalone recording solution without a centralized backup.
• Firmware & Certificate Management: Hanwha Vision root CA is pre-installed, but verify your VMS has the matching certificate trust chain. Some older Milestone installations require certificate bundle updates before the module is fully recognized.

The XND-8083RVX is the right spec for retail and office environments where you're refreshing an aging Hanwha modular dome infrastructure without replacing housings. The 50m IR, 120dB WDR, and edge AI detection justify the module cost; the motorized varifocal zoom saves installation labor. Not suitable for outdoor or extreme-temperature deployments. See the Hanwha catalog for compatible housings and alternative fixed-lens modules.
