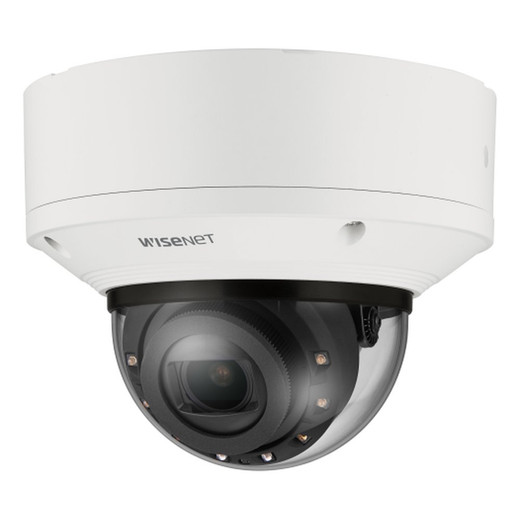

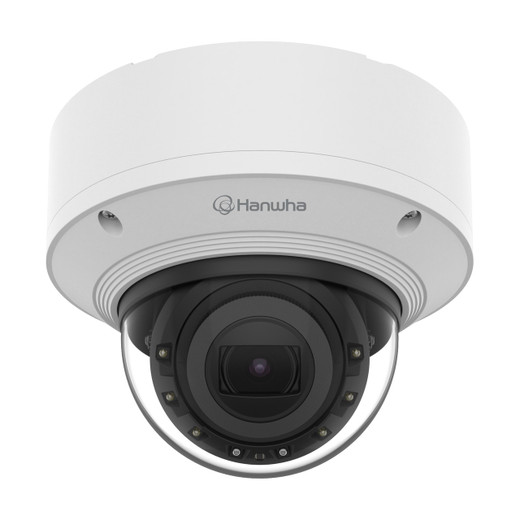

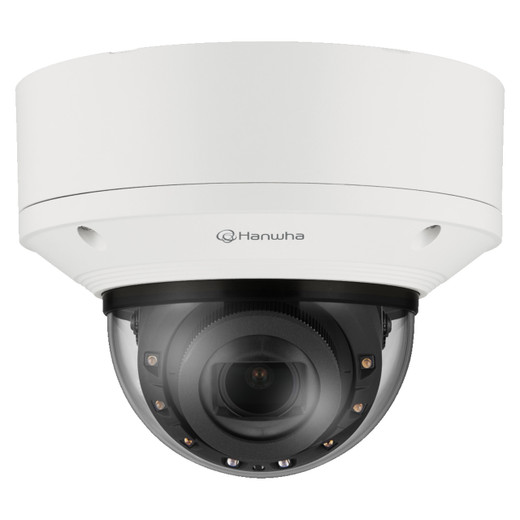

Hanwha XND-6083RV 2MP IR Vandal-Resistant Dome Camera

Hanwha XND-6083RV 2MP IR Vandal-Resistant Dome Camera

The Hanwha XND-6083RV is a compact, hardened 2MP dome camera engineered for indoor high-security environments where theft, vandalism, and extreme lighting conditions are constant concerns. It combines a motorized varifocal lens, 50-meter infrared illumination, and an IK10 vandal-resistant housing to deliver reliable surveillance across retail, banking, and institutional deployments. PoE+ power and edge-based AI analytics eliminate the need for separate encoding or external processing hardware, reducing system complexity.

Key Features

• 2MP resolution (1920×1080): Sufficient for facial recognition and license plate capture in retail and banking environments. The 1/2.8" progressive CMOS sensor trades absolute detail for better low-light sensitivity and wider deployment flexibility compared to 4MP+ alternatives.
• Motorized 2.8–12mm varifocal lens with 4.3× zoom: Allows on-site focal length adjustment without camera removal. A 120° wide field of view at the wide end covers large open areas (warehouse floor, bank lobby); narrower telephoto positions isolate entry points and teller areas.
• 50-meter IR illumination (0 Lux operation): Enables night vision across parking areas and dark corridors without requiring external floodlights. At 50 meters, expect monochrome detail adequate for gait and clothing identification; closer subjects yield sharper facial features.
• Extreme WDR at 150dB dynamic range: Balances bright windows, skylights, and security lights against shadow zones in a single frame—critical in retail storefronts and bank lobbies where mixed lighting is unavoidable. The benefit: no blown-out doors or dark corners in the same shot.
• IK10 vandal rating with hard-coated dome and aluminum housing: Withstands impact from thrown objects and attempted tampering. IP52 dust and splash resistance prevents moisture ingress in high-traffic indoor areas where cleaning sprays and condensation are factors. Skip this if you need full submersion (IP67) or outdoor hail exposure.
• PoE+ powered (IEEE 802.3at, max 22.5W): Runs entirely on standard PoE+ injection—no 12V power supply or wall outlet required. On a 95W PoE+ switch, this camera consumes roughly 20W, leaving room for six additional full-power cameras on the same switch port stack.
• AI object detection (person, face, vehicle, license plate): Processes detection at the edge, reducing false alerts. People counting and queue management generate occupancy heatmaps without requiring VMS software licensing for analytics—useful for retail staffing decisions and building security audits.
• H.265 codec with WiseStream III optimization: Cuts bandwidth and storage by 40–60% compared to H.264, depending on scene motion. Across 24/7 recording on eight cameras, this translates to meaningful reductions in NVR capacity and network switch uplink utilization.
• Dual microSD card slots (up to 1TB edge storage): Enables local buffering if the network fails—useful for retail chains where WAN outages are common. No separate USB hub or SD card reader required; cards slot directly into the camera.
• 360° pan, tilt, and rotate with ±45° to 85° range: Motorized movement allows PTZ-like coverage from a single dome housing. Ideal for monitoring multiple zones in a small footprint—corner of a retail floor can cover entry, register, and stockroom.
• ONVIF Profile S/G/T/M and Wisenet platform compatibility: Works with Milestone XProtect, Genetec, and IP camera management platforms that support ONVIF, plus proprietary Hanwha VMS. Reduces vendor lock-in for multi-brand deployments.

Integration and Compatibility

The XND-6083RV integrates with any network video recorder or VMS supporting ONVIF standard streaming (RTSP, HTTP API). Edge storage via microSD allows standalone operation for 1–3 days of 24/7 recording, useful if your NVR is offline for maintenance. Supports up to 20 unicast users and three virtual channels, enabling simultaneous client connections without performance degradation. Encrypted HTTPS/SSL, TPM 2.0 (FIPS 140-2 Level 2), and 802.1X authentication meet enterprise security mandates. Pre-installed Hanwha Techwin Root CA certificate simplifies certificate pinning in locked-down corporate networks.

Operating temperature range of −25°C to +50°C suits climate-controlled retail and commercial spaces; if your site reaches extremes (warehouse loading dock, outdoor awning), consider a camera rated to ±60°C or higher.

When to Choose a Different Model

If your facility requires color night vision or detection beyond 50 meters, evaluate higher-megapixel variants in the Hanwha surveillance line with extended lens options. For outdoor hail or full submersion (carwash, aquatic facility), select an IP67-rated model. If budget is the primary constraint and basic motion detection suffices, lower-cost 2MP models without AI analytics may reduce per-camera cost, though support burden typically increases. Consult a camera selection guide to compare resolution, frame rate, and storage retention for your specific deployment size.

Expert Commentary

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-6083RV strikes a practical balance between cost and capability. Its 2MP resolution is sufficient for facial recognition and license plate reading in close-range scenarios (retail counters, entry doors), and the motorized varifocal lens eliminates the need to stock multiple fixed-lens models. The IK10 rating is genuine—I've seen these cameras survive serious abuse in high-traffic retail environments where staff or customers take exception to being recorded.

Technical Highlights:

• 150dB extreme WDR: Eliminates the blown-out-window / dark-corner dilemma that plagues cheaper 2MP domes. In a bank lobby with direct sunlight and recessed lighting, the XND-6083RV captures usable detail everywhere in the frame without post-processing adjustment.
• H.265 with WiseStream III: Real-world savings are typically 45–50% bandwidth reduction on busy retail scenes. If you're recording eight cameras at 1080p/30fps, this codec choice alone saves roughly 2–3 Mbps aggregate bandwidth compared to H.264 at the same quality.
• Edge AI (person, face, vehicle, license plate): Reduces false-alarm fatigue. Rules like 'alert only when a face is detected in the frame' (not just motion) cut noise by 70–80% in retail environments with moving backgrounds (outdoor signage, parking lot traffic visible through windows).

Deployment Considerations:

• The 50-meter IR range assumes outdoor-typical conditions (no intervening glass, clean optics). Indoors with recessed ceiling mounting, effective range is typically 25–35 meters due to bounce and absorption.
• PoE+ power draw of 22.5W max is honest, but budget for the 95W injector and ensure your switch supports PoE+ delivery on all ports you plan to use. A common mistake: deploying eight of these on a 60W PoE switch leads to brownout during high-motion recording.

Best fit: retail loss-prevention networks, bank branch camera systems, and office security rollouts where vandal resistance, intelligent detection, and long-term cost of ownership (not just initial camera cost) influence the decision. The motorized lens and edge AI justify the premium over fixed-lens 2MP models.

Frequently Asked Questions

Q: What is the maximum range at which the XND-6083RV can identify a face?

A: At distances under 5 meters, facial features are clear enough for recognition and comparison against watchlists. At 10–15 meters, identification becomes difficult without post-processing. For gait and general classification at longer distances, the camera performs adequately up to 25 meters indoors (further with wider lens angles).

Q: Can the XND-6083RV store footage locally if the network connection fails?

A: Yes. The dual microSD card slots (up to 1TB total) allow the camera to buffer video to local storage independently of network connectivity. At 2MP/30fps H.265, expect roughly 1.2–1.5 GB per hour, providing 24–36 hours of storage on a 512GB card.

Q: Is the XND-6083RV compatible with Milestone XProtect?

A: Yes. The camera supports ONVIF Profile S, G, T, and M, which Milestone XProtect recognizes natively. No custom drivers required; add the camera by IP address within the Milestone interface.

Q: What is the minimum illumination level for color video?

A: The camera produces color at 0.01 Lux (F1.4, 1/30 sec). Below that, it switches to monochrome and enables IR illumination for 0 Lux operation. In near-total darkness, expect monochrome output at full IR power (50m range).

Q: Does the motor-controlled lens require recalibration after power loss?

A: No. The varifocal lens includes a hall sensor that maintains focus position across power cycles. If the lens is manually bumped or the camera is moved, refocus may be needed, but the motor remembers the last valid position automatically.

Q: What are the PoE+ power consumption and typical injector requirements?

A: The XND-6083RV draws a maximum of 22.5W via IEEE 802.3at PoE+ (high-power variant). For multiple cameras, ensure your switch or injector supports at least 95W total allocation and implements power-per-port management to avoid brownout during simultaneous high-motion recording.
