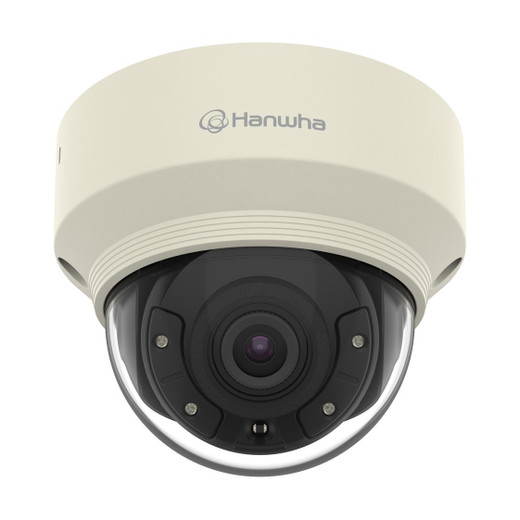

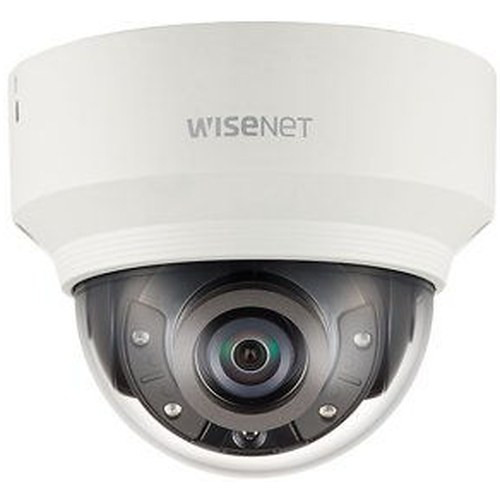

Hanwha XND-6020R 2MP Vandal Dome IR Camera

Hanwha XND-6020R 2MP Day/Night WDR Vandal Fixed Dome IR IP Camera

The XND-6020R is a compact, high-performance indoor surveillance dome engineered for secure environments requiring robust vandal resistance and continuous 24/7 monitoring. Built on a 1/2.8" 2MP CMOS sensor, this fixed-focal camera delivers crisp 2-megapixel imagery with exceptional low-light performance and intelligent imaging technology designed to maximize security effectiveness in challenging conditions.

Key Features

• 150dB Wide Dynamic Range (WDR): Delivers optimal image quality in mixed lighting environments, including backlighting and high-contrast scenes
• Advanced IR Night Vision: 30-meter IR illumination range ensures clear monitoring in complete darkness without auxiliary lighting
• Vandal-Resistant Design: IK08-rated dome housing protects against tampering and impact damage in high-risk areas
• H.265/H.264 Compression: Efficient codec support maximizes storage capacity and reduces bandwidth consumption while maintaining video quality
• Intelligent Analytics: Integrated motion detection, face detection, line crossing, loitering, and tampering alerts provide actionable security intelligence
• PoE Powered: IEEE 802.3af Class 3 power delivery simplifies installation with single-cable operation
• Flexible Storage: Dual microSD/SDHC/SDXC card slots support up to 512GB edge recording for local data retention

Technical Specifications

Imaging & Optics: The camera features a fixed 4mm F1.4 lens with 88.6° horizontal field of view, capturing detail from as close as 0.4 meters. Auto day/night ICR switching enables seamless transition between color and monochrome modes. Advanced features include digital image stabilization, defog correction, and lens distortion compensation (LDC) for enhanced image clarity.

Video Performance: Up to 60fps H.265 or H.264 encoding, with motion-activated smart codec and WiseStream II bandwidth optimization. Multiple simultaneous streams (up to 10 profiles) and support for both unicast and multicast delivery accommodate diverse deployment scenarios.

Analytics & Intelligence: Comprehensive video analytics include defocus detection, directional detection, fog detection, audio detection with sound classification, digital auto tracking, and business intelligence features such as people counting, queue management, and heatmap generation.

Security & Integration: Supports HTTPS/SSL encryption, 802.1X authentication, IP filtering, and user access logging. Full ONVIF Profile S/G/T compliance ensures vendor-neutral integration with third-party systems and platforms.

Physical & Environmental

Compact dimensions of 110×90mm and lightweight 380g design enable discreet mounting. Operating range of -10°C to +55°C and 1024MB RAM with 256MB flash provide reliable performance in standard indoor environments. Aluminum construction with ivory finish offers professional aesthetics suitable for corporate and institutional settings.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-6020R represents an ideal balance of compact form factor, advanced imaging capability, and intelligent feature set for indoor surveillance applications demanding vandal resistance. The 150dB WDR combined with F1.4 aperture and IR illumination delivers reliable image quality across extreme lighting transitions—critical for entry points, retail environments, and areas with variable natural light. The IK08 vandal rating provides genuine protection against deliberate tampering, distinguishing this from non-rated competitors.

Native support for H.265 encoding, WiseStream II, and smart codec manual zone control allows IT teams to optimize bandwidth for constrained networks. Edge storage via dual microSD slots provides autonomous recording capability during network interruptions. The comprehensive analytics suite—including directional detection, virtual line crossing, and audio-based alerts—enables proactive security responses beyond motion detection alone.

ONVIF Profile S/G/T certification ensures seamless integration into existing management platforms, reducing deployment friction. This camera excels in applications such as retail loss prevention, office security, facility access control, and institutional monitoring where proven reliability and feature depth matter.
