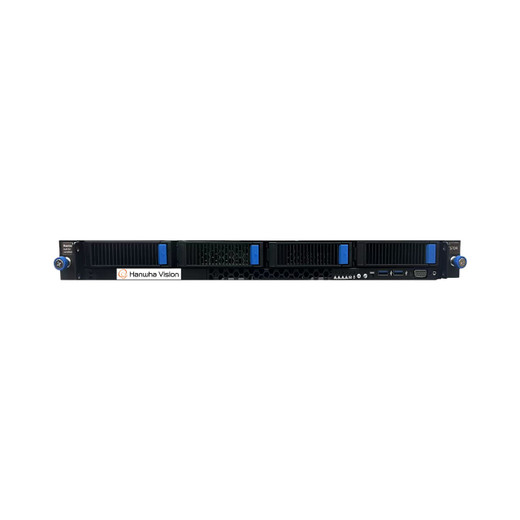

Hanwha WRR-P-E201L Wave Recording Server Ubuntu 22.04

Hanwha WRR-P-E201L Wave Recording Server with Linux Ubuntu 22.04 LTS

The Hanwha WRR-P-E201L is a compact 1U rack-mount network video recording server designed for mid-to-large scale surveillance deployments. Built on the Wave VMS platform with four included Professional licenses, this server delivers enterprise-grade recording capabilities in a space-efficient form factor. Running Ubuntu 22.04 LTS, it provides a stable, secure Linux foundation for continuous video surveillance operations.

Key Features

• Up to 470 Mbps recording bandwidth for simultaneous multi-camera streams
• Up to 80TB raw storage capacity with flexible RAID configurations (0, 1, 5, 6, 10)
• Dual 480GB SSD OS drives with RAID 1 redundancy for system reliability
• Four hot-swappable 3.5" HDD bays for easy storage expansion
• Intel Xeon E-2356G processor with 16GB DDR4 RAM
• Dual redundant 450W Platinum-rated power supplies for continuous uptime
• Flexible networking: 2x 1GbE standard (2x 1GbE + 2x 10GbE optional)
• Wave Professional VMS with four concurrent user licenses included
• Ubuntu 22.04 LTS operating system for long-term support and stability

Technical Specifications

• Processing: Intel Xeon E-2356G CPU, 16GB DDR4 RAM
• Storage: 2x 480GB SSD (OS, RAID 1) + 4x 3.5" hot-swap bays, up to 80TB raw
• Recording Performance: 470 Mbps bandwidth under Wave VMS
• RAID Support: 0, 1, 5, 6, 10 (RAID 5 default)
• Networking: 2x 1GbE RJ45 (standard) or 2x 1GbE + 2x 10GbE (optional)
• Outputs: 1x HDMI, 1x VGA, Serial port
• Connectivity: 4x USB 3.2 (2 front, 2 rear), IPMI support
• Operating Temperature: 50°F–95°F (10°C–35°C)
• Power: 2x 450W 80 Plus Platinum, 100–240V AC input
• Dimensions: 1U rack chassis, 17.5" × 17.3" × 1.7"
• Weight: 50 lbs (23 kg, chassis only)
• Certifications: CE, FCC (Class A), UL/cUL, BSMI

Applications

• Enterprise campus and facility surveillance
• Multi-site security monitoring with centralized recording
• Retail chain and hospitality video management
• Transportation and logistics video archival
• Government and critical infrastructure deployments
• Healthcare facility video surveillance

Eden Phillips

The WRR-P-E201L is engineered for organizations requiring dependable, high-capacity video recording in a compact footprint. The dual redundant power supplies and RAID 1 OS configuration ensure system availability critical for 24/7 surveillance. Ubuntu 22.04 LTS provides extended support until 2027, reducing OS maintenance overhead.

The flexible RAID support (especially RAID 6 for dual-drive fault tolerance) allows administrators to balance performance and redundancy based on deployment requirements. With up to 470 Mbps recording bandwidth and optional 10GbE uplinks, it scales to support 50+ concurrent camera streams depending on resolution and codec. The four hot-swappable drive bays enable storage expansion without downtime.

Hot-swap functionality combined with RAID redundancy makes this server suitable for mission-critical applications where planned and unplanned downtime carries significant operational cost.
