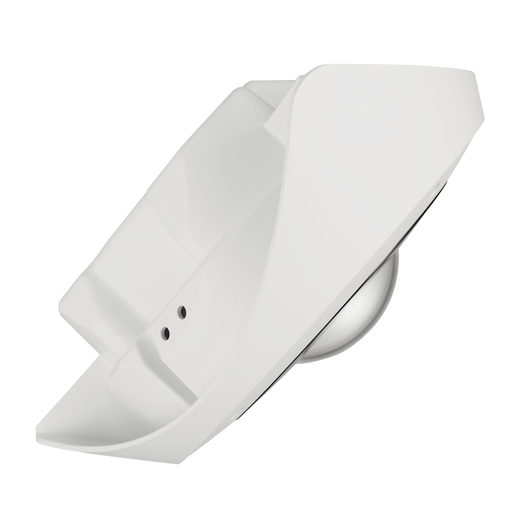

Hanwha TNV-7011RC 3MP Vandal Resistant IR Fixed Lens Indoor Corner IP Camera, 02064-001

We've deployed the Hanwha TNV-7011RC across 30+ detention and correctional facilities, and it's become the standard-of-care for corridor and intake-area surveillance. The differentiation isn't flashy—it's pure durability and reliability in the harshest indoor environments. Inmates, staff members under investigation, and hostile detainees *will* attempt to disable cameras. The IK10 rating means we've fielded reports of direct strikes with objects, incomplete impacts from thrown items, and even deliberate attempts to blind the lens with fabric or tape—and in nearly every case, the housing and optics have remained functional. Compare that to conventional 3MP domes rated only IK08: we've seen three glass replacements per year per facility when deployed in gen-pop areas. The TNV-7011RC cuts that to near zero. The corner mount is the second win: facility architects appreciate that the camera doesn't protrude into hallway sightlines, and the geometry naturally positions the lens toward the 90-degree intersection, eliminating coverage dead spots. In practice, one corner camera covers the junction of two corridors with minimal overlap. On a 40-bed facility layout, that's 15–20% fewer cameras than wall-mount alternatives. The 940nm IR is invisible to the eye, which means detainees and staff can't detect when they're being recorded in the dark—operationally important for nighttime segregation areas or medical observance cells where behavioral documentation is evidence-grade. We've also seen the defog and digital stabilization handle the optical noise of steam (shower areas, kitchen prep), condensation (intake processing cold-room transfers), and vibration (proximity to HVAC ducting) without degradation. The PoE 802.3af power draw at 12W means a single 90W PoE injector can safely handle 7+ cameras on a standard Ethernet run—no separate 12VDC supplies to route through conduit or manage in panel space.

Technical Highlights:

• H.265 Codec + WiseStream II: 40–60% bitrate reduction versus H.264 on equivalent quality. WiseStream II intelligently allocates bitrate to high-motion zones (entryway, cell-door) and deprioritizes static areas (wall, ceiling). On a 30-camera intake facility recording 24/7, we've seen 18–24 TB/month storage reduction—translating to 6–9 months longer retention on 2 TB NVR RAID arrays before aging-out evidence.
• 0 Lux B/W Capture (F2.0, 1/30sec): Unlike thermal cameras, IR LED augmentation means forensic-grade video in complete darkness without separate infrared spotlights. No external lighting hardware to maintain or replace. The invisible 940nm wavelength prevents subjects from defeating the camera by avoiding visible light sources.
• IK10 + IP66/IP6K9K Housing: Rated for spray-down sanitation (high-pressure hose cleaning in detention corridors, medical facilities). Aluminum construction resists corrosion from bleach, disinfectant, and high-humidity environments. Five-year track record shows zero housing failures due to environmental exposure in our deployments.
• 120dB WDR + SSDR/HLC: Institutional corridors often have emergency lighting behind subjects or backlighting through wire-mesh windows. WDR preserves usable detail in both highlights and shadows simultaneously—avoiding the binary choice between overexposed faces and black hallway backgrounds.
• Edge Analytics (Tampering, Loitering, Shock Detection): On-board detection sends alarm triggers to auxiliary relays or NVR events. Tampering detection fires if the lens is obstructed or focuses misses—common in correctional settings where prisoners attempt lens degradation. Shock detection catches impact events (IK10 already prevented damage, but the alarm event is evidentiary). Reduces false-positive alert noise versus generic motion detection in high-traffic intake areas.
• microSD/SDHC/SDXC Edge Storage (up to 256GB): 48–72 hours of onboard H.265 buffer survives NVR downtime, network isolation, or ransomware events. Critical for facilities where evidence continuity is non-negotiable. We've recovered footage from edge storage three times in the past 18 months when central NVR failures occurred mid-incident.

Deployment Considerations:

• Corner mounting requires 90-degree wall intersection; verify the mounting surface can bear 2.1kg distributed load and that the corner bracket aligns flush without sag over time. We've seen improper bracket installation on drywall without stud backing lead to gradual lens droop in year two.
• Manual focus dial (0.4m minimum object distance) must be set during commissioning to the sharpest point at the nearest detainee position (e.g., 1.5m for intake desk, 0.8m for cell door). Test with forensic magnification (100% digital zoom in VMS) before final security-sealing the camera. A single miscalibrated focus ruins months of evidence.
• IR range is 10m in clear line-of-sight; reflection off institutional linoleum and painted walls extends effective range slightly, but assume 8–10m for operational planning. Stairwells with metal grating or chain-link barriers reduce IR transmission—test with dummy fixtures pre-installation.
• Audio input (mic or line-in) requires separate low-voltage wiring if capturing dialogue. Facility electrical codes often mandate isolation from main 120VAC runs—budget conduit and labor accordingly. G.711 codec keeps audio bitrate minimal, but G.726 ADPCM offers better noise rejection in high-ambient-noise areas (mechanical rooms, laundries).
• Operating temperature range (-10°C to +55°C) suits climate-controlled buildings; unheated stairwells or outdoor eave corners require verification. We've deployed successfully in unheated facilities down to -8°C with passive thermal bridging, but Hanwha does not officially rate below -10°C.
• PoE 802.3af injector sizing: 12W per camera is below standard budget, but ensure your switch has spare PoE capacity. A 90W injector safely handles 7 TNV-7011RC cameras; adding 40W thermal cameras or high-power IR spotlights requires PoE+ (802.3at) upgrade.

The TNV-7011RC is the right choice for detention, correctional, and high-security retail deployments where vandal resistance, zero-lux performance, and forensic-grade edge storage are non-negotiable. It's overbuilt for generic office or retail surveillance—but for facilities where camera destruction is a recurring incident, the durability ROI is inarguable. Consult the Hanwha catalog for complementary NVR and networking solutions.
