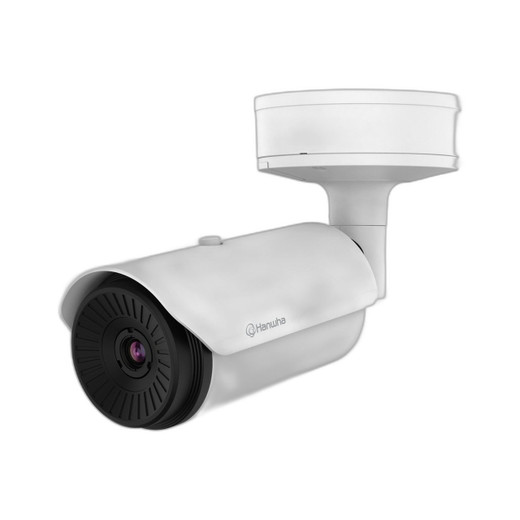

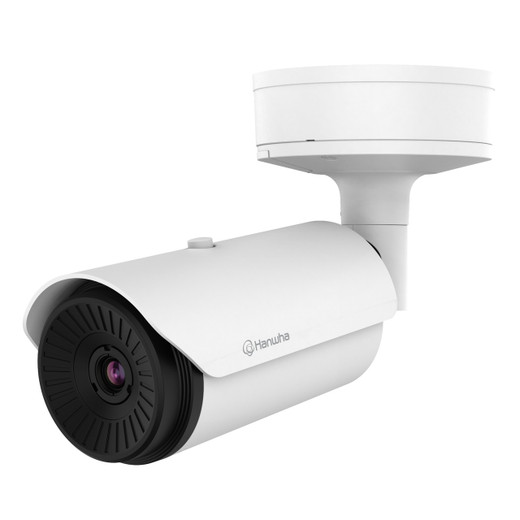

The Hanwha TNO-L3030T is a compact, fixed-lens thermal imaging camera designed for perimeter security and 24/7 surveillance in total darkness and adverse weather conditions. Built on an uncooled micro bolometer sensor with 320x240 resolution and exceptional thermal sensitivity below 60mK, this IP camera delivers reliable heat-based detection without requiring visible light, making it ideal for critical infrastructure protection, border security, and industrial monitoring applications.

Key Features

• 320x240 thermal resolution with <60mK thermal sensitivity (NETD)
• 13.7mm fixed focal length lens with F1.0 aperture and 16° horizontal field of view
• H.265, H.264, and MJPEG video compression up to 8fps
• Digital image stabilization with built-in gyro sensor
• IP66, IK10, and NEMA4X rugged design rated for -40°C to +60°C operation
• PoE, 24VAC, and 12VDC power options with low consumption (6.7-8.0W typical)
• Micro SD/SDHC/SDXC edge storage up to 256GB

Advanced Analytics & Detection

The TNO-L3030T features comprehensive thermal analytics including directional detection, motion detection, appear/disappear, enter/exit, loitering, tampering detection, virtual line crossing, audio detection, temperature change detection, sound classification, and shock detection. Eight configurable motion detection zones with 8-point polygonal masking provide flexible area monitoring, while 32 privacy masking zones support grey, green, red, blue, black, white, and mosaic options. Video rotation supports flip, mirror, and hallway view (90°/270°) for flexible installation.

Network & Security

ONVIF Profile S/G/T compliance ensures broad system integration, while Wisenet open platform and SUNAPI HTTP API provide flexible third-party connectivity. The camera supports multiple streaming profiles (up to 10) with unicast (20 users) and multicast modes. Security includes HTTPS/SSL login authentication, digest authentication, IP filtering, user access logs, and 802.1X authentication. Audio support includes selectable microphone or line input with G.711 and G.726 compression options.

Typical Applications

• Perimeter intrusion detection and border security
• Critical infrastructure and facility protection
• Industrial plant and warehouse monitoring
• Airport and seaport surveillance
• Wildlife and environmental research
• Night vision and low-light security operations

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-L3030T excels in scenarios where visible-light cameras fail. Its thermal imaging capability operates independently of ambient lighting, providing 24/7 detection through fog, smoke, and darkness. The 12µm pixel size delivers fine thermal detail for distance detection at ranges exceeding 8 meters, while <60mK sensitivity ensures reliable differentiation of subtle heat signatures critical for intrusion detection.

Fixed focus and narrow 16° horizontal field of view optimize for standoff perimeter monitoring. WiseStream II compression and multi-profile streaming reduce bandwidth without sacrificing thermal fidelity. The integrated gyro stabilization improves image quality despite mounting vibration.

For organizations requiring thermal surveillance without the cost and complexity of cooled systems, this compact IP-based solution delivers enterprise reliability in an accessible form factor.
