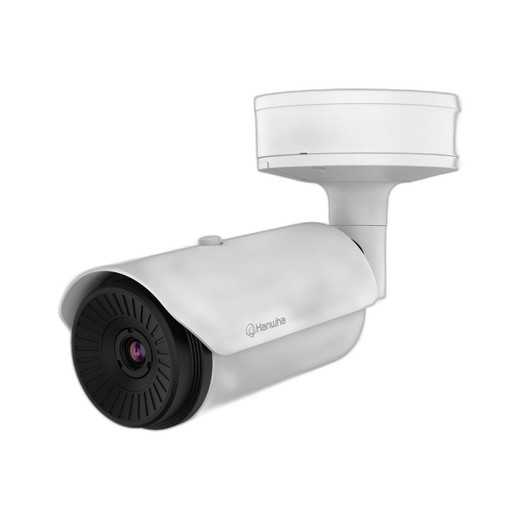

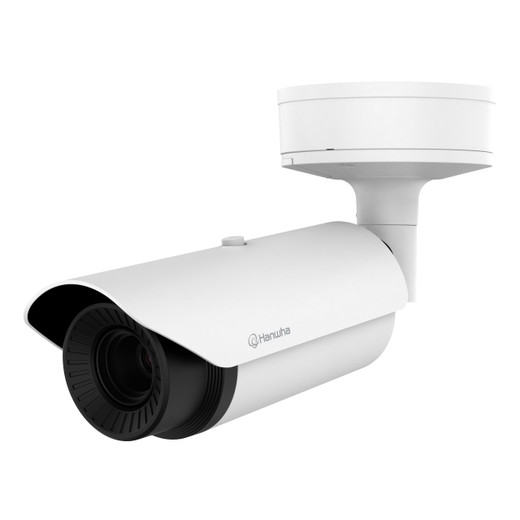

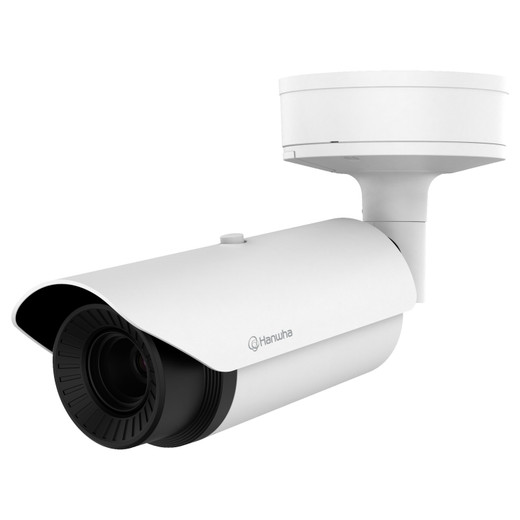

Hanwha TNO-L4030T VGA Thermal IP Camera

Hanwha TNO-L4030T VGA Thermal IP Camera

The Hanwha TNO-L4030T is a specialized thermal imaging solution engineered for surveillance in complete darkness, extreme weather, and obscured conditions where traditional visible-light cameras fail. Featuring VGA resolution (640×480) thermal imaging with an uncooled micro bolometer sensor and exceptional thermal sensitivity below 50mK NETD, this camera delivers precise temperature detection and reliable motion capture across challenging operational environments.

Key Features

• VGA thermal imaging (640×480, 640×360, 320×240) with 17µm pixel size
• Ultra-low thermal sensitivity: <50mK NETD for subtle temperature differentiation
• Advanced analytics: motion detection, directional detection, appear/disappear, enter/exit, loitering, tampering, virtual line, temperature detection, audio detection, and shock detection
• H.265/H.264/MJPEG video compression with WiseStream II smart codec for bandwidth optimization
• 8 motion detection zones with 8-point polygonal configuration; 32 privacy masking zones
• 13mm fixed focal lens (F1.0) with 48.6° horizontal field of view
• Multiple color palettes: Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet
• Digital image stabilization with built-in gyro sensor
• IP66, IK10, NEMA4X-rated rugged aluminum housing resistant to water, dust, and vandalism
• Wide operating temperature range: -40°C to +60°C (-40°F to +140°F)

Connectivity & Storage

The TNO-L4030T supports multiple power options—PoE (IEEE 802.3af Class 3), 24VAC, and 12VDC—enabling flexible deployment in diverse installations. Maximum power consumption is just 10W on PoE, minimizing infrastructure demands. Ethernet connectivity via RJ-45 (10/100BASE-T) supports IPv4/IPv6, RTSP, ONVIF Profile S/G/T, and Wisenet open platform integration. Edge storage via microSD/SDHC/SDXC slot (up to 256GB) ensures local recording capability during network interruptions. The camera also features 1 alarm input and 2 alarm outputs for integration with external systems.

Advanced Analytics & Compression

Embedded analytics deliver actionable intelligence without requiring external processing. Temperature detection capabilities enable facility monitoring, fire detection, and thermal anomaly identification. Motion detection across 8 zones, directional detection, and virtual line crossing trigger alerts and automated responses. WiseStream II compression reduces bandwidth and storage while maintaining image fidelity, supporting both CBR and VBR bitrate modes. Audio input/output via selectable mic or line input and line output enables two-way communication.

Technical Specifications

• Resolution: VGA thermal (640×480 primary)
• Frame rate: Max. 8.3fps (H.265/H.264/MJPEG)
• Focal length: 13mm fixed, F1.0 aperture
• Angular field of view: 48.6° (H) / 36.4° (V) / 61.6° (D)
• Minimum object distance: 5m (16.4ft)
• Video output: CVBS composite (720×480/576) + USB Type-B (1280×720) for installation
• RAM/Flash: 1024MB RAM, 256MB Flash
• Security: HTTPS/SSL, digest login, IP filtering, 802.1X authentication
• Dimensions: Φ101.97×401.8mm | Weight: 3.124kg (6.89 lb)

Applications

Ideal for perimeter security, industrial facility monitoring, critical infrastructure protection, outdoor surveillance in extreme weather, port and border security, wildfire detection, and 24/7 unattended monitoring where thermal imaging provides decisive advantages over conventional cameras.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-L4030T represents a mature thermal surveillance platform built on proven Hanwha engineering. Its sub-50mK thermal sensitivity and multi-spectrum analytics deliver reliable detection in zero-visibility scenarios—a critical advantage for outdoor perimeter defense and industrial applications where darkness, fog, rain, and dust eliminate visible-light alternatives. The integration of temperature detection with motion analytics enables dual-purpose deployments: security monitoring plus thermal anomaly identification (fire, equipment overheating).

WiseStream II compression is essential for thermal deployments where 24/7 recording at full resolution would strain storage; the intelligent codec preserves detail in motion areas while compressing static regions. The fixed 13mm lens and 48.6° horizontal FOV target mid-range standoff distances typical of facility perimeters and critical infrastructure. Robust IP66/IK10/NEMA4X construction ensures longevity in saltwater, industrial dust, and vandal-prone environments.

PoE power under 10W typical consumption allows standard network infrastructure deployment. ONVIF and Wisenet API support ensure vendor-neutral integration with enterprise VMS platforms. The 5-minute minimum object distance suits outdoor applications but requires careful deployment planning for close-range monitoring scenarios.
