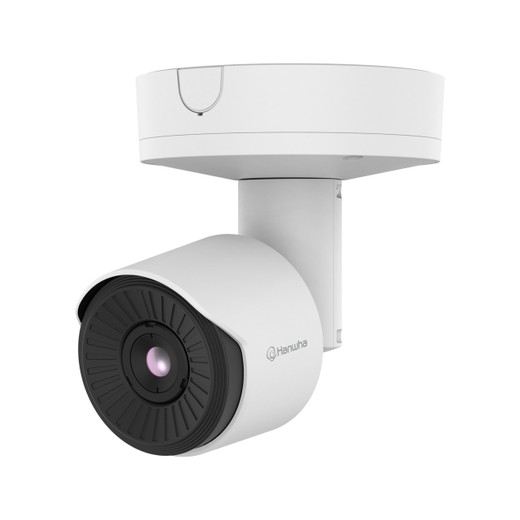

Hanwha TNO-C3010TRA Radiometric Thermal Bullet IP Camera

Hanwha TNO-C3010TRA Radiometric Thermal Bullet IP Camera

The Hanwha TNO-C3010TRA is a compact QVGA radiometric thermal bullet camera engineered for precise temperature monitoring and intelligent thermal surveillance. Built on an uncooled micro bolometer sensor with 8–14µm spectral range, this camera delivers accurate thermal imaging with exceptional sensitivity below 30mK (NETD), making it ideal for critical infrastructure, industrial process monitoring, and perimeter security applications requiring both detection and temperature measurement.

Key Features

• Uncooled micro bolometer thermal sensor with 8–14µm spectral range
• 768×576 QVGA resolution at up to 30fps H.265/H.264/MJPEG
• Thermal sensitivity <30mK (NETD) with 17µm pixel size
• Radiometric temperature detection: −40°C to +550°C range with ±2°C accuracy below 150°C
• 10 programmable polygonal ROI zones for targeted temperature monitoring
• 90° horizontal field of view with 4.4mm fixed focal lens (F1.0 aperture)
• AI-powered analytics: Person/Vehicle detection, virtual line crossing, loitering detection, intrusion alerts
• WiseStream II and III codec optimization for bandwidth reduction
• 8 configurable motion detection zones with privacy masking
• IP66, IK10, NEMA4X rated for harsh outdoor environments
• PoE (IEEE 802.3af) or 12VDC powered; typical 9W consumption
• Integrated microSD/SDHC/SDXC slot (up to 1TB) for edge storage
• Multiple color palette options: Whitehot, Blackhot, Rainbow, custom and hybrid modes

Technical Highlights

The TNO-C3010TRA combines thermal detection with intelligent video analytics. Its uncooled sensor eliminates cooling requirements, reducing maintenance and power demands while delivering sub-30mK sensitivity for fine thermal differentiation. Hybrid palette support and spot temperature reading enable both visual threat detection and precision industrial monitoring. The camera supports up to 10 independent ROI zones for condition-based alerts—temperature rise/fall, threshold breaches—critical for predictive maintenance and safety compliance.

Video compression via H.265/H.264 and WiseStream III AI-based codec optimization minimizes bandwidth while maintaining image fidelity. Unicast streaming to 20 simultaneous users or multicast distribution supports enterprise-scale deployments. RS-485 and 2 configurable I/O ports enable PTZ handover and third-party system integration. Alarm triggers include analytics events, network disconnect, time schedules, and MQTT subscriptions, with automated responses: file upload, email/FTP notification, SD card recording, and alarm output.

Security & Compliance

Enterprise-grade security includes TPM 2.0 (FIPS 140-2 Level 2), signed firmware, secure boot, and 802.1X authentication. ONVIF Profile S/G/T/M compliance ensures interoperability with third-party VMS platforms. Supports 16 interface languages and comprehensive audit logging for access control and system events.

Applications

• Industrial equipment and bearing temperature monitoring
• Electrical panel and junction box thermal surveillance
• Perimeter intrusion detection with thermal accuracy
• Fire prevention and early hotspot detection
• Critical infrastructure asset protection
• Research and environmental thermal analysis

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The TNO-C3010TRA excels where visible-light cameras fail: low-light, fog, and high-glare environments. Its uncooled design is rugged and field-serviceable compared to cooled thermal alternatives. At 30fps, it captures rapid thermal transients unsuitable for slower panoramic thermal cameras.

The radiometric accuracy (±2°C below 150°C) qualifies it for condition-based maintenance workflows, particularly in electrical and mechanical asset monitoring. WiseStream III integration reduces 24/7 thermal surveillance storage by 50–70%, critical for long-term edge retention. However, the fixed 4.4mm lens and 0.6m minimum focus distance limit applications requiring wide thermal coverage or close-range inspection; users needing zoom capability should consider multi-sensor systems.

The hybrid palette innovation bridges thermal sensitivity and human interpretation, reducing false alerts in dynamic environments. NEMA4X/IP66 rating and PoE efficiency make this a cost-effective choice for outdoor industrial deployments where thermal + motion analytics deliver compound security and safety value.
