Type:
Thermal Outdoor Fixed IP Camera
Frame Rate:
30fps
Imaging Device:
Uncooled micro bolometer:1/1.8" CMOS
Resolution:
8MP
Max. Framerate:
30fps
Thermal Sensitivity (NETD:
＜60mK:
Pixel Size:
12㎛:
Min. Illumination:
0.06 Lux color / 0.005 Lux B/W
Video Out:
USB : Micro USB Type B
Focal Length (Zoom Ratio:
25mm fixed focal:10.9~29mm(2.6x) motorized varifocal
Max. Aperture Ratio:
F1.0:F1.7(Wide)~F1.73(Tele)
Angular Field of View:
H: 17.4°, V: 13.1°
Min. Object Distance:
26m(85.30ft):Wide: 2.5m(8.20ft) / Tele: 6m(19.68ft)
Focus Control:
Fixed:Simple foucs
Camera Title:
Displayed up to 85 characters
Day & Night:
:Auto(ICR)
Backlight Compensation:
:BLC, WDR, SSDR
Wide Dynamic Range:
:WDR(120dB)
Digital Noise Reduction:
:SSNR V, WiseNR II
Digital Image Stabilization:
:Support(built-in gyro sensor)
Motion Detection:
8ea, polygonal zones
Privacy Masking:
6ea, rectangle zones; - Color: Gray/Black/White
Gain Control:
:Low / Middle / High
White Balance:
:ATW / AWC / Manual / Indoor / Outdoor
LDC:
:Support
Electronic Shutter Speed:
1/5–1/12,000sec
Analytics:
AI thermal analytics
Business Intelligence:
Vehicle counting:Vehicle counting
Alarm Inputs/Outputs:
4 configurable I/O ports
Alarm Triggers:
Analytics, Network disconnect, Alarm input
Alarm Events:
When alarm trigger occurred; - File upload(image) : e-mail/FTP; - Notification : e-mail; - Recording : SD/SDHC/SDXC or NAS recording at event triggers; - Alarm output; - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP); - Audio clip playback
Audio In:
Selectable(mic in/line in); Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out:
Line out, Max.output level: 1Vrms
Color Palettes:
Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Custom
Ethernet:
Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression:
H.265/H.264: Main/High, MJPEG
Audio Compression:
G.711 u-law / G.726 Selectable, G.726(ADPCM) 8KHz, +more
Smart Codec:
WiseStreamⅡ:Manual(5ea area), WiseStreamⅢ
Bitrate Control:
H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming:
Unicast(6 users) / Multicast; Multiple streaming(Up to 3 profiles)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security:
TPM 2.0 (FIPS 140-2 level 2); HTTPS(SSL) login authentication; Digest login authentication; IP address filtering; User access log; 802.1X authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2); Device certificate(Hanwha Techwin Root CA, pre-installed);
Application Programming Interface:
ONVIF Profile S/T, SUNAPI, Wisenet
Webpage Language:
English, French, German, Spanish, Italian, +more
Edge Storage:
Micro SD/SDHC/SDXC 2slots 512GB
RAM:
4GB RAM, 512MB FLASH
Operating Temperature / Humidity:
-40°C to +60°C;
Storage Temperature / Humidity:
-50°C to +60°C /
Certification:
IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
Input Voltage:
PoE+(IEEE802.3at, Class4), 12VDC
Power (Max:
23.5W
Color / Material:
White / Aluminum
RAL Code:
RAL9003
Product Dimensions / Weight:
353.4 * 287.5 * 191.2mm (13.92 * 11.32 * 7.53in) / 4.533kg
Detect (25PPM/ 8PPF:
:Wide: 200.1m(656.40ft) / Tele: 583.4m(1913.89ft)
Observe (63PPM/ 19PPF:
:Wide: 80.0m(262.56ft) / Tele: 233.3m(765.56ft)
Recognize (125PPM/ 38PPF:
:Wide: 40.0m(131.28ft) / Tele: 116.7m(382.78ft)
Identify (250PPM/ 76PPF:
:Wide: 20.0m(65.64ft) / Tele: 58.3m(191.39ft)
Product Type:
Thermal
Connectivity:
Wired
Power Type:
PoE
Night Vision:
Thermal
Thermal Sensitivity:
＜60mK:
Visible Resolution:
8MP
Housing Color:
White
Environment Rating:
Outdoor
Warranty:
3-year warranty
Package Contents:

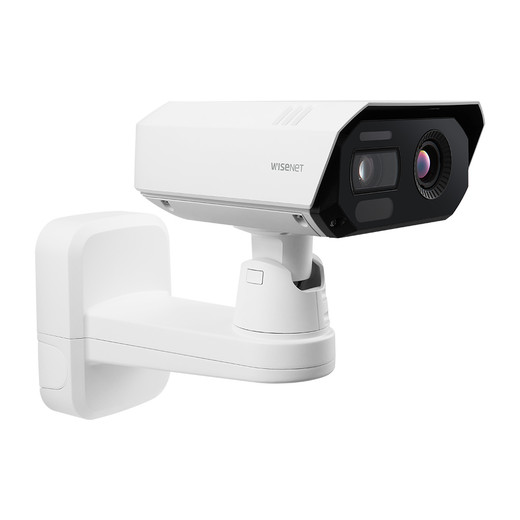

Your purchase includes: Hanwha TNM-C4960TD 4K Ultra HD AI Bi-Spectrum Thermal Network IP Camera The Hanwha TNM-C4960TD is the ultimate choice for those seeking high-quality surveillance and thermal imaging solutions. Elevate your security standards w
Poe Power:
PoE+ (802.3at)
Wdr:
WDR
Compression:
H.265; H.264; MJPEG
Onvif:
Yes
Audio:
Audio input
Lens Focal Length:
Varifocal 25 mm
Mount Type:
Wall; Pole
Camera:
Title Displayed up to 85 characters
Ethernet Rate:
Metal shielded RJ-45(10/100/1000BASE-T)
Application:
Programming Interface SUNAPI(HTTP API)
Memory:
4GB RAM, 512MB FLASH
Operating Temp:
/ Humidity * Start up should be done at above -30°C
Storage:
Temperature / Humidity -50°C to +60°C(-58°F to +140°F) / Less than 95% RH(Non-condensing)
resolution:
8 MP
ip_rating:
IP66
ik_rating:
IK10
poe_power:
PoE+ (802.3at)
ir_lowlight:
IR; Day/Night
lens_focal_length:
Varifocal 9-29 mm
Voltage:
12VDC
Wattage:
23.5W
Length:
7.53in
Compatible With:
scenarios
Connector:
RJ-45
PoE:
PoE
Color:
White
Screen Size:
7.53in
IP_Rating:
IP66 / IK10
WDR:
WDR (120dB)
IR_Lowlight:
Thermal imaging; Day/Night
Lens:
Varifocal 10.9–29mm visible; 25mm fixed thermal
Mount_Type:
Wall; Pole
Form_Factor:
Multi-Sensor (Dual thermal + visible)
Max_FPS:
30 fps
Min_Illumination:
0 lux (thermal on)
Operating_Temp:
-40°C to 60°C
Certifications:
TAA-compliant
VMS_Compatibility:
ONVIF; Hanwha Wisenet
PoE_Wattage:
23.5W
Power:
PoE
Voltage DC:
12VDC
