Type:
Thermal Outdoor Varifocal IP Camera
Frame Rate:
30fps
Imaging Device:
Uncooled micro bolometer:1/1.8" CMOS
Resolution:
Thermal: 640×480 (1280×960 scaled); Visible: 8MP (2560×1440 max)
Max. Framerate:
30fps
Thermal Sensitivity (NETD:
＜60mK:
Pixel Size:
12㎛:
Min. Illumination:
0.06 Lux color / 0 Lux IR
Video Out:
USB : Micro USB Type B, 1280x720 for installation
Focal Length (Zoom Ratio:
9.1mm fixed focal:4.4~9.3mm(2.2x) motorized varifocal
Max. Aperture Ratio:
F1.0:F1.3(Wide)~F2.15(Tele)
Angular Field of View:
H: 50.0°, V: 37.0°
Min. Object Distance:
3.5m(11.48ft):Wide: 1.75m(5.74ft) / Tele: 5.21m(17.09ft)
Focus Control:
Fixed:Simple foucs
Camera Title:
Displayed up to 85 characters
Day & Night:
:Auto(ICR)
Backlight Compensation:
:BLC, WDR, SSDR
Wide Dynamic Range:
:WDR(120dB)
Digital Noise Reduction:
:SSNR V, WiseNR II
Digital Image Stabilization:
:Support(built-in gyro sensor)
Motion Detection:
8ea, polygonal zones
Privacy Masking:
6ea, rectangle zones; - Color: Gray/Black/White
Gain Control:
:Low / Middle / High
White Balance:
:ATW / AWC / Manual / Indoor / Outdoor
LDC:
:Support
Electronic Shutter Speed:
1/5–1/12,000 sec
Analytics:
AI video analytics (visible); Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion, Stopped vehicle, Traffic jam
Business Intelligence:
Vehicle counting:Vehicle counting
Alarm Inputs/Outputs:
4 configurable I/O ports
Alarm Triggers:
Analytics, Network disconnect, Alarm input
Alarm Events:
When alarm trigger occurred; - File upload(image) : e-mail/FTP; - Notification : e-mail; - Recording : SD/SDHC/SDXC or NAS recording at event triggers; - Alarm output; - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP); - Audio clip playback
Audio In:
Selectable(mic in/line in); Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out:
Line out, Max.output level: 1Vrms
IR Viewable Length:
:30m (98.42ft)
Color Palettes:
Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Custom
Ethernet:
Metal shielded RJ-45(10/100/1000BASE-T)
Video Compression:
H.265/H.264: Main/High, MJPEG
Audio Compression:
G.711 u-law / G.726 Selectable, G.726(ADPCM) 8KHz, +more
Smart Codec:
WiseStreamⅡ:Manual(5ea area), WiseStreamⅢ
Bitrate Control:
H.264/H.265: CBR or VBR; MJPEG: VBR
Streaming:
Unicast(6 users) / Multicast; Multiple streaming(Up to 3 profiles)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security:
TPM 2.0 (FIPS 140-2 level 2); HTTPS(SSL) login authentication; Digest login authentication; IP address filtering; User access log; 802.1X authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2); Device certificate(Hanwha Techwin Root CA, pre-installed);
Application Programming Interface:
ONVIF Profile S/T, SUNAPI, Wisenet
Webpage Language:
English, French, German, Spanish, Italian, +more
Edge Storage:
Micro SD/SDHC/SDXC 2slots 512GB
RAM:
4GB RAM, 512MB FLASH
Operating Temperature / Humidity:
-40°C to +60°C;
Storage Temperature / Humidity:
-50°C to +60°C /
Certification:
IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
Input Voltage:
PoE+(IEEE802.3at, Class4), 12VDC
Power (Max:
25.5W
Color / Material:
White / Aluminum
RAL Code:
RAL9003
Product Dimensions / Weight:
353.4 * 287.5 * 191.2mm (13.92 * 11.32 * 7.53in) / 4.533kg
Detect (25PPM/ 8PPF:
:Wide: 51.7m(169.94ft) / Tele: 174.5m(572.64ft)
Observe (63PPM/ 19PPF:
:Wide: 20.7m(67.85ft) / Tele: 69.8m(229.06ft)
Recognize (125PPM/ 38PPF:
:Wide: 10.3m(33.93ft) / Tele: 34.9m(114.53ft)
Identify (250PPM/ 76PPF:
:Wide: 5.2m(16.96ft) / Tele: 17.5m(57.26ft)
Product Type:
Thermal
Connectivity:
Wired
Power Type:
PoE
Night Vision:
Thermal
Thermal Sensitivity:
＜60mK:
Visible Resolution:
8MP
Housing Color:
White
Environment Rating:
Outdoor
Warranty:
3-year warranty
Package Contents:

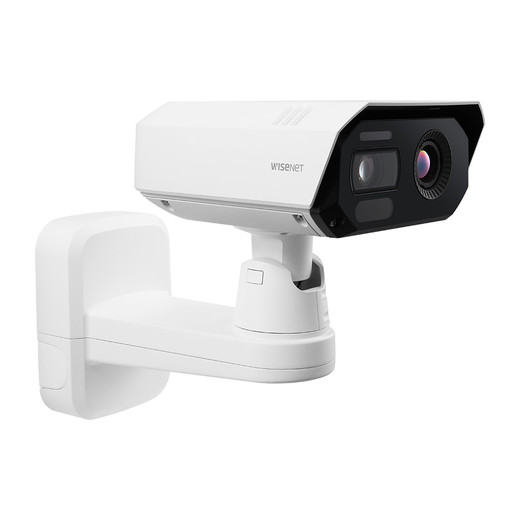

Your purchase includes: Hanwha TNM-C4940TD 4K Ultra HD AI Bi-Spectrum Thermal Network IP Camera The Hanwha TNM-C4940TD is a cost-effective thermal camera solution that combines cutting-edge technology with rugged design; ensuring optimal surveillance
Poe Power:
PoE+ (802.3at)
Wdr:
WDR
Ir Lowlight:
IR; 940nm (invisible)
Compression:
H.265; H.264; MJPEG
Onvif:
Yes
Audio:
Audio input
Lens Focal Length:
Varifocal 9.1 mm
Mount Type:
Wall; Pole
Camera:
Title Displayed up to 85 characters
Ethernet Rate:
Metal shielded RJ-45(10/100/1000BASE-T)
Application:
Programming Interface SUNAPI(HTTP API)
Memory:
4GB RAM, 512MB FLASH
Operating Temp:
/ Humidity * Start up should be done at above -30°C
Storage:
Temperature / Humidity -50°C to +60°C(-58°F to +140°F) / Less than 95% RH(Non-condensing)
resolution:
8 MP
ip_rating:
IP66/IP67
ik_rating:
IK10
poe_power:
PoE+ (802.3at)
ir_lowlight:
IR; 940nm (invisible)
lens_focal_length:
Varifocal 9.1 mm
mount_type:
Wall; Pole
Color:
0.06Lux(F1.3, 1/30sec)
Ethernet_Rate:
Metal shielded RJ-45(10/100/1000BASE-T)
Operating_Temp:
-30°C to +60°C (startup above -30°C); Storage -50°C to +60°C
Storage:
4GB RAM; 512MB FLASH
Input_Voltage:
PoE+(IEEE802.3at, Class4), 12VDC
Voltage:
12VDC
Wattage:
25.5W
Length:
7.53in
Compatible With:
critical
Connector:
RJ-45
PoE:
PoE
Screen Size:
7.53in
PoE_Power:
PoE+ (802.3at, Class 4); 12 VDC auxiliary
WDR:
WDR 120dB (visible channel)
IR_Lowlight:
Thermal 0 lux; Visible IR LED 940nm (invisible); Min illumination visible 0.06 lux (F1.3, 1/30 sec)
Compression:
H.265; H.264; MJPEG (thermal and visible independent)
Lens:
Thermal 9.1mm fixed (F1.0); Visible 4.4–9.3mm motorized varifocal (F1.3–F2.15)
Form_Factor:
Dome (compact outdoor)
Max_FPS:
30 fps (H.265/H.264 all resolutions); 3 fps (MJPEG thermal); 1 fps (MJPEG visible)
IR_Range:
30m
Sensor_Size:
Thermal: Uncooled microbolometer; Visible: 1/1.8" CMOS
Min_Illumination:
Visible color: 0.06 lux (F1.3, 1/30 sec); B/W: 0.004 lux (IR on)
VMS_Compatibility:
ONVIF Profile S/T; SUNAPI (HTTP API)
PoE_Wattage:
25.5W max
