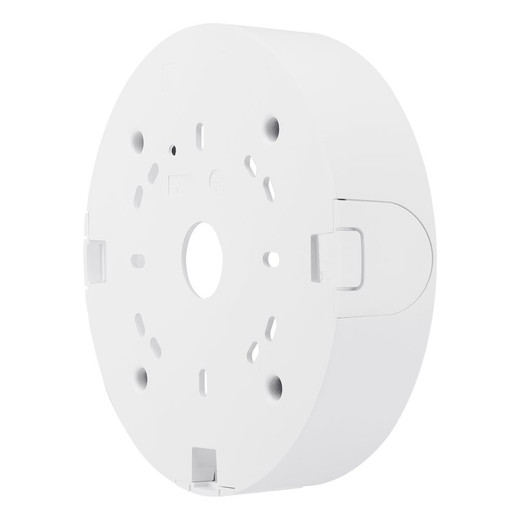

Hanwha SBV-A14B Polycarbonate Back Box for A Series Cameras
Overview
The SBV-A14B is a mounting back box engineered for Hanwha A Series IP cameras. It bridges the gap between your camera body and wall-mounted installation points, handling structural support and cable routing so you don't have to improvise conduit runs or custom brackets in the field. The unit is molded from white polycarbonate, measuring 5.67 inches in diameter and 2.01 inches in depth — dimensions that fit standard US electrical gang boxes without requiring custom framing or supplemental anchors. This compact footprint makes retrofit installations faster and cleaner than fabricating steel or aluminum mounting rails.
Key Features
- Polycarbonate Construction: Durable plastic resists UV degradation and won't rust, corrode, or conduct electricity if a wiring fault occurs — a real safety advantage over metal alternatives in transition spaces where drywall meets concrete or where older electrical runs might carry unexpected faults. The material maintains structural integrity through temperature swings and humidity cycles typical of indoor/outdoor borders.
- Standard Gang Box Compatibility: Mounts directly to US-standard electrical outlet boxes, eliminating custom drilling, welding, or rough-in framing. Installation time drops significantly on both new builds and retrofit jobs where you're replacing older analog cameras with modern networked systems.
- Built-in Conduit Passages: Pre-drilled holes route power and network cables through the back box without field drilling or field modification. Keeps PoE and Cat6/Cat6A runs organized, protected from pinching, and aligned with the camera's connector ports — reduces cable strain failures and makes later maintenance simpler.
- Compact Flush-Mount Profile: At 5.67 inches diameter and 2.01 inches depth, the SBV-A14B doesn't protrude excessively from walls, suitable for retail floors, office lobbies, warehouses, and other spaces where aesthetic or space constraints matter. The compact footprint also reduces snagging hazards in high-traffic areas.
- Hanwha A Series Optimization: Engineered specifically for A Series cameras, ensuring mounting screw spacing, conduit hole alignment, and structural stiffness match camera connector geometry. Works with complementary Hanwha mounting accessories, supporting a validated, end-to-end installation methodology across your deployment.
- Quick Assembly with Included Hardware: Comes with mounting screws pre-sized for gang box anchors. Eliminates material coordination delays and reduces the need to source fasteners on-site — your technicians can unpack and mount without additional supply runs.
Integration and Compatibility
Install the SBV-A14B behind any Hanwha A Series camera requiring wall mounting. Once secured to a gang box, attach your camera to the back box, route PoE and network cables through the conduit holes, and terminate at your network video recorder or managed switch. The design assumes standard PoE+ delivery — power and data travel a single Cat6/Cat6A run, simplifying site wiring. If you're planning a large multi-camera deployment, review your camera selection and power budget early; gang box locations and conduit runs should be mapped before wall cutouts.
What's in the Box
- 1x SBV-A14B Back Box (white polycarbonate)
- Mounting screws
Frequently Asked Questions
Q: Does the SBV-A14B work with non-Hanwha cameras?
A: The back box is designed and tested for Hanwha A Series cameras. While the physical form factor may be compatible with other compact dome or turret cameras of similar size, Hanwha does not publish cross-vendor compatibility. Test fit with your exact camera model before ordering for retrofit applications.
Q: Can I mount the SBV-A14B on drywall without an electrical box behind it?
A: No. The design expects a standard gang box for structural support and proper screw anchor points. Mounting directly to drywall will not distribute load correctly and is not recommended. Always use a standard electrical outlet box as the mounting base.
Q: What is the maximum camera weight the SBV-A14B supports?
A: Hanwha does not publish a weight rating for the back box. A Series cameras are compact (typically under 200 grams each), so overload is unlikely. If you're installing heavier third-party models or multiple cameras on a single back box, verify with Hanwha technical support before deployment.
Q: Are conduit holes pre-sized for standard cable?
A: Yes. Holes are pre-drilled for Cat6/Cat6A and standard power connectors. No field enlargement needed for typical PoE installations.
Q: Does the SBV-A14B include weatherproofing or gaskets?
A: The back box itself is polycarbonate and is not sealed. For outdoor or high-moisture installations, you may need to add weatherproofing around cable entries — consult your camera's environmental datasheet and local electrical code.
Q: Can I use the SBV-A14B with other Hanwha camera series?
A: The SBV-A14B is optimized for A Series cameras. Compatibility with other Hanwha series (Q, X, or P series) is not documented. Before ordering for different series, confirm mount geometry with Hanwha or your integrator.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBV-A14B solves a real problem: bringing compact Hanwha A Series cameras to wall-mounted locations without field-fabricating brackets or struggling with non-standard anchor points. At 5.67 inches diameter and 2.01 inches depth, this back box fits standard US electrical gang boxes — a constraint that matters more than you'd think when retrofitting older surveillance infrastructure.
Technical Highlights:
- Polycarbonate vs. Metal Mounting: UV-resistant plastic avoids corrosion and electrical hazards in transition zones (indoor-outdoor, high-humidity warehouses). Metal back boxes are heavier, require grounding, and oxidize in salt-air or chemical-rich environments. Polycarbonate is lighter to handle on ladders and simpler to install.
- Gang Box Integration: Pre-drilled holes and screw spacing match standard electrical outlet boxes — zero custom framing. This cuts installation labor on multi-camera jobs where you're upgrading from analog to networked systems. Rough-in work is already done.
- Cable Routing: Built-in conduit passages for PoE and Cat6/Cat6A eliminate improvised drilling and cable strain. On large deployments, cleaner conduit routing reduces troubleshooting time when cables fail or need relocation.
Deployment Considerations:
- Gang Box Requirement: This is not a drywall-mount back box. You must have a standard electrical outlet box installed first. On new builds, ensure electricians cut gang box openings during rough-in; on retrofits, you're limited to existing box locations.
- A Series Only: Hanwha does not document compatibility with other camera series or third-party domes. Confirm your camera model is A Series before ordering. If you're mixing camera types across a site, you'll need different back boxes per series.
- No Weatherproofing Built In: For outdoor or wet-environment installations, the polycarbonate back box itself is not sealed. You'll need to add gaskets or silicone around cable entries to meet environmental code — plan this during design, not in the field.
Position the SBV-A14B for mixed-use environments where you're upgrading Hanwha A Series cameras to existing gang box locations — retail floors, offices, and warehouse facilities with pre-existing electrical infrastructure. Skip this if you need outdoor-rated sealed housings or if your cameras are a different Hanwha series.
