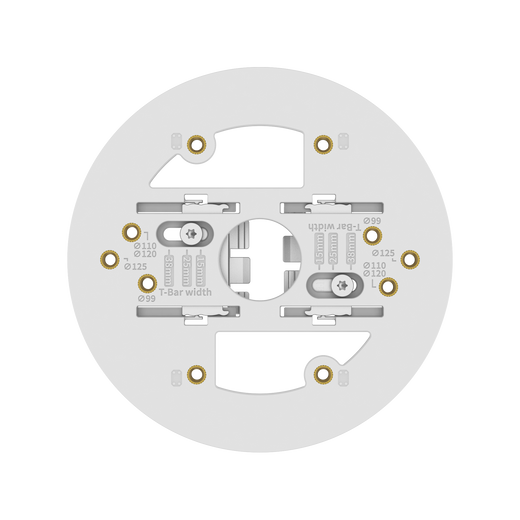

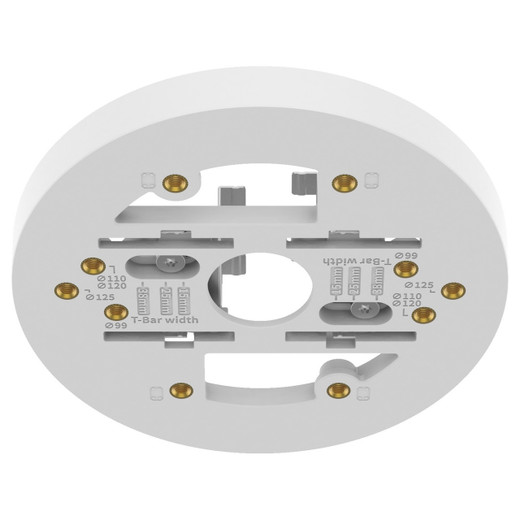

Hanwha SBP-140CMT Tile Grid Ceiling Mount
Overview
The Hanwha SBP-140CMT is a professional tile grid ceiling mount engineered for flush integration of dome and compact surveillance cameras into suspended ceiling environments. Designed for commercial installations—offices, retail spaces, hospitality venues, and institutional facilities—this mount maintains architectural aesthetics while delivering secure, unobtrusive camera placement. If your facility uses drop-ceiling grids and you need cameras that don't scream surveillance, this is the platform to build on. The mount uses a polycarbonate plate with aluminum rail construction, keeping weight minimal while maintaining rigidity under load.
Key Features & Specifications
- 140mm diameter compact footprint (5.5 inches): Sized to fit standard suspended ceiling tiles without requiring structural modification—install and forget about ceiling integration logistics.
- 2.5kg load capacity (5.51 lbs): Accommodates Hanwha compact and small dome models in the QNV-C, ANE-L, and XND-C series without strain; critical constraint if you plan to stack multiple devices or upgrade to heavier fixtures later.
- 27.5mm mounting depth: Minimal protrusion into the plenum space—important in retrofit scenarios where ceiling void depth is limited.
- TR20 screw interface: Standard Hanwha mount thread; check your camera's base for TR20 compatibility before ordering (Hanwha Toolbox application lists compatible models).
- Polycarbonate + aluminum construction: Resists vibration and provides long-term rigidity in HVAC-heavy environments where ceiling vibration is common.
- RAL9003 finish (white): Matches standard suspended ceiling color palettes; integrates visually with grid and diffuser panels without repainting or finishing work.
- Operating range -10°C to +45°C, 5–90% RH non-condensing: Handles typical office and retail climate control; won't support unheated warehouses, outdoor soffits, or industrial freezer environments. Storage tolerance extends to -30°C to +60°C.
Integration & Compatibility
The SBP-140CMT pairs with Hanwha QNV-C series models (C8011R, C8012, C9011R, C8083R, C9083R), ANE-L series (L6012R, L7012R, L7012L), and XND-C/XND-7 series (C6083RV, C7083RV, C8083RV, C9083RV). Before finalizing your camera selection, cross-reference your chosen model against the Hanwha compatibility matrix—the Hanwha Toolbox application automates this lookup and will flag unsupported combinations. If you're integrating with a third-party VMS or network architecture, the mount itself is transparent—it simply positions the camera; camera-to-VMS integration is independent of the mount.
When to Choose a Different Accessory
If your space uses exposed conduit ceilings, steel beam structures, or wall-mounted installations, this tile grid mount won't apply. If you need to support cameras heavier than 2.5kg, evaluate wall-mount or pendant variants in the Hanwha accessory family. If your facility requires outdoor soffits or unheated plenums, the operating temperature range makes this unsuitable—step up to a weatherproof outdoor mount rated for your climate zone.
Frequently Asked Questions
Q: Is the SBP-140CMT compatible with all Hanwha dome cameras?
A: No. Compatibility is limited to specific compact and small dome models in the QNV-C, ANE-L, and XND-C/XND-7 series. Use the Hanwha Toolbox application or the compatibility matrix to verify your chosen camera before purchasing the mount.
Q: What's the maximum weight I can safely mount on the SBP-140CMT?
A: The mount supports a maximum load of 2.5kg (5.51 lbs). Exceeding this rating risks structural failure or ceiling grid damage. Confirm your camera's weight before installation.
Q: Can I use the SBP-140CMT in an outdoor soffit or unheated warehouse?
A: No. The operating temperature range is -10°C to +45°C. Unheated or outdoor environments require a weatherproof outdoor mount variant. Check your facility's climate control specs before ordering.
Q: What tools and hardware come with the mount?
A: See the package contents section below. Verify all fasteners and shims are included before installation to avoid site delays.
Q: Does the SBP-140CMT work with ceiling grids other than 600x600mm?
A: The 140mm diameter and 27.5mm depth are optimized for standard 15mm or 24mm T-grid suspended ceilings. Verify your ceiling grid profile before installation; non-standard or drop-frame systems may require adaptation.
Q: Is any integration or configuration required once the mount is installed?
A: No. The mount is a passive mechanical interface. Once the camera is secured with the TR20 screw, network and VMS configuration depend entirely on the camera and your surveillance system—the mount plays no role.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SBP-140CMT is a straightforward mechanical solution for a common integration problem: hiding cameras in drop-ceiling environments without leaving obvious cutouts or supporting structure visible. The 140mm footprint and 27.5mm depth are precisely calibrated to work within standard 15mm or 24mm T-grid profile without requiring plenum modifications. This matters more than it sounds—site delays from unexpected structural constraints are real, and this mount eliminates that entire category of delay if your ceiling grid matches spec.
Technical Highlights:
- 2.5kg load capacity with polycarbonate + aluminum frame: Light enough to avoid overloading grid support clips, yet rigid enough to resist vibration in HVAC plenums where air circulation is continuous. Test the grip on your grid clips beforehand if your ceiling is older or damaged.
- RAL9003 white finish: Blends seamlessly with standard suspended ceiling color; avoids repainting and accelerates approval in retrofits where facility management reviews aesthetics closely.
- TR20 mount standard: Confirms to Hanwha compact dome interface—verify compatibility before ordering. Hanwha Toolbox is the authoritative reference; don't guess from model numbers alone.
- Operating temperature -10°C to +45°C: Works in climate-controlled offices and retail; ruled out entirely for warehouses, unheated loading docks, or outdoor soffits. Know your facility's temperature envelope before commit.
Deployment Considerations:
- Ceiling grid condition is critical—loose or damaged grid clips will transmit vibration to the camera, degrading image quality over time. Inspect and reinforce grid anchors if your facility has older tile systems.
- The mount is passive; all power and data routing happens through the camera itself. Plan PoE runs to the grid above the drop ceiling, then drop cabling through the plenum to the mount location—don't route cables through occupied space if fire code applies.
- The 2.5kg hard cap is a real limitation. If you later need to upgrade cameras or add external housing, you'll exceed this load and require a different mount. Plan for growth during initial design.
Use the SBP-140CMT for drop-ceiling installations in corporate offices, retail front-of-house areas, and hospitality venues where architectural aesthetics matter and camera weight is predictable. If your ceiling is exposed structure, wall-mounted, or outdoor—stop here and specify a different mount type.
