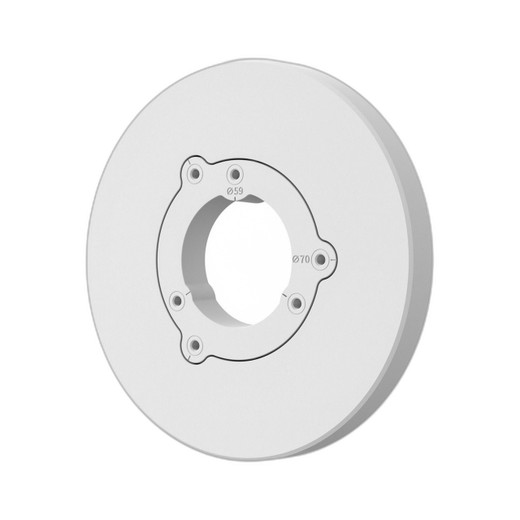

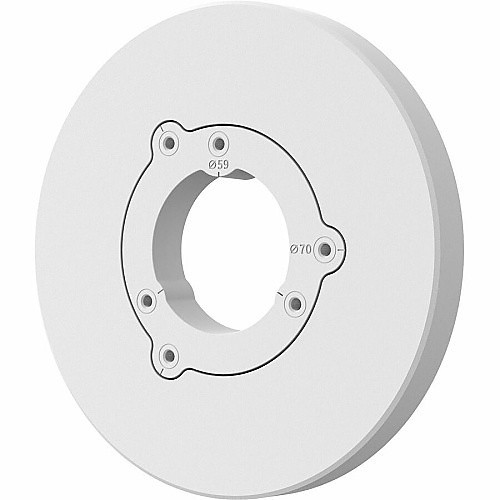

Hanwha SBO-090GP Gangbox Adapter Plate
Overview
The SBO-090GP is a precision mounting adapter designed to eliminate the friction of retrofitting Hanwha IP cameras onto electrical enclosures, junction boxes, and gangboxes. Rather than drilling custom holes or using improvised brackets, this plate gives you a standardized interface — think of it as the mechanical handshake between your camera and your existing electrical infrastructure.
Built from an aluminum core with plastic cap construction, the SBO-090GP weighs just 190g, so installation overhead is minimal. The circular form factor (ø140 x 13.2mm) is compact enough to fit standard gangbox knockouts without excessive protrusion, and the white finish blends into most facility environments without standing out as a retrofit hack.
Key Features
- TR20 mount threading: Provides secure fastening with a standard-size screw that won't strip under vibration or thermal cycling. This matters in outdoor or high-traffic installations where repeated wind or equipment vibration can loosen cheaper fasteners over time.
- Aluminum and plastic composite construction: Aluminum core handles structural load without excessive weight; plastic cap resists corrosion and UV degradation. Useful if the gangbox is outdoors or in a damp environment where bare metal would rust.
- ø140mm circular form factor: Sized to fit standard electrical gangbox knockouts. Oversized plates waste space and look unprofessional; undersized ones won't cover the hole properly. This dimension is the sweet spot for most commercial installations.
- 190g lightweight design: Reduces load on the gangbox itself and keeps installation labor simple — one person can handle mounting and alignment without needing a second set of hands to stabilize a heavy bracket.
- White finish: Matches common electrical box and conduit colors, reducing the visual clutter of a security retrofit. Matters for retail, hospitality, or institutional deployments where exposed mounting hardware looks unprofessional.
- Universal compatibility with 8 Hanwha camera models: Works with QNO-C8083R, QNO-C9083R, ANO-L6012R, ANO-L6022R, ANO-L6082R, ANO-L7012R, ANO-7022R, and ANO-7082R. Before ordering, verify your specific camera model against this list to avoid compatibility surprises on-site.
Integration & Compatibility
The SBO-090GP is purpose-built for Hanwha surveillance cameras and fits into installations where electrical infrastructure is already in place. Gangbox mounting is common in retail point-of-sale areas, warehouse overhead systems, and facility entrance/exit points where power and network runs already exist. By mounting directly to the gangbox, you eliminate the need for separate wall mounts, corner brackets, or pendant hardware — reducing bill-of-materials cost and simplifying cable routing.
Installation works best when the gangbox has a knockout hole that aligns with your camera's field of view. If the knockout is offset or blocked by conduit, you may need a different mounting strategy. Test fit before committing to this adapter in installations where gangbox placement is questionable.
When to Choose a Different Approach
If your gangbox is indoors and you need maximum flexibility for aim adjustment, consider a standard adjustable wall mount instead — it offers ball joints and tilt range that a fixed plate does not. If you need to mount multiple cameras to the same electrical run, a cable tray or conduit-mounted bracket bar may be more cost-effective than individual adapters. If your camera model is not in the eight listed above, this plate will not mount it.
Ted PerryPerspective based on aggregated and affiliated engineering team experience.
The SBO-090GP solves a real installation problem: gangbox-mounted cameras need a clean, secure interface, and the SBO-090GP (often searched as SBO 090GP) delivers exactly that without overengineering. The aluminum-plastic composite is the right material choice — aluminum carries load, plastic protects against corrosion and UV, and the two-part construction keeps weight under 200g. That matters when you're mounting to an electrical box that wasn't originally designed to carry camera loads.
Technical Highlights:
- TR20 screw threading: Standard metric threading resists vibration-induced loosening far better than cheaper plastic anchors. In outdoor or loading-dock environments where trucks pass nearby, this is the difference between a stable, level camera and one that drifts out of alignment every few months.
- ø140 x 13.2mm profile: Designed to fit standard electrical knockouts — no adapter ring, no modification to the box itself. Saves labor and avoids damage to existing infrastructure.
- 190g weight: Minimal load on the gangbox structure itself. Matters if the box is mounted on a thin partition wall or is part of a shared mechanical/electrical run where extra load could affect other systems.
Deployment Considerations:
- Verify your camera model is on the compatibility list before ordering. Eight models are supported; if yours isn't one of them, this plate won't fit.
- Test knockouts for alignment. A gangbox knockout that's blocked by conduit or offset from your desired camera angle will require a different mounting solution — this plate is fixed, not adjustable.
Best fit: retail chain rolling out gangbox-mounted cameras to every location (fast, standardized, professional appearance), warehouse door monitoring (robust against vibration and thermal cycling), and facility retrofits where electrical infrastructure is already mature and camera placement is architecturally fixed.
Frequently Asked Questions
Q: Is the SBO-090GP compatible with non-Hanwha cameras?
A: No. The SBO-090GP is designed specifically for the eight listed Hanwha camera models. Using it with a different brand or model may result in misalignment or inadequate mounting security.
Q: What is the maximum weight load the SBO-090GP can support?
A: The plate itself is rated for cameras up to approximately 2kg (4.4 lbs). Most Hanwha compact cameras fall in this range. Verify your specific camera weight against this limit before deployment.
Q: Can the SBO-090GP be mounted outdoors?
A: Yes. The aluminum core with plastic cap construction resists corrosion and UV exposure. However, ensure the gangbox itself is rated for outdoor use and that all conduit/power runs meet local electrical codes for external installations.
Q: Does the plate include mounting hardware?
A: The plate includes the TR20 threaded interface. You will need to source an appropriate TR20 fastener (screw) and any additional hardware required by your specific gangbox design. Check your camera's mounting documentation for exact screw specifications.
Q: How much installation time does this save compared to custom drilling?
A: By fitting standard electrical knockouts, the SBO-090GP eliminates hole-drilling and reduces alignment time to roughly 5–10 minutes per camera. Multiply that by dozens of locations in a chain deployment, and labor savings are significant.
Q: Does the white finish hold up in dusty or grimy environments?
A: The plastic cap resists dust accumulation better than bare aluminum, but in high-dust environments (grain facilities, manufacturing plants) expect periodic cleaning. The finish itself will not degrade, but visible dirt may accumulate over time.
