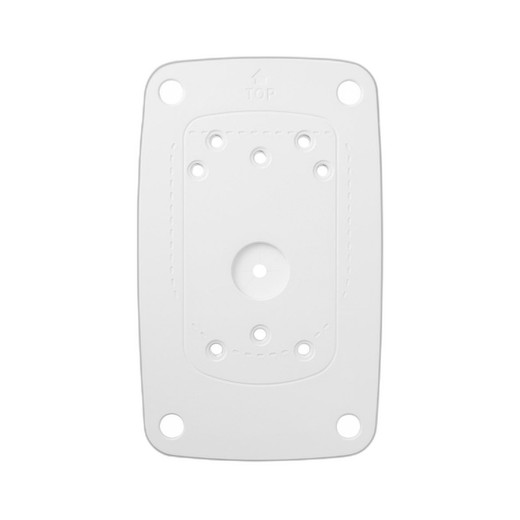

Hanwha SBB-300PMW1 Installation Plate

Hanwha SBB-300PMW1 Installation Plate

The Hanwha SBB-300PMW1 is a precision aluminum mounting plate engineered to deliver a standardized interface for deploying Hanwha's compact PTZ and fixed camera series. This is not a universal bracket — it's a purpose-built interface that eliminates adapter confusion and ensures repeatable, secure camera positioning across multi-camera installations.

Key Features

• Aluminum construction with RAL9003 white powder coat: Corrosion resistance matters when cameras are deployed in mixed indoor/outdoor environments or high-humidity zones. The powder coat finish won't chip or corrode under UV exposure or salt-air conditions the way bare aluminum or painted surfaces do — reduces field service calls for remounting.
• Compact 110 x 181mm footprint: Small enough to mount in tight spaces (corner installations, cable tray brackets, conduit runs) without requiring oversized wall or ceiling penetrations. Larger plates often force relocations or require drilling through structural members — this one fits standard structural spacing.
• M6 screw compatibility: Standardized metric mounting means you're not carrying different hardware for different camera brackets. Works with existing M6 anchor systems (concrete expansion anchors, threaded rods, cabinet rails). No proprietary fasteners to track or backorder.
• Lightweight at 390g (0.86 lbs): Reduces strain on ceiling grids, conduit supports, and wall anchors — especially critical in retrofit installations where the mounting surface was never rated for heavy loads. A handful of cameras across a facility adds up; this weight efficiency matters on the aggregate.
• Compatible with SHB-4200, SHB-4300, SHB-4301 series and SBP-300PMW1 cameras: Confirms mechanical fit with these specific models. If you're mixing camera families or deploying second-generation hardware alongside newer models, verify compatibility before ordering — this plate is not backward-compatible with earlier or unrelated Hanwha lines.

Integration & Compatibility

The SBB-300PMW1 (often searched as SBB 300PMW1) is a drop-in interface for the SHB-4200, SHB-4300, SHB-4301, and SBP-300PMW1 camera families. It does not include cable management, strain relief, or weatherproof conduit provisions — those are handled separately at the camera and conduit level. If you're deploying outdoor cameras, plan weatherproof junction boxes at the plate/camera interface. For indoor retail or office installs, the plate pairs directly with standard wall or ceiling anchors.

When specifying mounting hardware, confirm anchor capacity for your substrate (drywall, concrete, metal stud). M6 anchors are widely available (plastic toggle bolts for drywall, wedge anchors for concrete, self-drilling for metal), but undersized anchors create safety and vibration issues — a $30 bracket pulling loose is a $5,000+ site visit.

Frequently Asked Questions

Q: Does the SBB-300PMW1 work with non-Hanwha cameras?

A: No. The plate is designed for mechanical and electrical fit with Hanwha SHB and SBP series cameras only. Adapter plates may exist for other brands, but they are not manufactured or supported by Hanwha.

Q: Can I mount the SBB-300PMW1 on drywall, or do I need concrete?

A: Drywall is acceptable if you use proper drywall anchors (toggle bolts or molly anchors rated for the camera weight). For concrete, use expansion anchors or threaded rods. The plate itself is substrate-agnostic — the limiting factor is anchor capacity and the camera's total weight on the mounting surface.

Q: Is weatherproofing included?

A: No. The plate provides mechanical mounting only. For outdoor deployments, install weatherproof conduit and junction boxes at the plate/camera connection to protect the electrical interface from rain and condensation.

Q: What is the maximum camera weight supported?

A: The plate itself is aluminum and can handle compact PTZ and fixed cameras in the SHB/SBP range. For exact load limits, check the camera's technical specifications and verify your anchor system's shear and tensile rating for your substrate type.

Q: Can the plate be painted or finished differently?

A: The plate ships with RAL9003 (white) powder coat. Custom finishes are not available; repainting voids the corrosion warranty. If you need a different color, plan repainting after installation and allow full cure time before mounting cameras.

Q: Where do I source M6 anchors and fasteners?

A: M6 hardware is standard metric fastening. Any industrial or hardware supply distributor (McMaster-Carr, Grainger, Fastenal) carries appropriate anchors for your substrate — specify the material (drywall, concrete, steel) and load when ordering.

Ted Perry

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SBB-300PMW1 is a deceptively important piece — it's the interface between your structural substrate and a camera that will sit there for five years. Too many integrators treat mounting plates as commodity items and then spend weeks on callbacks because an undersized anchor failed or the wrong bracket created vibration at the camera lens. This plate solves a specific problem: it gives you a repeatable, corrosion-resistant interface for Hanwha's SHB and SBP families without forcing you to design a custom bracket for every installation.

Technical Highlights:

• RAL9003 white powder coat on aluminum: Powder coat is a thicker, more durable finish than paint or bare aluminum — it resists salt spray, UV degradation, and minor mechanical damage. In coastal or industrial environments, this finish choice cuts maintenance and repainting cycles compared to painted brackets.
• 110 x 181mm footprint: This is compact enough to fit standard 16-inch on-center wall framing and ceiling grid without requiring offset drilling, but large enough to distribute camera load across multiple anchor points. The geometry is not accidental.
• M6 metric fastening: A universal standard means you're not dependent on Hanwha-branded hardware. You can source anchors from any industrial distributor, and your team knows how to select and install them without special tools.
• 390g weight: Negligible in isolation, but on a 40-camera retail deployment, lightweight brackets reduce cumulative load on ceiling grids and cut vibration transfer from HVAC and foot traffic above.

Deployment Considerations:

• Verify anchor capacity for your substrate before installation. A $25 anchor rated for 50 lbs on drywall will fail if you hang a 35-lb PTZ on it — the math is unforgiving.
• Plan weatherproofing at the plate/camera interface for outdoor installs. The plate itself is corrosion-resistant, but exposed electrical connectors at the bracket are not. Conduit boots or weatherproof junction boxes are non-negotiable.
• Do not reuse this plate across camera families — the mechanical interface is specific to SHB-4200, SHB-4300, SHB-4301, and SBP-300PMW1. Mixing generations forces custom adapters, which you do not want in the field.

Deploy the SBB-300PMW1 for multi-camera Hanwha rollouts in retail, office, and light industrial environments where you need a standard interface and don't want to design bracket geometry for each location. It's not a universal solution — it's a focused, well-engineered answer to a specific problem.
