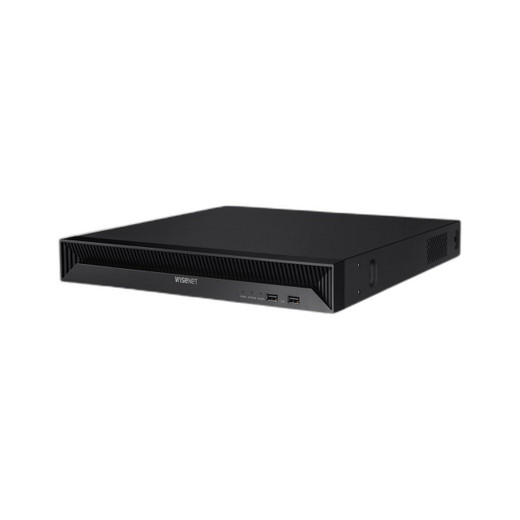

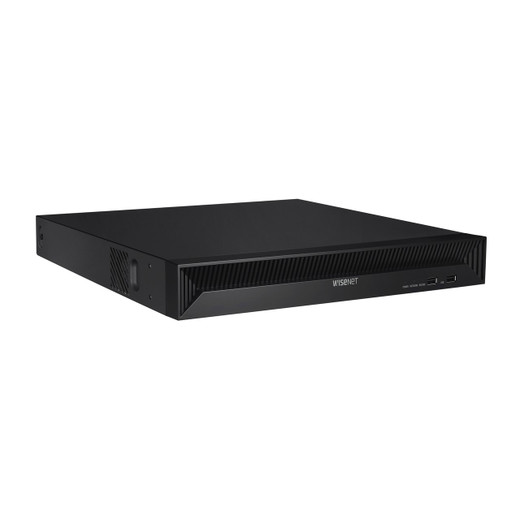

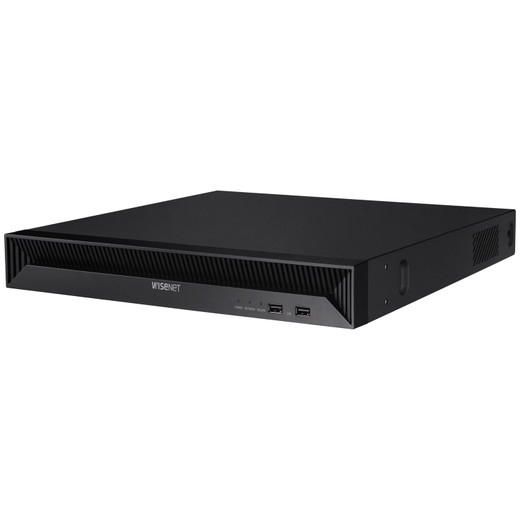

Hanwha QRN-1630S 16 Channel PoE NVR

Hanwha QRN-1630S 16 Channel PoE NVR

The Hanwha QRN-1630S is a professional-grade 16-channel network video recorder designed for mid-to-large scale surveillance deployments. Built on Linux embedded architecture, this PoE-powered NVR delivers reliable recording, playback, and remote monitoring with enterprise-class redundancy and failover capabilities. Its integrated PoE capability eliminates the need for separate power supplies at camera locations, simplifying installation and reducing infrastructure costs.

Key Features

• 16-channel PoE NVR with 130W PoE budget for direct camera power delivery
• Support for 8MP resolution recording with H.265, H.264, and MJPEG compression
• Dual HDMI outputs with 4K local display (HDMI1: 3840×2160@30Hz) and full HD secondary monitor (HDMI2: 1920×1080@60Hz)
• Up to 20TB storage capacity with dual SATA HDD slots (supports 10TB drives)
• 128Mbps maximum recording bandwidth for high-quality continuous capture
• Advanced motion detection and video analytics event triggering with automatic responses
• P2P connectivity with QR code setup for rapid deployment and remote access
• Multi-user remote access: 3 simultaneous search users and 10 live unicast users
• IP address filtering, 802.1x authentication, and device certificate encryption for security
• N+1 failover redundancy and Automatic Recovery Backup (ARB) for edge recording retrieval

Technical Highlights

Recording & Playback: The QRN-1630S supports multiple recording modes including normal, dual-stream, schedule-based, and event-triggered recording with pre/post event buffering. Playback bandwidth reaches 32Mbps with up to 40 simultaneous channels (16 local, 8 per remote user). Advanced search capabilities include calendar-based date/time lookup, event list filtering, text search, and smart search functionality.

Network & Connectivity: Equipped with 16 PoE RJ-45 ports (10/100) plus one dedicated 1Gbps LAN/WAN port. Full protocol support includes ONVIF Profile-S, SUNAPI, IPv4/IPv6, RTSP, HTTP, HTTPS, DDNS, and SNMP. Hanwha DDNS integration enables reliable remote access without static IP configuration.

Audio & Communication: 16-channel network audio input/output with G.711, G.726, and AAC codec support enables two-way audio communication for interactive monitoring and alarm response scenarios.

Viewer & Management: Compatible with multiple software platforms including WAVE, SSM, Webviewer, Smart Viewer, and Wisenet Viewer. Web browser support includes Chrome, Edge, and Safari on Windows 10 and macOS 11. Mobile access via iOS and Android with RTP, RTSP, HTTP, and CGI protocol support.

Applications

Ideal for retail environments, office complexes, industrial facilities, educational institutions, and healthcare settings requiring reliable mid-scale video surveillance with integrated power delivery and enterprise redundancy features.

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The QRN-1630S represents a balanced platform for organizations seeking simplified network camera deployment through integrated PoE capability. The 130W PoE budget accommodates most mid-range network cameras without additional power infrastructure. H.265 codec support reduces storage requirements while maintaining image quality, particularly valuable when maximizing 20TB storage capacity across 16 channels.

The dual HDMI output configuration with independent resolution control enables simultaneous 4K monitoring and standard definition secondary display—useful in control room environments requiring both detail and overview coverage. N+1 failover and ARB features provide business continuity for mission-critical installations, while ONVIF/SUNAPI interoperability supports heterogeneous camera ecosystems. The 300-preset PTZ control and 4/8-point polygon motion detection offer sophisticated scene coverage configuration.

Consider that maximum 128Mbps recording bandwidth distributes across all 16 channels, requiring bitrate prioritization for high-resolution simultaneous recording. Web viewer compatibility limited to Chrome, Edge, and Safari may restrict deployment in some enterprise Firefox-standard environments.
