Hanwha PNM-9002VQ
Hanwha PNM-9002VQ
Product images are provided for reference and may not represent the exact model, configuration, or included components.

Overview

SKU: PNM-9002VQ
Availability: No Longer Available
Write a Review

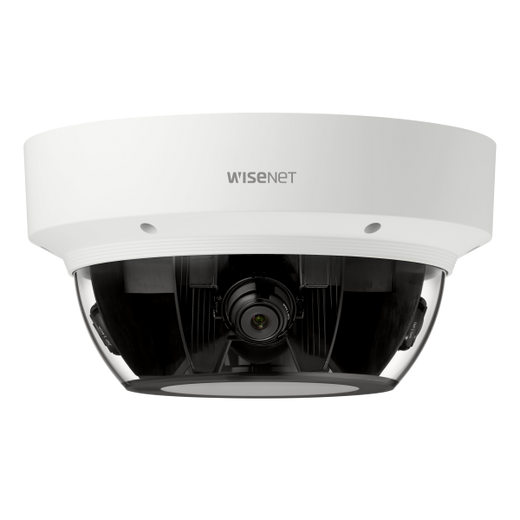

Hanwha PNM-9002VQ 4x 2MP / 5MP Multi-sensor Multi-directional IP Camera

Exchangeable 4ea x 2MP / 5MP lens modules8MP to 20MP resolution depending on the combination of lens modules 60fps@2MP, 30fps@5MP (H.265 / H.264) WDR …

Add to cart for sale price
$99,999.99
Ships same business day
In stock

Quantity:

Adding to cart… The item has been added
Compatibility guidance available for your deployment
Certified experts for pre and post-sales support
Authorized sourcing and documentation support
Shipping and lead-time confirmation before install
Bryan

Talk to Bryan

200+ hrs training • U.S - based

Certified Expert • 877-277-7147

Live Chat Call

Hanwha PNM-9002VQ 4x 2MP / 5MP Multi-sensor Multi-directional IP Camera

$99,999.99
Add to Cart

Overview

SKU: PNM-9002VQ
Availability: No Longer Available
Description
  • Exchangeable 4ea x 2MP / 5MP lens modules8MP to 20MP resolution depending on the combination of lens modules
  • 60fps@2MP, 30fps@5MP (H.265 / H.264)
  • WDR 150dB with 2MP lens module, 120dB with 5MP lens module
  • 2.4mm, 2.8mm, 3.6mm, 6mm fixed lens (2MP module)
  • 3.7mm, 4.6mm, 7mm fixed lens (5MP module)
  • H.265, H.264, MJPEG codec, Multi streaming support
  • Video analytics, WiseStream II
  • IP66, IK10, SD / SDHC / SDXC memory 4 slots
  • Lens modules are required, not included with the camera
Expert Analysis
Specifications
Resolution: [5MP] 2560x1920, 2560x1440, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 320x240 [2MP] 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640
Max. Framerate: H.265/H.264: 2MP Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Video Out: CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation
Optional Lens: SLA-2M2400Q(2MP 2.4mm) SLA-2M2800Q(2MP 2.8mm) SLA-2M3600Q(2MP 3.6mm) SLA-2M6000Q(2MP 6.0mm) SLA-5M3700Q(5MP 3.7mm) SLA-5M4600Q(5MP 4.6mm) SLA-5M7000Q(5MP 7.0mm)
Camera Title: Displayed up to 85 characters
Day & Night: Auto(Electrical)
Backlight Compensation: BLC, HLC, WDR, SSDR
Wide Dynamic Range: 150dB
Digital Noise Reduction: SSNRⅤ
Digital Image Stabilization: Support
Defog: Support
Motion Detection: 8ea, 8point polygonal zones
Privacy Masking: 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic
Gain Control: Low / Middle / High
White Balance: ATW / AWC / Manual / Indoor / Outdoor
LDC: Support
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation: Flip, Mirror, Hallway view(90˚/270˚)
Analytics: Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line
Alarm Triggers: Analytics, Network disconnect
Alarm Events: File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC recording at event triggers
Ethernet: Metal shielded RJ-45(10/100BASE-T)
Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec: Manual(5ea area), WiseStreamⅡ
Bitrate Control: H.264/H.265: CBR or VBR MJPEG: VBR
Streaming: Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security: HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface: ONVIF Profile S/T SUNAPI(HTTP API)
Webpage Language: English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
Edge Storage: Micro SD/SDHC/SDXC 4slot 256GB(Each CH)
RAM: 3GB RAM, 768MB Flash
Operating Temperature / Humidity: -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH
Storage Temperature / Humidity: -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification: IP66, IK10
Input Voltage: PoE+(IEEE802.3at, Class4)
Power (Max: Max 25.5W
Color / Material: White / Aluminum
RAL Code: RAL9003
Product dimensions / weight: Ø253mmx130mm, 3000g
Conduit hole: 3/4"
Hanging mount(Dome: SBP-276HMW
