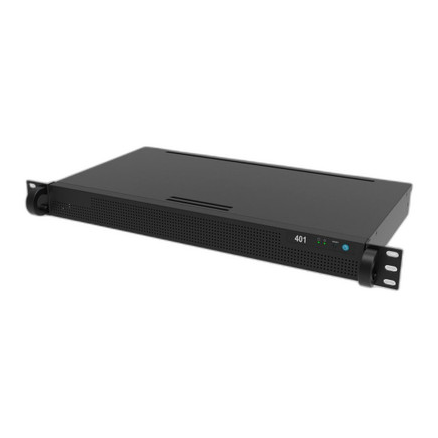

Hanwha Bridge-401 Wisenet SKY Network Video Recorder

Hanwha Bridge-401 Wisenet SKY Network Video Recorder

The Hanwha Bridge-401 is a compact, enterprise-grade network video recorder (NVR) purpose-built for mid-scale IP camera deployments. This 1U rack-mount device combines efficient video storage, dual-gigabit connectivity, and cloud analytics capabilities to support security operations across retail, office, corporate, and multi-facility environments. Running on embedded Linux, the Bridge-401 delivers stability and security with minimal operational overhead.

Key Features

• Supports up to 50 cameras at 1MP or 35 cameras at 4MP resolution
• Dual gigabit ethernet RJ-45 ports for network redundancy and bandwidth management
• 1TB hard disk drive with 800GB usable storage for extended video retention
• Cloud analytics support for up to 10 concurrent streams
• Multiple video outputs: 1x VGA and 1x DVI for flexible multi-display configurations
• Compact 1U form factor: 16.81" × 9.88" × 1.75" (427mm × 251mm × 45mm)
• Dual USB 3.0 ports for rapid footage export and firmware updates
• Rack-mount or tabletop deployment with included brackets
• Low power consumption: 65W internal power supply
• Global voltage compatibility: 100–240V AC input

Technical Highlights

The Bridge-401 integrates dual gigabit ethernet ports to optimize network bandwidth and provide connection redundancy—a critical requirement in security-critical deployments. The embedded Linux operating system ensures a lightweight, stable platform resistant to common vulnerabilities. Status monitoring is provided via indicator lights for power and disk activity, allowing at-a-glance operational awareness.

Environmental specifications reflect real-world installation requirements: operating temperature range of 32°F to 95°F (0°C to 35°C) and humidity tolerance of 0–70% non-condensing RH make this device suitable for standard indoor facilities. The 7.64 lb weight and compact profile simplify both installation and space utilization in server rooms or network closets.

Comprehensive certifications—including FCC, UL, PSE, CE, CCC, REACH, RoHS, C-Tick, and NDAA compliance—validate this recorder for regulated environments and government procurement.

Jerry Tildsen

The Bridge-401 excels in mid-market deployments where camera count and resolution requirements are well-defined. The 35-camera @ 4MP ceiling positions it between entry-level units and high-capacity recorders, making it ideal for organizations managing 2–5 physical locations. Dual gigabit ethernet is a forward-thinking design choice that reduces bottlenecks during simultaneous recording and playback—a common pain point in smaller NVRs.

Cloud analytics support (10 concurrent streams) enables hybrid workflows where edge analytics and cloud processing coexist. Storage capacity (800GB usable) supports roughly 4–7 days of continuous 4MP recording depending on bitrate and compression; organizations requiring longer retention should factor in external storage or tiered archival strategies. The inclusion of both VGA and DVI outputs reflects legacy and modern display ecosystem support, though absence of HDMI limits integration with contemporary conferencing and visualization systems.

The 65W power profile is notably efficient for a 35-camera NVR, reducing data center thermal load and operational cost.

Applications

• Retail: Multi-location chains requiring centralized video management across 2–5 stores
• Corporate Offices: Mid-sized facilities needing perimeter, entrance, and interior monitoring
• Hospitality: Hotels, conference centers, and event venues with moderate camera density
• Industrial & Warehousing: Facilities requiring reliable video archival in standard temperature environments
• Education: Campus security for classroom, hallway, and facility oversight
