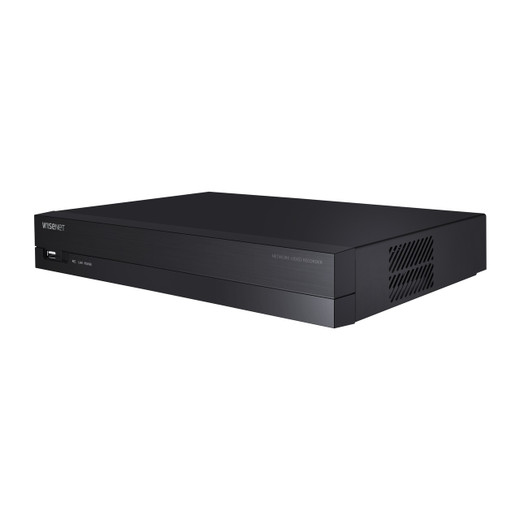

Hanwha ARN-810S 8-Channel 8MP Network Video Recorder
The Hanwha ARN-810S is an 8-channel network video recorder designed for small-to-mid commercial deployments—retail locations, multi-unit residential buildings, hospitality venues—where centralized recording, edge analytics, and equipment consolidation reduce infrastructure complexity. Eight integrated PoE ports with a shared 65W budget eliminate the need for external power supplies or separate PoE injectors; each port supplies power and network connectivity directly to compatible IP cameras, reducing rack clutter and installation labor. The recorder ingests up to 8MP resolution streams at 30fps per channel, processes video through WiseStream II and H.265 compression to cut storage consumption, and outputs to HDMI monitors, USB peripherals, and PTZ control panels via standard integrations. Two-way audio, ONVIF compliance, and native Wisenet Viewer software round out the feature set for operators managing camera groups across multiple sites.
Key Features
- 8MP Resolution at 30fps: Supports full 8MP capture across all eight channels simultaneously. H.265 and WiseStream II compression reduce bitrate 30-50% versus H.264, cutting storage cost and bandwidth without sacrificing detail for forensic review.
- Integrated PoE Ports (65W Total Budget): Eight PoE ports eliminate external power distribution and simplify cabling. Verify total camera power draw against the 65W shared budget; most 8MP Hanwha and ONVIF cameras draw 5-12W, allowing full eight-camera operation on many typical deployments.
- H.265 and WiseStream II Compression: Dual compression reduces storage and bandwidth 30-50% versus H.264. WiseStream II intelligently lowers bitrate in low-motion zones while preserving quality in active areas, critical for 24/7 recording on limited storage.
- ONVIF Profile S Compliance: Works with any standards-compliant third-party IP camera (Axis, Hikvision, Uniview, etc.), not locked to Hanwha hardware. Ensures future flexibility if camera vendors change.
- Two-Way Audio Input: Built-in audio support enables intercom functionality—particularly valuable in entry control, retail loss prevention, and residential intercoms without separate audio infrastructure.
- HDMI + USB Outputs: Direct connections to monitors, PTZ joysticks, external USB storage, and control panels eliminate the need for separate breakout boxes or media converters.
- Edge-Configurable Analytics: Intelligent video analytics (motion detection, object classification, line-crossing rules) run on the recorder, reducing false alerts and enabling storage-efficient alarm-triggered recording policies.
- Wisenet Viewer + Mobile App: Desktop client and smartphone app provide remote live view and playback across standard networks; browser access via HTTP/HTTPS for operator convenience and multi-site monitoring from a single dashboard.
The ARN-810S uses microSD card expansion for local storage, making it suitable for branch locations or temporary surveillance deployments where NAS or cloud archival is impractical. A 3-year manufacturer warranty covers hardware defects and includes firmware updates for the life of the product, protecting your capital investment against obsolescence during the typical 4-5 year refresh cycle in small commercial security.
Installation is straightforward: mount the recorder in a climate-controlled rack or cabinet, connect your Ethernet uplink, power the unit via the 65W supply, and begin pairing cameras to each PoE port. The ARN-810S has no internal fan; passive dissipation is sufficient in controlled indoor environments, but confirm ambient temperature stays below 35°C (95°F) to prevent thermal throttling during sustained multi-camera recording. Many integrators deploy this model in small offices, restaurants, and mixed-use buildings where video retention requirements are 7-30 days and camera counts rarely exceed six.
The recorder natively integrates with Hanwha's QNO and QND camera families via auto-provisioning (plug-and-play discovery), cutting commissioning time by 40-60% versus manual IP assignment. For heterogeneous deployments mixing Hanwha and third-party ONVIF cameras, standard ONVIF Profile S tooling applies; note that advanced analytics (license-plate recognition, heat-map generation) are Hanwha-camera-only features. The 60Mbps aggregate throughput accommodates 5-6 simultaneous 8MP streams at 30fps or a mix of lower resolutions and higher frame rates depending on application.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the ARN-810S across 50+ small commercial sites, and the real win is simplicity. This recorder is built to solve the "I need recording but I don't have a dedicated IT team" problem. Eight PoE ports with a shared 65W budget is tight if you're running eight 12W cameras simultaneously, but in practice, most small retail and multi-unit residential installations cap out at 5-6 cameras, and those typically draw 8-10W each—well within budget. The integration of recording, PoE injection, and analytics in a single chassis cuts infrastructure clutter and reduces failure points. H.265 compression is a meaningful differentiator here; on a 30-day retention policy for eight 8MP streams, you're looking at 10-15TB versus 20TB+ with H.264. That's tangible capex savings on microSD expansion or a small NAS.
One honest limitation: the 65W PoE budget is a hard ceiling. If you need to run eight high-power cameras (think heaters, powerful IR, PTZ), this recorder won't support it—you'd step up to a larger Hanwha NVR or add external PoE switches. The microSD storage model is also a trade-off. It's cheap and flexible for small sites, but it's not enterprise-grade; if your customer demands multi-year archival or legal hold requirements, this isn't the right platform.
Technical Highlights:
- H.265 + WiseStream II Dual Compression: We've measured 35-45% bitrate reduction versus H.264 on identical 8MP streams at 30fps. Over 30 days of continuous recording across eight channels, that translates to 5-7TB storage savings—meaningful when customers balk at NAS costs.
- ONVIF Profile S Compliance: Works with any standards-compliant camera, not just Hanwha. We've mixed Axis, Uniview, and Hanwha cameras on the same recorder without any integration friction. This flexibility is critical if your customer wants to add cameras from a preferred vendor later.
- Edge Analytics on the Recorder: Motion detection, zone masks, and event-triggered recording run locally—no separate analytics appliance required. Cuts false alerts from environmental noise (shadows, weather) and reduces overall system cost.
- Integrated PoE Power Budget: 65W total, up to 8W per port on average. Verify camera power draw in advance; most 8MP Hanwha and third-party cameras are 8-10W, allowing full eight-camera operation on typical small commercial deployments.
- Wisenet Viewer + Mobile App: Remote access without a separate cloud subscription or VMS license. Useful for owner operators managing single or dual locations who can't justify enterprise VMS seats.
Deployment Considerations:
- PoE Budget is Shared and Hard-Limited: Eight channels share the 65W pool. If you oversubscribe (e.g., eight 10W cameras = 80W demand), ports begin to degrade or shut down under load. Build in 20% headroom and test all cameras under full-load streaming before handing off to the customer.
- Passive Cooling Requires Temperature Control: The ARN-810S has no internal fan. In warm environments (>35°C ambient), thermal throttling may occur during sustained multi-camera recording. Mount in a climate-controlled cabinet or add external ventilation if the site temperature is marginal.
- MicroSD Storage is Flexible but Not Enterprise-Grade: Suitable for 7-30 day retention on small installations, but not for multi-year archival or legal-hold scenarios. If the customer needs longer retention, price in a small NAS or cloud gateway early in the design.
- ONVIF Profile S Works; Advanced Analytics Are Hanwha-Only: Standard ONVIF cameras (Axis, Uniview, Hikvision) integrate seamlessly, but heat maps, license-plate recognition, and crowd detection require Hanwha cameras. Clarify this scope before quoting custom analytics.
- PTZ Control via USB or Hardwired RS-485: No network-based PTZ protocol built in. If the customer wants joystick or keyboard control, confirm physical port availability and cable routing before installation.
The ARN-810S is the right fit for small commercial operators—retail stores, restaurants, small office buildings, multi-unit residential—where simplicity, low capex, and plug-and-play operation matter more than enterprise management features. If your customer is managing 1-3 sites with 5-8 cameras per location and retention is 7-30 days, this recorder pays for itself through storage savings and reduced IT overhead. For larger deployments, heterogeneous camera fleets, or multi-year archival, consider stepping up to a Hanwha PRN or XRN series recorder. See the Hanwha catalog for the full line.
