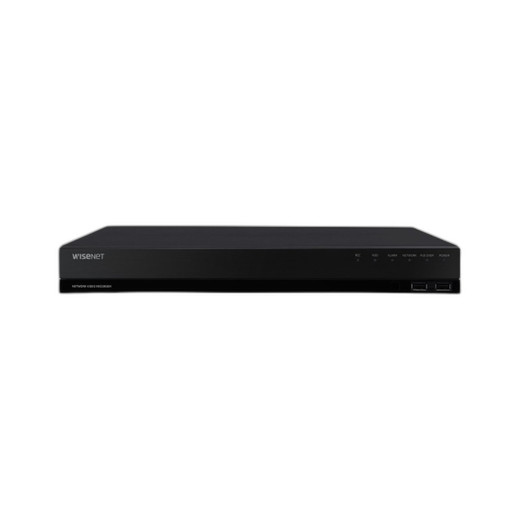

Hanwha WRN-810S 8 Channel PoE+ NVR

Hanwha WRN-810S 8 Channel PoE+ NVR

The Hanwha WRN-810S is a compact, enterprise-grade 8-channel network video recorder designed for organizations requiring efficient PoE+ powered surveillance infrastructure. Built on Linux Ubuntu 18.04 LTS with Wisenet WAVE VMS, this 1U rack-mount NVR delivers scalable video management with integrated power delivery across eight camera channels and dual Gigabit uplink connectivity.

Key Features

• 8 x 100Mbps PoE+ channels with 100W total power budget (30W per port maximum)
• Wisenet WAVE VMS with 4 pre-loaded Professional licenses included
• Up to 80 Mbps recording bandwidth supporting H.265, H.264, and MJPEG codecs
• Dual Gigabit Ethernet ports for network redundancy and uplink capacity
• 4 alarm input / 2 alarm output ports for integrated access control and notification
• Supports up to 12TB raw storage with dual 3.5" SATA HDD bays
• HDMI 4K and VGA 1080p monitor outputs for configuration and monitoring
• USB 3.0 and dual USB 2.0 ports for quick backup and peripheral connectivity
• Rack mount brackets included; compact 1U chassis (14.57" x 2" x 12.77")
• Wide operating temperature range: 32°F to 104°F

Technical Specifications

The WRN-810S operates on 100-240V AC power with a maximum draw of 164W (with 2 HDDs and maximum PoE load). The embedded eMMC SSD serves as the OS drive while two 3.5" SATA bays support up to 12TB of raw video storage. ONVIF compliance ensures broad camera compatibility across vendors. Integrated PoE+ delivery eliminates the need for external power injectors when using compatible cameras, streamlining deployment and reducing cable clutter in rack environments. The system supports up to 30 servers in a merged cluster configuration for enterprise-scale deployments. All interfaces—including 3.5mm stereo audio output, USB connectivity, and dual monitor outputs—enable flexible integration into security operations centers or distributed monitoring stations.

Applications

Ideal for mid-sized facilities requiring centralized video management with integrated power delivery: office parks, retail campuses, warehouses, manufacturing plants, educational institutions, and managed security service providers (MSSPs). The rack-mount form factor and dual Gigabit uplinks suit data center and network closet installations where space and bandwidth efficiency are critical.

James Everett

The WRN-810S balances compact form factor with substantial channel capacity, making it well-suited for organizations transitioning from analog or adopting IP surveillance across multiple locations. The 100W PoE budget supports eight high-power PoE+ cameras simultaneously without auxiliary power infrastructure—a significant operational advantage over standard PoE (15.4W). Pre-loaded Wisenet WAVE Professional licenses (4 included) reduce initial software costs; additional licenses can be purchased as the system scales.

The embedded Ubuntu OS and Wisenet WAVE integration provide a streamlined, vendor-controlled software stack with predictable patching and support cycles. Dual Gigabit uplinks and support for 30-server clustering enable redundancy and load distribution in larger deployments. For organizations with strict space constraints or co-location requirements, this 1U footprint with up to 12TB storage offers compelling density without external SAN dependencies.
