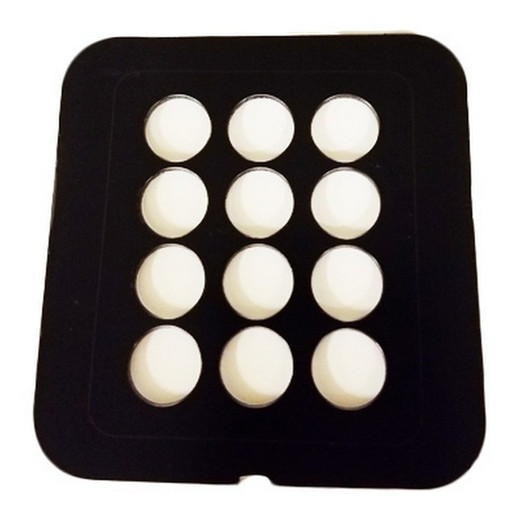

Geovision 84-RK13520-0200 Card Reader with Keypad
Overview
The Geovision 84-RK13520-0200 (GV-RK1352) is a card reader with integrated keypad designed to read PIN codes and access cards in outdoor environments. The device outputs card data via Wiegand and RS-485 connections, allowing integration into standard access control systems without proprietary middleware. IP66 weather-sealed housing means rain, dust, and direct spray won't compromise the reader or its electronics—deploy it at building perimeters, loading docks, or outdoor gates where traditional indoor readers would fail.
Compatibility
The 84-RK13520-0200 pairs with any access control system or panel that accepts Wiegand input or RS-485 serial data. It supports a range of card types—ISO cards, fobs, stickers, and tags across multiple frequencies. Geovision's GV-FWC face-recognition integration module can pair card reads with facial ID records and route that combined data to controllers via TCP/IP or Wiegand, useful for hybrid credential verification workflows. Mount options include the GV-MountA900 bracket (3.9 x 2.7 inches) for single-gang US-standard electrical boxes.
Installation Notes
The reader is designed for outdoor single-gang box mounting. Verify your access control panel or external reader interface supports Wiegand protocol (26-bit or 34-bit) or RS-485 serial at 9600–19200 baud before ordering. Power requirements and specific wiring pinouts are detailed in the manufacturer datasheet. IP66 compliance requires proper cable gland sealing at wire entry points—use weatherproof M20 or M16 connectors if extending wiring beyond factory-sealed pigtails.
