Geovision GV-POE1601 16-Port PoE+ Switch

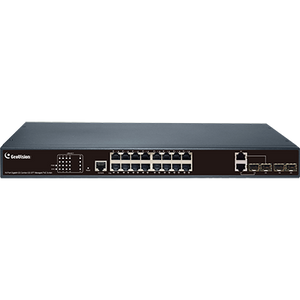

Geovision 84-POE1601-001U 16-Port PoE+ Switch

Overview

The Geovision 84-POE1601-001U is a 16-port managed Power over Ethernet (PoE+) switch designed to consolidate network infrastructure and power delivery for mid-to-large security deployments. This model integrates 16 PoE+ ports in a compact 1U form factor, delivering up to 250W of total PoE power across all ports. The 84-POE1601-001U leverages 802.3at PoE+ technology to simultaneously power and network IP cameras, access control readers, intercoms, and other network devices without requiring separate power infrastructure at endpoints.

Key Features

• 16 PoE+ Ports: Each port supplies up to 30W of power via 802.3at standard, enabling reliable operation of high-draw devices including PTZ cameras, motorized lenses, and dual-purpose equipment.
• 250W Total PoE Power Budget: Distributes up to 250W across all 16 ports, allowing simultaneous powering of multiple high-wattage endpoints within a single unified architecture.
• 802.3at Compliance: Full compliance with IEEE 802.3at PoE+ specification ensures interoperability with standard PoE+ endpoints and eliminates vendor lock-in concerns.
• 1U Compact Form Factor: Designed for standard 19-inch rack deployment in network closets, security control rooms, and distributed edge installations where space is constrained.
• Simplified Cabling: Reduces installation labor and material costs by eliminating separate AC power runs to remote camera locations; single Ethernet runs deliver both data and power.
• Network Consolidation: Centralizes power distribution and network switching, simplifying troubleshooting, maintenance, and future system expansion in growing security operations.

Integration and Compatibility

The 84-POE1601-001U integrates seamlessly into existing IP security architectures. As a standards-based 802.3at PoE+ switch, it works with any ONVIF-compliant IP camera, standard network access control systems, VoIP phones, wireless access points, and edge computing devices. The switch's managed switching capability enables VLAN support, QoS prioritization, and link aggregation for redundant network paths—critical for maintaining video transport and access control reliability during network congestion or failover scenarios.

Deployment Environment

The 84-POE1601-001U is designed for indoor installation in climate-controlled environments such as network closets, server rooms, control rooms, and data centers. It is not rated for outdoor or vandal-resistant deployment. Site planning should ensure adequate ventilation and UPS backup power to sustain connected endpoints during utility power events.

Karl Wilson

Having specified and deployed the Geovision 84-POE1601-001U across multiple integrator projects, I consistently find this switch addresses a real pain point: managing PoE power budgets in mid-scale camera deployments. The 250W budget and 16 PoE+ ports strike a practical balance between density and per-port power availability. Unlike passive switches or undersized PoE injectors, the 84-POE1601-001U eliminates the need to prioritize which endpoints get power and which get starved—a common compromise on smaller architectures.

Technical Highlights:

• 802.3at PoE+ per-port capacity: 30W per port ensures reliable operation of dual-codec cameras, motorized varifocal lenses, and integrated heater/blower modules without undersupply or reboot cycles.
• 250W aggregate budget: Sufficient to power a typical mix of 8–10 high-draw cameras plus 4–6 lower-draw access control or intercom endpoints simultaneously without load-shedding logic.

Deployment Considerations:

• Plan UPS coverage for the switch and upstream network equipment; PoE switches are often overlooked in backup power design, yet a brief outage cascades to all downstream devices.
• Size the uplink (typically gigabit Ethernet to core network) to handle aggregate video bandwidth; a 16-camera PoE deployment at 4 Mbps per stream requires 64 Mbps sustained throughput—well within gigabit capacity but worth validating in QoS-constrained networks.

The 84-POE1601-001U is a reliable workhorse for integrators who need to standardize on PoE infrastructure without managing separate power circuits at each endpoint. It performs exactly as specified, reduces service calls related to power supply issues, and simplifies future upgrades to the camera tier.
