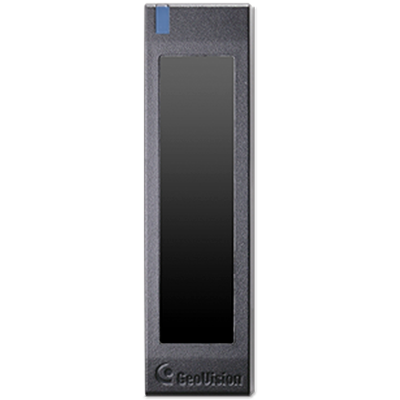

Geovision 84-DFR1352-1000 Door Frame Card Reader
Overview
The Geovision 84-DFR1352-1000 is a rugged door frame-mounted card reader designed for access control system integration in both indoor and outdoor environments. Built with IP66-rated enclosure protection, the 84-DFR1352-1000 withstands demanding environmental conditions while maintaining reliable credential reading performance. This reader integrates seamlessly into existing access control architectures via AC control connectivity, making it suitable for security integrators deploying multi-door access solutions across facilities with varying environmental exposure.
Key Features
- IP66 Environmental Rating: Sealed against dust and high-pressure water jets, ensuring operation in both covered outdoor and indoor locations with splash or washdown exposure.
- Door Frame Form Factor: Mounts directly into door frame assemblies, eliminating separate wall or pedestal installation requirements and reducing overall project footprint.
- AC Control Integration: Connects via standard ACControl cabling for straightforward integration with conventional access control panels and power supplies.
- Credential Compatibility: Supports standard magnetic stripe and proximity card formats commonly deployed in enterprise and facility access ecosystems.
- Durable Construction: Engineered for repeated use in high-traffic entry points with mechanical and electrical resilience under continuous operation.
- Field Integration Ready: Compact form factor reduces installation complexity and cable routing challenges in retrofit and new construction projects.
Integration & Compatibility
The 84-DFR1352-1000 operates as a peripheral device within standard access control system architectures. AC control cabling provides power and signal transmission to compatible access control panels, badge readers, and credential validation systems. This reader integrates with conventional door locking hardware, electric strikes, and magnetic lock interfaces managed by central access control software. Security integrators can deploy multiple 84-DFR1352-1000 units across facility entry points with centralized credential management and event logging through standard access control platforms. No proprietary gateways or protocol converters are required for basic operation; integration follows established ACControl wiring practices.
Deployment Considerations
The IP66 rating makes the Geovision 84-DFR1352-1000 suitable for exterior covered entries, loading dock areas, and any indoor location subject to moisture, humidity, or washdown cycles. Door frame mounting minimizes visibility and reduces tampering surfaces compared to pedestal-mounted readers. ACControl connectivity simplifies power distribution and reduces wiring costs in multi-door installations. Position readers at accessible height (typically 48–54 inches) for ergonomic card presentation and consistent read reliability.
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
Having evaluated the Geovision 84-DFR1352-1000 during access control system rollouts across multi-building campuses, I find this reader particularly valuable for sites requiring environmental resilience without sacrificing installation speed. The IP66 rating and door frame form factor eliminate the need for auxiliary weatherproof enclosures or pedestal footings, reducing both material cost and installation labor. ACControl integration aligns with existing facility infrastructure at most sites, minimizing compatibility risk.
Technical Highlights:
- IP66 Sealing: Meets NEMA 4X equivalent protection, suitable for outdoor covered entries and high-moisture indoor areas without additional environmental hardening.
- ACControl Connectivity: Direct power and signal integration with access control panels eliminates intermediary network components and simplifies troubleshooting.
Deployment Considerations:
- Mount at 48–54 inches for optimal card presentation ergonomics and read consistency across diverse user populations.
- Verify door frame depth compatibility during site survey; door frame readers require precise jamb space for flush integration.
- Plan ACControl cable routing during rough-in phase to avoid rework; coordinate with access control panel placement for clean wire paths.
- Test reader response before credential provisioning; verify magnetic stripe and proximity card formats match your facility's existing badge stock.
The Geovision 84-DFR1352-1000 is a practical choice for integrators managing medium to large-scale access deployments in environments where environmental durability and installation efficiency matter. Its straightforward ACControl integration and IP66 resilience reduce ongoing maintenance and support burden.
