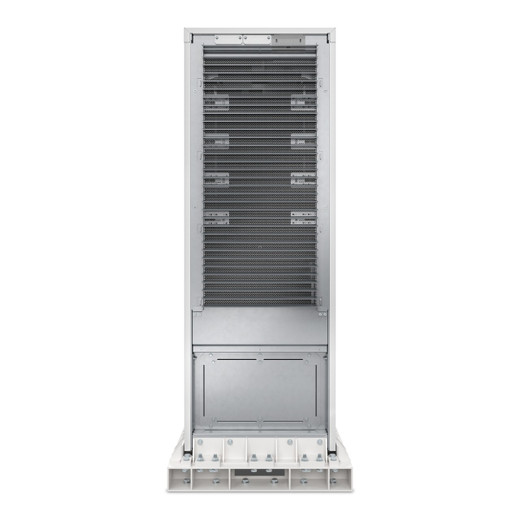

APC by Schneider Electric Galaxy vs UPS 80KW 400V for External Batteries - GVSUPS80KMHS

APC by Schneider Electric GVSUPS80KMHS Double-Conversion UPS

Overview

The APC by Schneider Electric GVSUPS80KMHS is an 80 kVA / 80 kW double-conversion (Online) UPS designed to provide critical power protection for sensitive equipment. It ensures a stable, clean sine wave output, isolating connected devices from utility power disturbances. This unit is specifically suited for environments requiring robust power conditioning and is certified for marine applications, indicating its resilience to harsher operating conditions and vibration. The GVSUPS80KMHS is engineered for applications where downtime is not an option, such as data centers, industrial automation, or critical infrastructure.

Compatibility

This UPS is designed for systems operating at 400V nominal output voltage and requires a 3-phase input. It is compatible with external battery cabinets (sold separately) to extend runtime. The unit's 80 kVA / 80 kW capacity makes it suitable for high-power density racks and critical IT infrastructure. It operates within a 340-460V input voltage range and accepts 40-70 Hz input frequency, providing flexibility for various power sources.

Installation Notes

Requires a 3-phase input power source. The unit has a maximum current draw of 144A. Heat dissipation is rated at 8394 BTU/h, necessitating adequate ventilation and cooling in the installation space. The output voltage THD is a low 1%, with input THD at 3%, ensuring minimal distortion to connected loads and upstream power systems. ECO mode is available to improve energy efficiency when full power conditioning is not required.
