APC by Schneider Electric Galaxy vs UPS 50KW 208V with N+1 Power Module for External - GVSUPS50KRFS

APC by Schneider Electric GVSUPS50KRFS Galaxy VS 50kW 3-Phase UPS with N+1 Power Module

Overview

The GVSUPS50KRFS is a 50kW, 208V three-phase uninterruptible power supply from APC's Galaxy VS series, engineered for medium-to-large enterprise loads where a single power module failure cannot be tolerated. The N+1 architecture means one redundant power module stays in reserve — if an active module faults, the load transfers without interruption and without waiting for a service call. This is the configuration to specify when your uptime SLA has no tolerance for a UPS becoming a single point of failure.

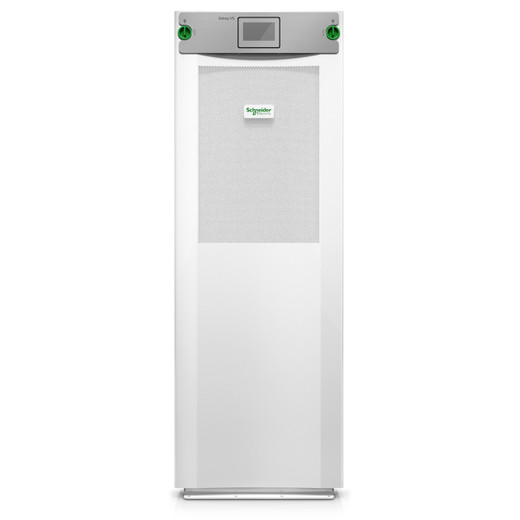

Weighing 639.3 lb (290 kg) and designed around a white, rack-friendly enclosure measuring 20.51 inches (52.1 cm) in one key dimension, the GVSUPS50KRFS is built for three-phase UPS installations in data centers, network operations centers, and mission-critical facility rooms. The external battery configuration keeps the UPS footprint flexible — runtime is determined by the external battery cabinet you pair with it, not a fixed internal cell count.

Key Features

• 50kW / 208V Three-Phase Input: Sized for mid-range data center rows, large network closets, or building-level critical loads. The 208V three-phase input aligns with North American commercial power distribution — no step-down transformer needed in a standard US facility. A secondary 200V input rating means it can also be deployed in facilities running slightly lower nominal voltage without derating concerns.
• N+1 Redundant Power Module Architecture: The defining feature of this SKU. With N+1, the system operates with one more power module than the load strictly requires. If any single module fails, the remaining modules absorb the load instantly. For a 50kW system, this eliminates the most common cause of unplanned downtime — component-level UPS failure — without requiring a second full UPS unit.
• External Battery Configuration (384–480VDC Bus): The battery bus operates at 384–480VDC, which is appropriate for the high-power DC stages in a 50kW design. Battery runtime is determined by the external battery cabinet(s) you connect — this means you can right-size runtime independently of the UPS itself and expand runtime later by adding cabinets without replacing the UPS chassis. Pair with a compatible APC Galaxy VS external battery enclosure sized to your required runtime at load.
• Wide Input Frequency Range (40–70 Hz): Accepts input from 40 to 70 Hz, which is broad enough to accommodate generator output during a utility outage. Generator frequency can wander under load transients — a tight-frequency UPS that rejects generator power defeats the purpose of having a generator. This range keeps the UPS on bypass cleanly during gen-set operation.
• IP21 Ingress Protection: IP21 is rated for protection against vertical dripping water and solid objects greater than 12.5mm. It is appropriate for indoor machine rooms and raised-floor data centers. This is not an outdoor-rated or wash-down enclosure — deploy in a controlled indoor environment. If your facility has condensation risk, note the 0–95% non-condensing relative humidity limit and ensure adequate HVAC.
• 2.5 Crest Factor Tolerance: A crest factor of 2.5 means the UPS can handle loads with peak currents 2.5× their RMS value without distorting output voltage. Many variable-frequency drives, switching power supplies, and UPS-fed PDUs have non-linear loads that push crest factor above 1.4. This rating indicates the Galaxy VS can support real-world IT and industrial loads without derating to protect its output stage.
• 0–95% Non-Condensing Humidity Range: The full non-condensing humidity envelope gives you flexibility in facility environments that aren't perfectly controlled — useful in facilities that experience seasonal humidity variation. Condensation on live power electronics is a failure mode; ensure the room stays above dew point at all times.

Integration & Compatibility

The GVSUPS50KRFS is designed for integration into APC's Galaxy VS platform ecosystem. The external battery architecture requires a compatible Galaxy VS battery enclosure — confirm battery cabinet model compatibility with APC's configuration documentation before ordering. For downstream power distribution, the 208V three-phase output feeds standard North American PDUs and transfer switches without conversion. Network management and remote monitoring integration is standard for the Galaxy VS platform via APC's EcoStruxure IT or Network Management Cards — verify the specific management card included or required for your monitoring infrastructure. The 40–70 Hz input frequency tolerance supports both utility and generator source switching in automatic transfer switch (ATS) configurations.

Frequently Asked Questions

Q: What is the input voltage and phase configuration for the GVSUPS50KRFS?

A: The GVSUPS50KRFS accepts 208V three-phase as its primary input, with a secondary rating of 200V. It is a three-phase unit — not suitable for single-phase circuits.

Q: What does the N+1 power module configuration mean in practice?

A: N+1 means the system includes one more active power module than the load requires. If a single module fails, the remaining modules carry the full 50kW load without interruption. This eliminates the UPS itself as a single point of failure without requiring a fully redundant second UPS.

Q: Does the GVSUPS50KRFS include internal batteries?

A: No. The GVSUPS50KRFS uses an external battery configuration. Runtime is provided by a compatible external battery cabinet connected to the 384–480VDC battery bus. This lets you size and expand runtime independently of the UPS chassis.

Q: What is the IP rating on the GVSUPS50KRFS and is it suitable for outdoor installation?

A: The GVSUPS50KRFS carries an IP21 rating, which covers protection against vertically dripping water and solid objects over 12.5mm. It is designed for controlled indoor environments only — it is not rated for outdoor or wet-area installation.

Q: Can the GVSUPS50KRFS operate on generator power?

A: Yes. The 40–70 Hz input frequency range is wide enough to accommodate generator output, including frequency variation under load transients, making it compatible with standard ATS and generator configurations.

Q: What are the physical dimensions and weight of the GVSUPS50KRFS?

A: The unit weighs 639.3 lb (290 kg) and has a key enclosure dimension of 20.51 inches (52.1 cm). Floor loading and access clearance planning are essential before installation — verify structural capacity with your facilities team.

James Everett

The GVSUPS50KRFS is a serious 50kW three-phase platform, and the spec that earns its price premium is the N+1 power module redundancy — not just a marketing label, but an architecture where the failure of any single internal power module does not drop the load. In a 24/7 NOC or data center row where replacing a failed UPS means a maintenance window, that distinction matters considerably.

Technical Highlights:

• 50kW at 208V Three-Phase: Right-sized for a mid-density server row or a consolidated UPS zone feeding multiple PDUs — large enough to consolidate protection for 10–20 rack cabinets depending on average draw, without stepping up to a 100kW+ frame.
• 384–480VDC External Battery Bus: High-voltage DC bus reduces battery string current for a given power level, which means thinner inter-cabinet cabling and less resistive loss. The external architecture also means battery capacity is independently scalable — add a second battery cabinet to double runtime without touching the UPS chassis.
• 40–70 Hz Input Acceptance: Generator integration is clean with this frequency window. Many facilities find their gen-sets wander between 58–62 Hz under load switching; a narrow-frequency UPS that rejects the generator input creates exactly the kind of transfer event you bought the UPS to prevent.

Deployment Considerations:

• At 639.3 lb (290 kg), floor loading calculations are non-negotiable before positioning — verify your raised-floor tile rating and any structural beam locations before finalizing placement. Factor in the additional weight of the external battery cabinet(s).
• IP21 is an indoor rating only. If your facility has any overhead pipe risk (condensation lines, sprinkler mains), reposition or add drip protection above the enclosure — IP21 only covers vertical drip, not splashing or lateral water ingress.

The GVSUPS50KRFS is the right specification for a mid-scale data center or NOC buildout where N+1 redundancy needs to be intrinsic to the UPS itself — not bolted on via a parallel second unit — and where battery runtime flexibility across the installation lifecycle is a design requirement rather than an afterthought.
