APC by Schneider Electric Galaxy vs UPS 20KW 480V 1 Internal 9AH Smart Modular - GVSUPS20KB4GS

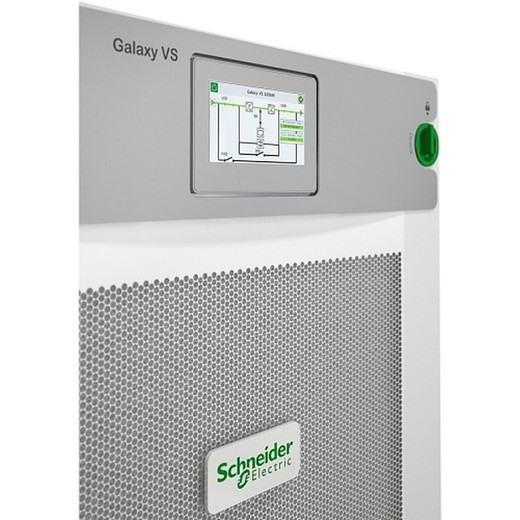

APC by Schneider Electric GVSUPS20KB4GS Galaxy VS 20kW Three-Phase UPS

Overview

The APC by Schneider Electric GVSUPS20KB4GS is a 20kW / 20kVA three-phase online UPS designed for data centers, critical infrastructure, and industrial power environments where a momentary power interruption is not an option. Running on a 480V AC three-phase input and output, this unit is sized for mid-density IT rows, industrial control systems, and critical process equipment that demand clean, regulated sine wave output at scale.

Unlike entry-level single-phase UPS units, the Galaxy VS platform delivers zero-transfer-time conversion — meaning protected loads never see even a brief switchover window during grid anomalies. One internal 9AH Smart Modular Battery String ships installed, and the architecture supports additional battery strings for extended runtime, making this a practical long-term infrastructure investment rather than a fixed-capacity appliance. Explore the full APC by Schneider Electric power protection line for companion products in this family.

Key Features

• Zero-Transfer-Time Online Double Conversion: The GVSUPS20KB4GS operates with a 0 ms transfer time — connected loads never experience an interruption during a grid event. For industrial controllers, servers, or medical imaging equipment that cannot tolerate even a sub-cycle gap, this is the specification that matters most. Contrast this with line-interactive UPS designs, which typically switch in 4–12 ms and are unsuitable for sensitive three-phase loads.
• 20kW / 20kVA at 480V Three-Phase Output: Rated for 20kVA of apparent power at a true 480V AC three-phase output. This voltage class is standard for mid-size US data center PDUs, industrial motor drives, and CNC equipment — no step-down transformer required between the UPS and your distribution panel. Hard-wire 4-wire (3PH + G) termination eliminates plug compatibility guesswork on high-current feeds.
• Wide Input Voltage Range — 408V to 552V AC: The rectifier accepts input swings from 408V AC up to 552V AC before switching to battery. That 144V window (roughly ±17% of nominal 480V) handles brown-down and overvoltage events that would otherwise hammer rectifier life on narrower-window units. Facilities with aging or variable utility feeds benefit directly from this tolerance.
• Input Frequency Tolerance up to 70Hz: Nominal US grid is 60Hz, but generator-fed facilities often see frequency droop or surge at startup and during load transfer. The GVSUPS20KB4GS accepts input frequencies up to 70Hz, providing headroom for generator-driven installations without forcing immediate battery operation during frequency transients.
• True Sine Wave Output at 60Hz: Output is a regulated sine wave at 60Hz — not a simulated or stepped approximation. Three-phase motor loads, VFDs, and switching power supplies in server hardware all require clean sinusoidal power; quasi-sine or stepped-wave outputs cause harmonic heating and can void equipment warranties on sensitive industrial drives.
• Modular Battery Architecture — Expandable Runtime: Ships with one internal 9AH Smart Modular Battery String. The modular design allows additional strings to be added for longer runtime tiers without replacing the main unit. For three-phase UPS deployments where runtime requirements evolve with load growth, this avoids the capital cost of over-specifying battery capacity at initial install.
• Hard Wire 4-Wire (3PH + G) Connection: Designed for direct panel connection rather than a detachable plug. In 20kW-class three-phase installations this is standard practice — it eliminates the connector as a thermal and mechanical failure point, and it means the installation is code-compliant in commercial and industrial environments where plug-connected loads above 20A are restricted.
• Application Range — Data Center, Industrial, Critical Systems: Rated explicitly for data center, critical system, and industrial environments — not office or light commercial. This is relevant for procurement documentation, insurance specifications, and any facility classification that requires equipment matched to the deployment environment. See the UPS and power protection category for additional form factors and power classes.

Integration and Compatibility

The GVSUPS20KB4GS connects via hardwired 4-wire three-phase termination to any 480V AC distribution panel or PDU. Input voltage range (408–552V AC) covers standard ANSI C84.1 Range A and B tolerances, making it compatible with typical US utility feeds and most generator transfer switch outputs.

For network and server infrastructure fed through 480V-to-208V/120V step-down transformers downstream, this UPS protects the upstream 480V feed — the entire downstream distribution tree rides protected power. Verify your facility's generator output frequency stability when sizing battery runtime; if your generator holds frequency within ±2Hz the UPS will ride through on utility conversion and battery will not be required during normal generator run.

APC EcoStruxure-compatible network management cards (sold separately) can be added to the Galaxy VS platform for SNMP monitoring, shutdown scripting, and integration with building management systems. Confirm card compatibility with the Galaxy VS chassis before procurement. For guidance on matching UPS capacity to critical load requirements, review the UPS sizing and power planning guide.

Frequently Asked Questions

Q: What is the transfer time on the GVSUPS20KB4GS?

A: The GVSUPS20KB4GS has a 0 ms transfer time. It uses online double-conversion topology, meaning the load is always running from the inverter — there is no switching delay when the input power fails or goes out of tolerance.

Q: What input voltage does the GVSUPS20KB4GS require?

A: The nominal input voltage is 480V AC three-phase. The rectifier accepts a range of 408V AC to 552V AC, providing tolerance for voltage sag and overvoltage events on the utility feed.

Q: Is the GVSUPS20KB4GS expandable for longer battery runtime?

A: Yes. It ships with one internal 9AH Smart Modular Battery String and supports additional battery strings for extended runtime. The modular battery architecture allows runtime to be scaled without replacing the main UPS chassis.

Q: What type of connection is required to install the GVSUPS20KB4GS?

A: The unit requires a hardwired 4-wire connection (3-phase + ground). There is no plug — it must be permanently wired to a 480V three-phase distribution panel or transfer switch by a licensed electrician.

Q: What is the output waveform type of the GVSUPS20KB4GS?

A: The output is a true sine wave at 60Hz and 480V AC three-phase. This is required for compatibility with variable frequency drives, three-phase motors, and sensitive server power supplies.

Q: What environments is the GVSUPS20KB4GS rated for?

A: It is rated for data center, critical system, industrial, and general business applications. It is not a light-commercial or office-class unit — it is designed for continuous-duty three-phase power protection in demanding environments.

Eden Phillips

The GVSUPS20KB4GS runs online double-conversion with a true 0 ms transfer time at 20kW — that zero-transfer spec is what separates this class of UPS from line-interactive alternatives that are fine for office IT but genuinely problematic for industrial variable frequency drives and high-density server rows. If your facility runs 480V three-phase distribution, this unit drops directly into your existing panel infrastructure without a step-down transformer eating efficiency and adding a failure point.

Technical Highlights:

• 0 ms Transfer Time: Online double-conversion means the inverter is always active — there is literally no switching event. Line-interactive units in the 4–12 ms window cause micro-interruptions that reset PLCs and trigger UPS-in-bypass alarms on sensitive industrial equipment.
• 408–552V AC Input Range: A 144V window of input tolerance means this unit rides through brown-down and overvoltage events that are common on aging utility feeds and generator outputs during frequency/voltage stabilization — without dropping to battery unnecessarily and cycling battery life.
• Modular 9AH Battery String: The single installed string is a starting point, not a ceiling. Budget your runtime extension as a separate line item from the UPS chassis — the modular architecture means you can right-size battery investment at deployment and expand as load grows without a forklift replacement.

Deployment Considerations:

• Hard-wire 4-wire termination requires a licensed electrician and a dedicated 480V three-phase circuit. Factor permit and installation labor into total project cost — this is not a plug-and-play unit.
• Input frequency tolerance tops out at 70Hz. Confirm your generator's governor holds below that threshold under load — some older or undersized generators spike above 65Hz during load pickup, which will push the UPS to battery momentarily until frequency stabilizes.

This unit is the right specification for a mid-density data center row or industrial control room where 480V three-phase infrastructure is already in place, the load is sensitive to any power interruption, and the procurement team wants a battery-expandable platform they will not have to replace when the load grows in two years.
