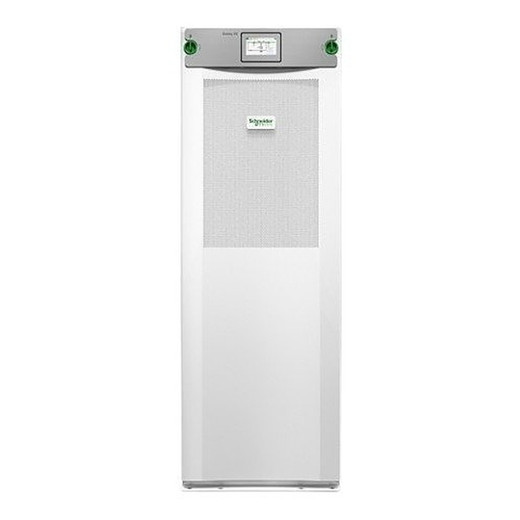

APC by Schneider Electric Galaxy vs UPS 20KW 208V for External Batteries Start-up 5X8 - GVSUPS20KFS

APC by Schneider Electric GVSUPS20KFS Galaxy VS UPS 20kW 208V External Battery 3-Phase

Overview

The APC by Schneider Electric GVSUPS20KFS is a 20kW/20kVA three-phase uninterruptible power supply engineered for data centers, critical infrastructure, and industrial environments that require a flexible, scalable power protection architecture with externally housed battery systems. Unlike integrated UPS units, this model is designed from the ground up to pair with an external battery cabinet — giving facilities engineers the freedom to right-size runtime independently of the UPS module itself. Input and output are both rated at 208V three-phase (with compatibility at 200V and 220V), making it a direct fit for North American and multi-regional 3-phase distribution infrastructure.

The GVSUPS20KFS belongs to the APC by Schneider Electric Galaxy VS line — a platform built for modular, scalable critical power in mid-to-large commercial and industrial applications. If you are evaluating three-phase UPS systems for a server room, edge data center, or process control environment, the external battery architecture here is the defining feature to evaluate first.

Key Features

• 20kW / 20kVA Output Capacity: A true unity power factor rating — 20kW equals 20kVA — means you get the full rated kilowatt capacity without derating. That matters in dense server environments where loads run at or near unity PF. No hidden headroom loss.
• 208V Three-Phase Input and Output: Accepts 208V (and tolerates 200V–220V) three-phase input and delivers the same on output via a hard-wire 5-wire connection (3PH + N + G). Direct integration with standard 3-phase PDUs and distribution panels — no step-up or step-down transformer required in most North American deployments.
• Hard-Wire 5-Wire Output (3PH + N + G): A single hard-wire termination handles the full 20kW load. This is the correct choice for permanent installations feeding downstream PDUs or critical switchgear — not a rack with a handful of C13 receptacles. Plan your conduit and termination work accordingly during site preparation.
• External Battery Architecture — Li-Ion or VRLA Compatible: Supporting both Lithium-Ion and VRLA (valve-regulated lead-acid) external battery systems, the GVSUPS20KFS decouples runtime from the UPS enclosure. Li-Ion external cabinets deliver longer cycle life and a smaller footprint for the same capacity; VRLA remains the lower upfront cost option. Either way, you scale runtime by adding battery capacity without replacing the UPS module.
• Battery Voltage Range 384–480VDC: The wide DC bus range (384–480VDC) accommodates different external battery string configurations. This flexibility matters when you are integrating with an existing battery infrastructure or planning incremental capacity expansion without a full cabinet replacement.
• White Enclosure, 58.46-inch Height: At 148.5 cm (58.46 in) tall, this is a floor-standing unit — verify your ceiling clearance and access aisle depth during site survey. The white enclosure is consistent with the Galaxy VS series aesthetic, relevant if matching an existing data center or equipment room installation.
• Startup Service 5×8 Included: The GVSUPS20KFS ships with a 5×8 (business hours) startup service. Commissioning a three-phase UPS correctly — including load testing, battery string verification, and transfer switching validation — is not optional for a critical power deployment. Having startup service bundled removes a coordination step and ensures the unit is commissioned by personnel familiar with the platform.

Integration and Compatibility

The GVSUPS20KFS is designed for integration into three-phase power distribution architectures where the UPS sits between utility input and a downstream critical load — typically a row of server racks, a process control panel, or a telecom equipment room. The hard-wire output requires a licensed electrician for final termination; factor this into your project timeline.

External battery compatibility spans both Li-Ion and VRLA chemistries at 384–480VDC, which aligns with APC Galaxy VS external battery enclosures. Before specifying battery cabinets, confirm the DC bus voltage of your intended battery strings against this range. Consult the UPS accessories and battery cabinet offerings to identify compatible external battery enclosures for this platform.

For environments evaluating UPS management and monitoring integration, the Galaxy VS platform supports network management cards and building management system connectivity — verify the specific card compatibility against your DCIM or BMS protocol requirements prior to procurement.

Frequently Asked Questions

Q: Does the GVSUPS20KFS include batteries, or do I need to purchase them separately?

A: The GVSUPS20KFS is designed for external battery systems only — no internal batteries are included. You will need to specify and purchase compatible external battery enclosures (Li-Ion or VRLA, 384–480VDC bus) separately to achieve runtime.

Q: What output connection does the GVSUPS20KFS use?

A: The unit provides a single hard-wire 5-wire output (3-phase + neutral + ground). There are no receptacle outlets. This is a permanent installation UPS intended to feed downstream distribution panels or PDUs via conduit — final termination requires a licensed electrician.

Q: What input voltages does the GVSUPS20KFS accept?

A: The primary input voltage is 208V three-phase. The unit also operates at 200V and 220V three-phase, providing tolerance for site variations common in North American and international 3-phase distribution environments.

Q: What battery chemistries are supported with the GVSUPS20KFS?

A: The GVSUPS20KFS supports both Lithium-Ion (Li-Ion) and VRLA (valve-regulated lead-acid) external battery systems operating at 384–480VDC. Li-Ion offers longer cycle life and reduced footprint; VRLA is typically lower in upfront cost. The choice depends on your runtime requirements, budget, and available floor space.

Q: What is included in the 5×8 startup service?

A: The 5×8 startup designation means commissioning support is available during standard business hours (5 days a week, 8 hours a day). This service covers on-site installation verification and startup of the UPS — important for a three-phase critical power installation where commissioning errors can have significant downstream consequences.

Q: What are the physical dimensions I need to plan for during installation?

A: The GVSUPS20KFS stands 58.46 inches (148.5 cm) tall. Confirm ceiling clearance, access aisle width, and floor load capacity during your site survey. This is a floor-standing unit — not rack-mountable.

James Everett

The GVSUPS20KFS is one of those UPS specs that rewards careful pre-project planning. The external battery architecture is genuinely flexible — decoupling runtime from the UPS module means you can commission the power unit now and scale battery capacity as your load grows — but it also means you need to nail down your battery cabinet selection and DC bus voltage (384–480VDC range) before the electrician shows up. I've seen projects stall because the battery enclosure order came in late; budget lead time for both.

Technical Highlights:

• Unity Power Factor (20kW = 20kVA): No derating math required — the full 20kW of capacity is usable at loads running at unity PF, which is typical for modern server power supplies. This simplifies load planning significantly compared to UPS units with 0.8 or 0.9 PF ratings.
• 384–480VDC Battery Bus: The wide DC voltage window gives you real flexibility across Li-Ion and VRLA string configurations. If you're integrating into an existing battery infrastructure or phasing in cabinet additions over time, this range reduces the risk of a forced rip-and-replace on the battery side.
• Hard-Wire 5-Wire Output: A single 3PH + N + G hard-wire termination at 20kW is the correct architecture for permanent critical power installations. It feeds directly into a downstream PDU or distribution panel — no adapters, no receptacle banks to manage at this power level.

Deployment Considerations:

• At 58.46 inches tall, this is a floor-standing enclosure — confirm your equipment room has sufficient clearance height, front-access depth for service, and floor load capacity rated for a fully loaded UPS plus external battery cabinet weight before scheduling delivery.
• The 5×8 startup service is business-hours only — if your commissioning window falls on a weekend or requires after-hours cutover (common in live data centers), verify whether the included service covers your schedule or whether you need to upgrade to a 7×24 option before finalizing the order.

The GVSUPS20KFS is well-matched to a mid-size edge data center or dedicated server room where the operator wants to manage battery runtime as a separate, scalable variable — particularly in environments phasing in capacity over 18–36 months where a fixed internal-battery UPS would force a full replacement cycle to add runtime.
