APC by Schneider Electric Galaxy vs UPS 20KW 208V 2 Internal 9AH Smart Modular - GVSUPS20KB4FS

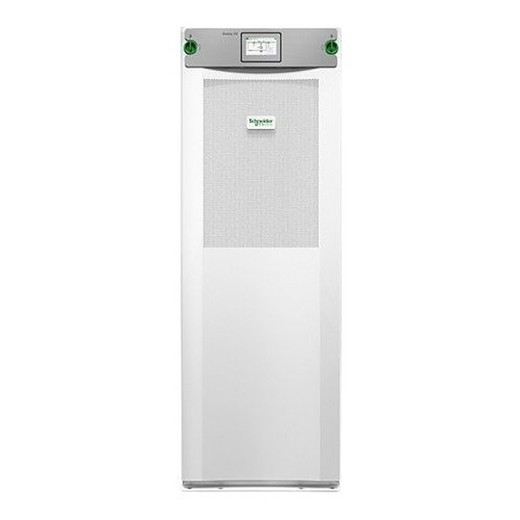

APC by Schneider Electric GVSUPS20KB4FS Galaxy VS 20kW 3-Phase Online UPS

Overview

The APC by Schneider Electric GVSUPS20KB4FS is a 20kW (20 kVA) three-phase online double-conversion UPS engineered for data centers, critical systems, and industrial environments where any power interruption — even a millisecond — causes downstream damage. With 208V AC input and output, zero-millisecond transfer time, and a design that accommodates two internal 9Ah smart modular battery strings with room to expand, this unit is built for facilities that treat continuous uptime as non-negotiable rather than aspirational.

The Galaxy VS platform sits in the mid-range of APC's three-phase UPS lineup, targeting installations that have outgrown single-phase protection but don't yet require the largest floor-standing three-phase systems. If you're commissioning a small-to-mid data center pod, a critical control room, or an industrial automation cell running at 208V three-phase, the GVSUPS20KB4FS slots in as a purpose-matched solution.

Key Features

• Zero-Millisecond Transfer Time: True online double-conversion topology means the load is always running off the inverter — utility power never directly reaches the connected equipment. When input power fails or degrades, there is no switching event and no transfer gap. For servers, storage arrays, and PLCs that fault on even brief voltage sags, this is the spec that matters most.
• 20 kVA / 20 kW Three-Phase Output at 208V: Delivers 20 kW of usable power at unity power factor to 208V three-phase loads — sized for dense server rows, mid-scale network equipment racks, or light industrial machinery. The three-phase architecture distributes current across phases, reducing conductor sizing and heat compared to equivalent single-phase designs at this power level.
• Wide Input Voltage Acceptance (177V AC–239V AC): The unit accepts input voltage ranging from 177V AC to 239V AC before switching to battery. That 62-volt window on the low side means the UPS rides through utility sags and brownouts on conditioned inverter output without unnecessarily depleting battery reserve — important in facilities where utility quality is inconsistent.
• 208V AC Output: Output is matched to the input at 208V AC, making integration with existing 208V three-phase PDUs, RPPs, and downstream breaker panels straightforward. No step-up or step-down transformer is needed in a properly provisioned 208V data center environment.
• 60 Hz Output Frequency: Regulated 60 Hz output from the inverter regardless of input frequency variation — relevant when the unit is fed from generator sets that may hunt frequency during load transitions. The power conditioning effect here protects frequency-sensitive equipment.
• Input Frequency Tolerance to 70 Hz: The unit accepts input frequencies up to 70 Hz, providing compatibility with generator sources that run slightly above nominal. This is a practical consideration in industrial and critical infrastructure sites where diesel generators are the primary backup source.
• Modular Battery Architecture — 2 Strings, Expandable: Ships with two internal 9Ah smart modular battery strings. The modular design means battery capacity can be extended by adding strings, allowing runtime to scale with load requirements without replacing the entire UPS chassis. For a data center environment where runtime requirements are defined by generator start time, this is the correct architecture.
• Data Center, Critical System, and Industrial Application Rating: The Galaxy VS platform is validated for all three application classes — not just office IT. Industrial environments introduce harmonic distortion, motor inrush, and power factor variation that lighter-duty UPS systems mishandle. The three-phase double-conversion design absorbs these without passing disturbances to connected loads.

Integration and Compatibility

The GVSUPS20KB4FS is rated for 208V three-phase environments, which are standard in North American colocation facilities, enterprise data centers, and industrial electrical systems. Downstream compatibility requires 208V three-phase distribution — single-phase 120/208V loads can be served via appropriate PDUs connected to the UPS output.

The Galaxy VS platform integrates with APC's EcoStruxure IT monitoring ecosystem and is designed to support network management cards for SNMP-based monitoring, alerting, and remote shutdown — though buyers should verify specific card compatibility with APC's current accessory matrix for this model. For environments using a network management infrastructure, remote UPS monitoring is standard practice at this power tier.

Battery runtime at full 20kW load will depend on the two included 9Ah strings — runtime is typically measured in minutes at full load for this class of UPS, with extended runtime achieved by adding external battery modules or strings. Size battery runtime to your generator start and transfer time, not to extended outage duration.

Frequently Asked Questions

Q: What is the output voltage of the GVSUPS20KB4FS?

A: The GVSUPS20KB4FS outputs 208V AC three-phase, matched to its 208V AC input. This is standard for North American data center and industrial three-phase distribution.

Q: Does the GVSUPS20KB4FS have a transfer time when switching to battery?

A: No. The Galaxy VS uses online double-conversion topology, which means the load runs off the inverter continuously. Transfer time is 0 ms — there is no switching event when utility power fails.

Q: What input voltage range does the GVSUPS20KB4FS accept before switching to battery?

A: The unit accepts input voltages from 177V AC to 239V AC. Below 177V AC, it transitions to battery operation to maintain regulated 208V output.

Q: Can the battery capacity be expanded on the GVSUPS20KB4FS?

A: Yes. The unit ships with two internal 9Ah smart modular battery strings and is designed to accept additional strings for extended runtime. This allows runtime to be scaled to match generator start time requirements without replacing the UPS chassis.

Q: Is the GVSUPS20KB4FS suitable for industrial environments?

A: Yes. APC rates the Galaxy VS for data center, critical system, and industrial applications. The three-phase online double-conversion design handles the harmonic distortion and power factor variation common in industrial electrical environments.

Q: What input frequency does the GVSUPS20KB4FS accept?

A: The unit accepts input frequencies up to 70 Hz, providing compatibility with generator sources that run above the 60 Hz nominal — a practical consideration in industrial and critical infrastructure sites.

Jerry Tildsen

The spec I zero in on first with the GVSUPS20KB4FS is the 177V AC low-end input voltage acceptance. In data center environments fed from shared utility services or generator sets with soft voltage regulation, brownouts routinely push input below 190V — and a UPS that switches to battery at 195V will cycle those batteries constantly during utility stress events, cutting service life and triggering unnecessary battery replacement cycles. The 177V floor on this unit gives you real headroom.

Technical Highlights:

• 0 ms Transfer Time: Online double-conversion means no gap between utility failure and inverter takeover — critical for storage arrays and virtualization hosts that log a fault on transitions as short as 4 ms.
• 20 kW at 208V Three-Phase: Unity power factor rating means the kVA and kW figures match — no derating for reactive load. What you see is what you get for load planning.
• Modular 9Ah Battery Strings: The two included strings give you a defined starting point; runtime at full 20kW load will be short (typical for this class), but the expandable architecture means you add strings to hit your generator-start SLA rather than buying a larger chassis.

Deployment Considerations:

• Confirm your facility's three-phase 208V distribution infrastructure before commissioning — the GVSUPS20KB4FS is input/output matched at 208V and does not include internal step-up capability for 480V feeds common in larger industrial panels.
• Runtime at full 20kW load on two 9Ah strings will be limited to a few minutes — size your battery string count to your generator transfer time, not to expected outage duration, and verify string expansion compatibility with APC's current accessory documentation before ordering additional modules.

This unit is the right fit for a small-to-mid enterprise data center pod or a critical industrial control room running 208V three-phase distribution, where the generator is already in place and the UPS's job is bridging the gap — not carrying the load through an extended outage.
