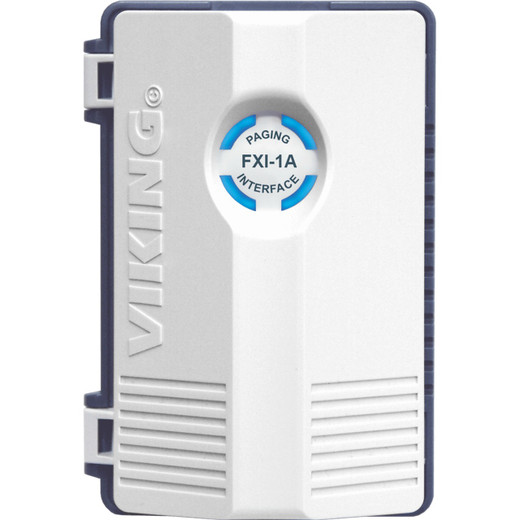

Viking FXO FXS/Telecom Smart Paging Interface - FXI-1A

Viking Electronics FXI-1A FXO/FXS Telecom Paging Interface

Overview

The Viking Electronics FXI-1A is a telephone paging interface module designed to bridge FXO trunk ports, FXS station ports, or line-level audio signals to commercial overhead paging systems. If your facility runs a mix of legacy analog telephony and an overhead paging infrastructure, the FXI-1A handles the translation — including the relay logic needed to mute background music automatically when a page fires. It's a compact, purpose-built device that solves a specific integration headache without requiring a full-blown VoIP overhaul.

For integrators working in schools, warehouses, retail environments, or office complexes where paging and phone systems need to coexist cleanly, the FXI-1A (often searched as FXI 1A) provides three distinct connection modes in a single chassis: FXS station port, FXO trunk port, and VOX paging port. That flexibility means one SKU covers several different phone-system topologies.

Key Features

• Three-Mode Interface (FXS / FXO / VOX): Connects to FXS station ports from PBX or hybrid systems, FXO trunk ports directly from the PSTN, or a VOX-triggered audio input — so it fits into virtually any analog or hybrid telephony architecture without adapter stacking.
• Built-In VOX Relay (DPDT): The voice-activated relay engages automatically when audio crosses the detection threshold, switching DPDT contacts to mute background music systems during a page. The VOX sensitivity is adjustable from -17 dBm to -37 dBm, giving you enough range to reliably trigger in quiet back-office environments or noisier industrial floors without false activations.
• VOX Timeout Delay (0.9 to 4.3 seconds): Adjustable holdoff prevents the music relay from snapping back between words during a long announcement — a small but critical detail in real-world paging deployments where choppy music cuts are unprofessional and annoying.
• Relay Contact Ratings (30V DC @ 1A / 125V AC @ 0.5A): The DPDT contacts handle most commercial background music switching loads directly — 125V AC at 0.5A is sufficient for relay-controlled audio distribution amps without requiring an intermediate relay board.
• 600 Ohm Floating Audio Output: Matches the balanced 600-ohm input impedance standard on commercial paging amplifiers, eliminating the ground-loop hum and level-matching issues that plague unbalanced consumer-grade connections.
• 22V DC Talk Battery: Provides the DC talk battery voltage expected by standard telephone interfaces, ensuring proper signaling and audio levels on FXO and FXS connections without external biasing circuitry.
• Flexible Power — AC or DC: Runs on 120V AC via the included UL-listed adapter or on 12V DC at 500mA — useful when deploying inside a powered enclosure or IDF closet where a 12V rail is already present. In FXS mode, external power is not required at all, simplifying cabinet wiring.
• Compact Form Factor (4.38″ × 2.97″ × 1.38″): The small footprint fits in a standard telecom enclosure, IDF shelf, or wall-mount bracket without consuming rack space. At 1.06 lbs shipping weight, it's light enough to surface-mount without special hardware.
• Operating Temperature 32°F to 90°F: Rated for conditioned interior spaces — mechanical rooms, telecom closets, server rooms. Not rated for unconditioned outdoor enclosures, so plan accordingly if the installation point lacks HVAC.

Integration and Compatibility

The FXI-1A is compatible with Viking Electronics paging and intercom product lines, as well as third-party paging amplifiers that accept standard 600-ohm balanced audio inputs. It connects to overhead paging systems in commercial, institutional, and industrial facilities where phone-system-triggered announcements are required.

For installations pairing a VoIP or IP-PBX with an analog paging plant, the FXI-1A connects to an FXS ATA port rather than requiring a dedicated analog trunk card. Pair it with a paging amplifier on the output side and the integration is straightforward. If you're designing a full paging architecture from scratch, review our paging system selection guide for amplifier sizing, zone planning, and telephony interface selection.

For larger facilities requiring zone control or multi-line paging, consider complementary Viking intercom and paging components to build out a complete system around the FXI-1A interface.

Frequently Asked Questions

Q: Can the FXI-1A connect to both FXO trunk ports and FXS station ports?

A: Yes. The FXI-1A supports FXO trunk port connections, FXS station port connections, and VOX paging port inputs — three distinct interface modes in a single unit.

Q: Does the FXI-1A require external power when used in FXS mode?

A: No. In FXS mode, external power is not required. For other modes, the unit runs on the included 120V AC UL-listed adapter or an external 12V DC 500mA supply.

Q: What is the VOX sensitivity range on the FXI-1A?

A: The VOX minimum audio signal threshold is adjustable between -17 dBm and -37 dBm, allowing calibration for both quiet office environments and louder industrial spaces.

Q: Can the FXI-1A mute a background music system automatically during pages?

A: Yes. The built-in VOX relay provides DPDT contacts rated at 125V AC / 0.5A specifically for switching background music off during paging announcements. The relay holdoff delay is adjustable from 0.9 to 4.3 seconds.

Q: What audio output impedance does the FXI-1A provide?

A: The FXI-1A outputs a floating 600-ohm balanced audio signal, which matches the standard input impedance of commercial paging amplifiers.

Q: Is the FXI-1A suitable for outdoor installations?

A: No. The FXI-1A is rated for 32°F to 90°F operating temperatures in conditioned interior spaces. It is not rated for outdoor or unconditioned enclosure installations.

Ted Perry

The FXI-1A is one of those devices that solves a genuinely frustrating integration problem cleanly. The built-in DPDT VOX relay with a -17 dBm to -37 dBm adjustable threshold is what makes it worth specifying over a passive transformer — you get automatic music muting without wiring a separate relay board or relying on the PBX to send a dry contact signal. I've seen plenty of installs where the phone system vendor doesn't expose a paging relay output, and this is exactly the unit that fills that gap.

Technical Highlights:

• VOX Timeout 0.9–4.3 seconds: Adjustable holdoff is critical in real paging environments — set it too short and the music relay chatters between words; set it too long and the music is slow to return after the page ends. The 3.4-second range gives enough tuning latitude for both rapid announcements and deliberate delivery styles.
• Floating 600-Ohm Output: Balanced floating output eliminates the ground-loop issues you'd get with an unbalanced consumer-grade connection to a commercial paging amp. This is the right impedance for virtually every commercial paging amplifier input on the market.
• Relay Contact Ratings (125V AC @ 0.5A): Handles most commercial background music amp relay inputs directly without intermediate relay boards — 0.5A at 125V AC covers the coil loads on typical distributed audio equipment.

Deployment Considerations:

• In FXS mode the FXI-1A draws no external power — useful when you're mounting it inside a powered PBX or telecom enclosure and want to minimize the adapter count. In FXO or VOX modes, budget a 12V DC rail or mount the included AC adapter nearby.
• The 32°F to 90°F operating range is the hard constraint to watch. Telecom closets near loading docks or unconditioned utility rooms can spike above 90°F in summer — verify ambient temp before commissioning or add a small enclosure fan.

For a K-12 school, corporate campus, or warehouse where the phone system is a hybrid PBX with analog station ports and the paging amp has a standard 600-ohm input, the FXI-1A is a clean, low-parts-count solution that requires no programming and no additional relay hardware.
