Viking 30 Watt Telecom Paging Amplifier with Loud Ringing - PA-30

Viking Electronics PA-30 30-Watt Telecom Paging Amplifier with Loud Ringing

The Viking Electronics PA-30 is a 30-watt paging amplifier built for commercial telephone and intercom systems where you need to push audio to a large speaker network without stacking additional driver hardware. Wired directly into a phone system or paging source, the PA-30 can push up to thirty 8-ohm speakers or fifty 70V/25V distributed speakers off a single unit — the kind of speaker density that covers a mid-size warehouse floor, school hallway, or multi-zone office without a secondary amp rack. If you're looking at Viking Electronics paging equipment broadly, the PA-30 sits at the workhorse tier for hardwired distributed audio.

Key Features

• 30-Watt Output Power: Thirty watts is enough headroom to drive a full 8-ohm speaker array to useful SPL levels in noisy environments. You're not running this on the edge of clipping — 30W leaves margin to compensate for long cable runs and higher-impedance losses without distortion artifacts at the far end of the chain.
• 8-Ohm Load: Up to 30 Speakers: Direct 8-ohm wiring supports up to thirty speakers in parallel — practical for facilities where low-impedance speaker runs are already in place or where you want to avoid 70V transformer overhead on every cabinet.
• 70V / 25V Distributed Output: Up to 50 Speakers: Switching to a 70V or 25V constant-voltage distribution topology lets you wire up to fifty speakers across long cable runs — the standard approach for large floor plates, parking structures, and multi-room coverage where impedance matching via transformers keeps line losses manageable.
• 120V AC / 15V AC Power Input: Standard North American mains input means no special power supply sourcing. The unit accepts 120V AC or a 15V AC 2.2A secondary supply, giving installers flexibility depending on what's available at the head-end location.
• 40V DC Talk Battery: The 40V DC talk battery output means the PA-30 can interface directly with traditional telephone system signaling — supporting ring detection and intercom-style hold/talk without requiring a separate line interface adapter on most installations.
• 3.5mm (1/8") Audio Jack: The onboard 3.5mm auxiliary input lets you feed in a pre-recorded message, tone source, or background music from any standard audio device. Useful for auto-attendant-style paging or scheduled announcement playback without routing audio back through the phone system.

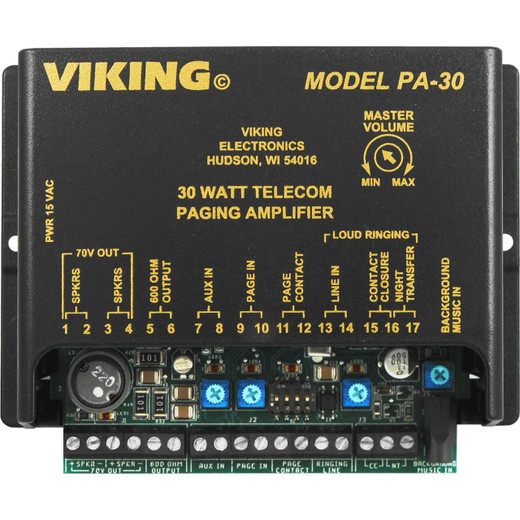

• 17-Position Terminal Block: A 17-position terminal block means you have dedicated screw terminals for every speaker zone, control, and signal line — no punch-down ambiguity, no shared terminals that create troubleshooting headaches during fault isolation.
• Compact Form Factor (5.25" × 3.5" × 1.75"): At under six inches wide and under two inches deep, the PA-30 mounts inside a standard equipment cabinet or on a backboard without displacing other hardware. The 3 lb weight keeps wall-mount loads negligible.
• Operating Temperature 32°F to 90°F: Rated for conditioned indoor environments — mechanical rooms, telecom closets, IT rooms. Not specified for outdoor or uncontrolled-temperature enclosures, so plan accordingly if the head-end space isn't climate-controlled year-round.
• Humidity Tolerance 5% to 95% Non-Condensing: The non-condensing humidity range covers most interior commercial environments, including those with seasonal humidity swings, as long as there's no direct condensation on the unit.

Integration and Compatibility

The PA-30 is designed for integration with Viking Electronics paging and intercom systems, including the PA-2A paging adapter referenced in the product documentation. It functions as the amplifier stage in a paging chain where a separate source device (telephone system, PA controller, or SIP adapter) feeds the audio input. For IP-based paging, Viking's PA-IP SIP/Multicast paging adapter can serve as a front-end source feeding into the PA-30's analog input — a practical pairing for facilities migrating to VoIP phone systems while retaining existing distributed speaker infrastructure.

The 3.5mm auxiliary jack makes the PA-30 compatible with virtually any analog audio source for non-telephone paging scenarios. When pairing with a distributed paging system, verify that your speaker transformer taps are configured for the 70V or 25V line voltage the PA-30 outputs — mismatched tap settings are the most common field problem on distributed installs.

For facilities building out a broader telephony and paging infrastructure, consider pairing the PA-30 with a PoE network switch to power any SIP-based paging front-end or door intercom equipment feeding the amp. Review your paging system design guide before specifying speaker count — wire gauge, run length, and tap impedance all affect how close you can get to the 30- or 50-speaker maximums in practice.

Frequently Asked Questions

Q: How many speakers can the PA-30 drive on a 70V distributed system?

A: The PA-30 supports up to 50 speakers on a 70V or 25V constant-voltage distributed system. On a direct 8-ohm wiring configuration, the maximum is 30 speakers.

Q: What is the power input requirement for the PA-30?

A: The PA-30 accepts 120V AC standard North American mains power, or a 15V AC 2.2A secondary supply. No specialized power conditioning is required for typical commercial installations.

Q: Can the PA-30 interface with a VoIP or SIP phone system?

A: The PA-30 itself is an analog amplifier — it accepts an analog audio input. For SIP/VoIP integration, you would pair it with a SIP-to-analog paging adapter such as Viking's PA-IP, which converts SIP/Multicast audio to an analog output that feeds the PA-30.

Q: What is the PA-30's talk battery voltage, and why does it matter?

A: The PA-30 provides 40V DC talk battery, which allows it to interface with traditional telephone system signaling for ring detection and intercom operation without requiring a separate line interface unit in most installations.

Q: Is the PA-30 suitable for outdoor or unconditioned spaces?

A: No. The PA-30 is rated for operating temperatures of 32°F to 90°F in a non-condensing environment, which means it is designed for conditioned indoor locations such as telecom closets, equipment rooms, or interior wall-mount applications. It is not rated for outdoor or uncontrolled-temperature enclosures.

Q: What audio inputs does the PA-30 accept?

A: The PA-30 includes a 3.5mm (1/8") auxiliary audio jack for connecting an external audio source such as a tone generator, media player, or recorded message device, in addition to its telephone system audio input path.

Jerry Tildsen

The PA-30 (often searched as PA 30) is the unit I recommend when a facility has an existing distributed speaker plant and wants a single-box amplifier that doesn't require a 70V line driver, a separate ring detector, and a third piece of hardware for the aux input — it handles all three. The 40V DC talk battery is the spec that often surprises people: that's what lets the PA-30 sit inline with a traditional analog phone circuit without an external line card, which matters on legacy PBX installs where you don't want to touch the core system.

Technical Highlights:

• 50-Speaker 70V Capacity: Fifty speakers at 70V/25V off one amplifier covers a meaningful floor plate — a 200,000 sq ft single-story warehouse with speakers on 60-foot centers is within reach, assuming reasonable tap settings and wire gauge. This is not a zone expander; it's a primary amp for a full install.
• 17-Position Terminal Block: Seventeen screw terminals give you per-zone home-run wiring without shared connection points — critical for fault isolation in large installs. When a speaker zone goes quiet, you go to one terminal, not a shared bus.
• Compact Enclosure (5.25" × 3.5" × 1.75"): This fits on a standard backboard alongside a 66-block or patch panel without consuming a full rack unit. At 3 lbs, wall anchors are the only hardware concern.

Deployment Considerations:

• The 32°F to 90°F operating range is a real constraint — verify the equipment closet has HVAC coverage in summer months. A telecom room that hits 95°F in August will push this unit outside spec.
• On 8-ohm direct wiring, the 30-speaker ceiling is a hard electrical limit, not a suggestion — exceeding it drops effective impedance below what the output stage is designed for and risks thermal damage over time.

The PA-30 is the right pick for a school, municipal building, or mid-size industrial facility doing a greenfield paging install or replacing an aging analog amp — particularly where the phone system is still POTS or a traditional PBX and the 40V talk battery compatibility eliminates what would otherwise be a two-box problem.
