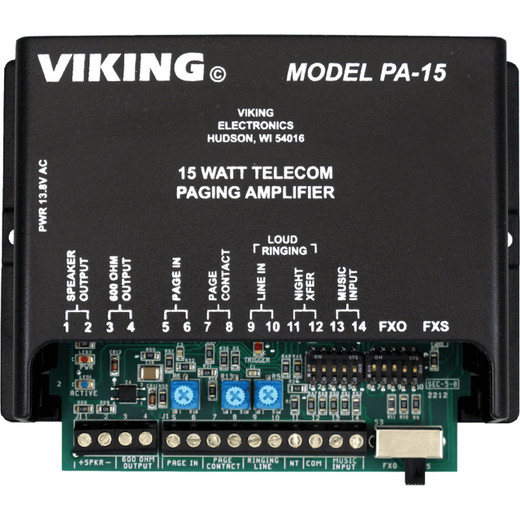

Viking Electronics PA-15 15-Watt Paging Amplifier with Background Music and Loud Ringing
The Viking Electronics PA-15 is a 15-watt paging amplifier built for small-to-mid-size commercial facilities — warehouses, light manufacturing floors, retail back-of-house — where you need reliable overhead paging, background music, and loud door-ring notification from a single compact unit. The PA-15 replaces the older CPA-7B, delivering twice the power output and several new features in a 5.25" x 3.5" x 1.75" enclosure that fits neatly in a telecom closet or equipment shelf. Internal link to the full Viking Electronics catalog if you need companion hardware.
Key Features
- 15 Watts into 8 Ohms: Running a full 15W into an 8-ohm load means you can drive up to 15 standard 8-ohm ceiling or horn speakers simultaneously — enough coverage for a mid-size open floor plan without a secondary amp zone. If your layout is under 15 speakers, headroom is ample and distortion at normal listening levels stays low.
- 115 dB SPL at 1 Meter: That's loud enough to cut through ambient noise in light industrial environments. For context, 115 dB SPL at 1m from the speaker means even speakers at the far end of a run will still deliver meaningful sound pressure — relevant when you need paging to be heard over conveyor or HVAC noise.
- Maximum 300 ft Speaker Cable Run: A 300-foot cable limit gives you real flexibility on speaker placement in larger open spaces without adding impedance-matching hardware. Lay out your speaker zones accordingly; exceed 300 ft and you risk signal degradation at the far end.
- 36V DC Talk Battery Output: The PA-15 provides 36V DC talk battery, which powers compatible Viking telephone entry or intercom stations directly off the amplifier — no separate power supply for the door phone side of the installation. This simplifies wiring in smaller entry-control setups.
- Background Music Input: A dedicated background music input lets you run ambient audio continuously and automatically duck it during a page — standard behavior for retail and light commercial environments. Paging takes priority; music resumes after the page ends.
- Loud Ringing Output: The ring output drives an external ringer or horn at elevated volume levels, making it practical as a loud bell replacement in noisy environments. This is particularly useful in warehouses or loading docks where a standard phone ringer is inaudible.
- 14 Cage Clamp Screw Terminals: Cage clamp terminations are more reliable than standard punch-down or bare-screw terminals under vibration, and they accept a wider wire gauge range. For a small paging system, this means faster field wiring and a more stable long-term connection.
- 120V AC Input, 13.8V AC 1.25A Adapter: The included AC adapter runs on standard 120V wall power — no special power circuit needed. At 1.25A draw, the PA-15 is light on your electrical panel. The adapter ships with the unit; no separate power supply procurement required.
- Operating Temperature 32°F to 90°F: This is an indoor-rated unit. The 90°F upper limit means you need to keep it in a climate-controlled or at least conditioned space. Do not install in unventilated equipment rooms that run hot in summer — this is not a hardened outdoor or industrial-temp device.
- Compact Form Factor — 5.25" x 3.5" x 1.75": Fits on a standard equipment shelf or inside most telecom enclosures. At 3.0 lbs shipping weight, it's easily wall-mounted or shelf-mounted without structural concerns.
Integration and Compatibility
The PA-15 is designed to integrate with paging and intercom systems in small commercial and light industrial facilities. It works with standard 8-ohm speaker systems — Viking's own 40AE ceiling speaker is explicitly referenced as compatible, and any 8-ohm speaker meeting the wiring distance and impedance requirements will work. The 36V DC talk battery output is compatible with Viking telephone entry stations and similar loop-powered intercom hardware.
For larger facilities requiring SIP-based IP paging or PoE-powered amplification, explore the network paging amplifier category — the Viking PA-IP handles SIP/multicast paging with PoE Class 3 power. The PA-15 is strictly an analog unit with no IP or network connectivity. If your phone system outputs a standard analog paging port, the PA-15 will wire directly to it. For more on matching amplifier output to speaker loads, review our paging system planning guide.
The PA-15 (often searched as PA 15) ships with a 2-year limited manufacturer warranty.
Frequently Asked Questions
Q: How many speakers can the PA-15 drive?
A: The PA-15 supports up to 15 standard 8-ohm speakers. All speakers must be 8-ohm rated, and cable runs must stay within the 300-foot maximum to maintain signal integrity.
Q: What is the maximum speaker cable run for the PA-15?
A: Maximum speaker cable length is 300 feet. Runs beyond this can introduce impedance and signal degradation issues at the far end of the zone.
Q: Does the PA-15 work with IP or SIP phone systems?
A: No. The PA-15 is an analog amplifier only. It requires a standard analog paging output from your phone system. For SIP or IP-based paging, look at the Viking PA-IP, which supports SIP and multicast paging over a network connection with PoE power.
Q: Can the PA-15 be used outdoors or in unconditioned spaces?
A: No. The PA-15 is rated for indoor use only, with an operating temperature range of 32°F to 90°F and humidity from 5% to 95% non-condensing. It must be installed in a climate-controlled environment — do not place it in unventilated equipment rooms or exterior enclosures.
Q: What does the PA-15 replace?
A: The PA-15 replaces the Viking CPA-7B, delivering twice the paging power (15W vs approximately 7W) and adds new features including background music input and loud ringing output.
Q: What warranty comes with the PA-15?
A: The PA-15 includes a 2-year limited manufacturer warranty.
The PA-15 is one of those units I keep recommending for smaller analog paging installs precisely because it consolidates paging, background music, and loud ring into a single 15-watt box. The 36V DC talk battery output is the detail that earns its keep — in a typical small-office or warehouse entry deployment, it powers the door phone station directly off the amplifier, eliminating a separate power brick and simplifying the rough-in considerably.
Technical Highlights:
- 15W / 8-ohm output: Supports up to 15 speakers on a single zone — sized right for a 10,000–20,000 sq ft open floor plan with standard ceiling speakers spaced at code-typical intervals.
- 115 dB SPL at 1m: Enough headroom to page over moderate ambient industrial noise without running speakers at clipping levels, which extends speaker life and keeps intelligibility up.
- 300 ft maximum cable run: Covers most single-story commercial building layouts without impedance-matching transformers, keeping the BOM lean and the install straightforward.
Deployment Considerations:
- The 90°F operating ceiling is a real constraint — verify your telecom closet or equipment room stays below that threshold year-round, particularly in facilities with poor ventilation or summer heat loading on exterior walls.
- This is a strictly analog unit with no network port, no SIP, and no remote management. If your phone system has already migrated to a cloud PBX or SIP trunk environment, confirm it has a functioning analog paging output before specifying the PA-15 — many hosted VoIP systems require an ATA or dedicated paging adapter to generate that output.
For a small retail store, a single-story light manufacturing facility, or a school building with an existing analog phone system and a need for overhead paging plus entry ring, the PA-15 is a clean, field-proven solution with minimal wiring overhead and a direct upgrade path from the older CPA-7B.
