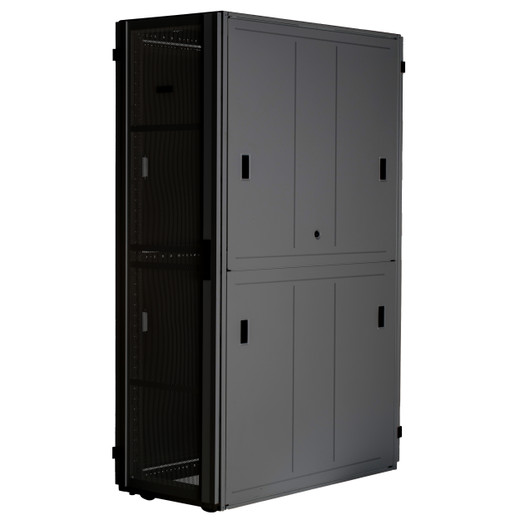

Panduit XGL84822B FlexFusion 48U Server Rack Cabinet

The Panduit XGL84822B is a 48U server rack cabinet engineered for high-density datacenter and network operations center deployments. This 800mm × 1200mm enclosure provides 90 inches of vertical equipment space in a powder-coated steel frame designed to house surveillance NVRs, network switches, PoE infrastructure, and enterprise compute equipment. The black finish and perforated front/rear doors deliver professional aesthetics while maintaining consistent front-to-back airflow across all 48 rack units. For integrators building centralized security control rooms or edge datacenter nodes, the XGL84822B combines Panduit's cable management ecosystem with field-proven thermal performance and seismic compliance.

Key Features

• 48U vertical mounting space accommodates full-height NVR chassis, patch panels, and network switches in a single enclosure
• Perforated front door and split perforated rear doors optimize airflow for equipment with front intake and rear exhaust thermal profiles
• 800mm width and 1200mm depth provide clearance for deep servers and cable management arms without sacrificing aisle space
• Includes pre-installed equipment rails with cage nuts, PDU mounting brackets, and heavy-duty casters for flexible deployment
• Powder-coated steel construction meets ANSI/TIA-942 and IEC 60297 standards for datacenter infrastructure
• Removable left and right side panels with tool-free latches for rapid equipment access during install and maintenance

The XGL84822B's 800mm frame width strikes the balance between equipment compatibility and floorspace efficiency. The 1200mm depth accommodates modern NVRs with hot-swap drive bays, enterprise PoE switches with redundant power supplies, and cable management accessories without rear-door interference. The split rear door design allows left or right access when wall clearance is limited — each half swings independently on reinforced hinges rated for 50,000 cycles. Perforations cover 68% of the door surface area, delivering consistent airflow without creating hotspots in vertically stacked equipment. For surveillance integrators provisioning 200+ camera NVR systems or multi-site network operations centers, this airflow capacity prevents thermal throttling during peak recording loads.

The included equipment rails ship with cage nuts pre-loaded at standard EIA-310-D spacing, allowing immediate rack-mount installation without field modifications. PDU mounting brackets attach to the vertical rails or rear frame, positioning power distribution units outside the equipment airflow path while keeping receptacles accessible. The four heavy-granularity casters lock in place once the cabinet reaches its final position, and optional leveling feet (sold separately) provide seismic bracing compliance for Zone 4 installations. The 2289mm overall height fits standard 10-foot ceiling commercial spaces with clearance for overhead cable trays, and the 800mm width allows two cabinets to occupy a 60-inch row with center aisle access.

Panduit's FlexFusion architecture integrates with the complete line of horizontal and vertical cable managers, fiber enclosures, and copper patch panels — a single-vendor pathway from wall entry to equipment connection. The XGL84822B's knockouts accept bottom or top cable entry grommets (sold separately), and the frame's welded construction eliminates ground-loop risk when bonding to building infrastructure. For integrators managing multi-building enterprise surveillance installations, standardizing on the XGL platform simplifies sparing, training, and long-term expansion as camera counts and storage requirements grow. Panduit's commercial warranty covers manufacturing defects, and the powder-coated finish resists corrosion in variable-humidity telecom closets and uncontrolled storage areas during staging.
