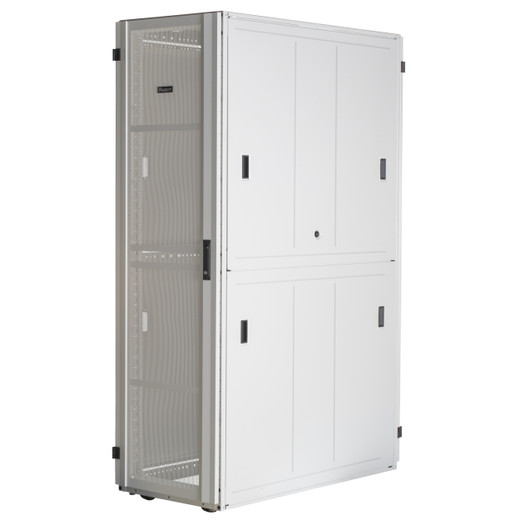

Panduit XG84829BS0006 FlexFusion 48U Network Cabinet
The Panduit XG84829BS0006 is a 48U FlexFusion network cabinet engineered for high-density datacenter and telecommunications environments where equipment weight, thermal management, and structured cabling converge. Built to EIA-310-E and IEC 60297 mounting standards, this steel enclosure supports 2,250 lbs dynamic load and 3,000 lbs static load, accommodating fully populated configurations of switches, servers, UPS units, and patch panels without structural compromise. The 800mm width and 1200mm depth provide generous front-to-rear clearance for deep servers and rear cable management, while integrated side panels and caster-mounted base enable flexible placement and future reconfiguration in live environments.
Key Features
- 48U vertical mounting space compliant with EIA-310-E and IEC 60297 standards for universal rack equipment compatibility
- 2,250 lb dynamic load capacity and 3,000 lb static load rating support fully populated high-density installations
- 800mm × 1200mm footprint optimized for deep networking gear and rear-access cable routing
- Steel construction with black finish provides durability and electromagnetic shielding in demanding facilities
- Integrated cable management rails on left and right sides organize horizontal and vertical wire paths
- Caster-equipped base allows repositioning during installation and maintenance without full equipment removal
- Removable side panels with tool-free latches enable rapid access for adds, moves, and changes
- UL 2416 listed for electrical safety in commercial and industrial telecom applications
Load Engineering for Mixed-Equipment Racks
Datacenter and server room deployments frequently combine equipment with vastly different weight profiles—1U switches under 30 lbs, 2U servers at 60-80 lbs, and 3U UPS modules exceeding 150 lbs. The XG84829BS0006's 2,250 lb dynamic load rating accounts for vibration, door operation, and movement on casters, while the 3,000 lb static rating covers fully populated racks during transport or seismic events. Steel vertical rails distribute point loads across the frame, preventing rail deformation when heavy gear is concentrated in the lower third. For installs mixing surveillance NVRs, PoE switches, and fiber distribution, this headroom eliminates per-slot weight calculations—you can populate all 48U without derated capacity concerns that plague lighter welded-tube designs.
Thermal and Cable Path Architecture
The 1200mm depth creates a natural hot aisle / cold aisle envelope: front-mounted active equipment draws cool air through perforated front doors, exhausts rear, and heated air exits through top vents or plenum pathways. The 800mm width matches standard 19-inch EIA mounting while leaving 4-6 inches on each side for vertical cable managers—critical when a single 48-port PoE switch generates 48 Cat6 patch cables that must route to overhead ladder rack or underfloor conduit. Integrated left and right cable management rails accept Panduit and third-party wire managers, slack spools, and D-ring mounts, keeping copper and fiber separated from airflow paths. For IP camera head-end racks feeding 100+ endpoints, this segregation prevents Cat6 bundles from blocking exhaust vents on the NVR's rear panel—a common thermal fault in shallow cabinets.
Access and Mobility for Live Environments
Removable side panels with tool-free quarter-turn latches allow lateral access without disturbing front-mounted switches or rear-mounted PDUs—essential when adding SFP modules to a core switch in a live production rack. Casters at the base enable two-person repositioning during initial layout or when expanding a row; once positioned, leveling feet lock the cabinet to the floor, meeting seismic bracing requirements in UBC Zone 4 installations. The black powder-coat finish resists corrosion in humidity-controlled spaces and provides a neutral backdrop for label schemes and asset tags.
This cabinet ships with manufacturer warranty and meets EIA-310-E, IEC 60297, and UL 2416 standards, ensuring compatibility with enterprise IT procurement specs and insurance/compliance audits for financial, healthcare, and government facilities. For integrators deploying structured cabling systems, surveillance head-ends, or converged IP infrastructure, the XG84829BS0006 delivers the load capacity, thermal design, and cable management required to support multi-year technology refresh cycles without enclosure replacement.
