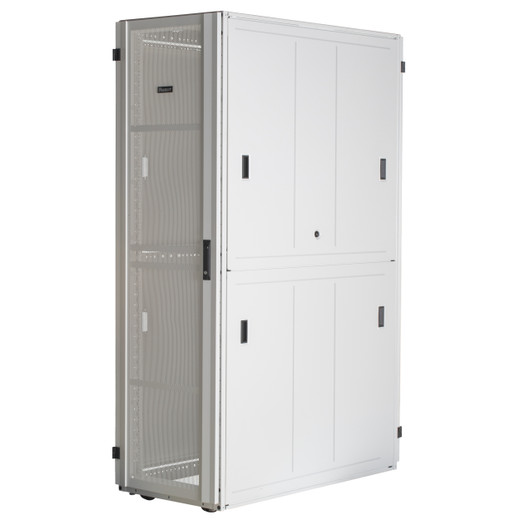

The Panduit XGL84812W is a 48U FlexFusion server rack enclosure engineered for high-density datacenter and enterprise server room deployments. With an 800mm width, 1070mm depth, and fully perforated front and split rear doors, this rack delivers the thermal management, serviceability, and cable routing infrastructure required for multi-vendor equipment installations. Ships complete with 19-inch equipment rails, cage nuts, PDU mounting brackets, and heavy-duty casters — everything needed for immediate deployment in colocation facilities, corporate datacenters, or on-premise IT infrastructure builds.
Thermal management drives uptime in modern datacenters. The XGL84812W addresses this with a fully perforated front door and split perforated rear doors that enable unobstructed front-to-back airflow. Most enterprise servers and storage arrays pull cool air from the front and exhaust heat through the rear — this rack's perforated doors reduce static pressure by up to 30% compared to solid or windowed doors, allowing equipment fans to operate at lower RPMs while maintaining target temperatures. In hot-aisle/cold-aisle deployments, the 800mm width aligns with standard tile layouts, and the split rear doors allow installers to position the rack flush against a hot-aisle containment wall while still providing independent left/right access for cabling and maintenance. The perforations are sized to prevent foreign object ingress while maximizing open area — a balance that matters when you're running blade servers or high-wattage switches that can pull 8-12kW per rack.
The split rear door design is a serviceability advantage that shows up during MAC (moves, adds, changes) work. Traditional single rear doors require 600-800mm of rear clearance to swing open — clearance that's often unavailable in mature datacenters where racks are positioned back-to-back or against containment panels. The XGL84812W's split doors open independently left and right, each requiring only 400mm of swing radius, so technicians can access rear equipment mounting without repositioning the entire rack. This matters during after-hours maintenance windows when you need to hot-swap a failed PSU or run fiber between racks — you're not moving 2,000+ lbs of installed equipment to get 18 inches of door clearance. The split design also enables two-technician simultaneous work on complex installations (one tech running power on the left vertical, the other routing data on the right) without the physical interference that occurs with a single center-hinged door.
Cable management and power distribution infrastructure are built into the design. The included PDU mounting brackets attach to the rear vertical rails in a zero-U configuration — your vertical PDUs mount outside the 19-inch equipment plane, preserving all 48U of usable space for servers and switches. This is the difference between fitting 47U of equipment and 48U of equipment in a single rack, which compounds across a 40-rack datacenter into real floor space savings. The 1070mm depth provides 200-300mm of rear cable routing space behind equipment (depending on server depth), enough to land Category 6A copper bundles, fiber trunk cables, and AC power whips without crushing bend radius minimums. The side panels are removable without tools for horizontal cable entry during structured cabling pulls, then reinstall to maintain the rack's RF shielding and physical security profile. Installers running overhead ladder rack or underfloor conduit will find the top and bottom knockouts pre-punched for standard grommets — no field drilling required.
Equipment compatibility starts with the pre-installed 19-inch rails and included cage nuts. These are square-hole rails (not threaded), so mounting is tool-free for equipment with captive screws or clip-nuts — slide the cage nut into the square hole, hang the equipment ear, and tighten. The vertical rail spacing is EIA-310-D compliant, which means any server, switch, patch panel, or KVM rated for standard 19-inch racks will mount without adapters or shims. The 800mm width provides generous side clearance for equipment with side-mounted cable arms or PSUs, and the 1070mm depth accommodates most 2U-4U servers (typically 700-900mm deep) with room for rear cable management. The powder-coated steel construction supports static load ratings well above typical fully-populated configurations — you're not going to sag the frame with 12 2U servers and a top-mounted UPS. The included casters are load-rated for moving the empty rack during installation, then retract when you deploy the leveling feet for operational stability (no rolling once equipment is installed and cables are dressed).
The white powder-coated finish serves both functional and environmental purposes. Powder coating provides better corrosion resistance than wet paint, which matters in datacenters with raised floor plenums that can trap moisture or in coastal facilities dealing with salt air infiltration. The white color reflects light in windowless server rooms, improving visibility during hands-on work without requiring installers to carry task lighting for every MAC operation. It also provides a neutral backdrop for label systems and asset tags — QR codes and barcode labels scan cleanly against white surfaces without the contrast issues that occur on black or gray racks. For facilities with clean room standards or pharmaceutical compliance requirements, the smooth powder-coated surface is easier to wipe down and maintain than textured finishes that trap dust.
Deployment is faster with the included casters and pre-installed rails. Out of the crate, you're rolling the rack into position (single-person task on smooth datacenter floors), locking down the leveling feet, and mounting equipment — no separate rail kit order, no field assembly of vertical supports. The split rear doors are pre-hung and keyed alike (one key operates front and both rear doors), so you're not managing three different lock cores during access control setup. For integrators managing multi-rack deployments, this means consistent keying across the entire installation and fewer spare keys to track. The rack ships as a complete unit (not flat-pack), so there's no field assembly of the frame itself — just uncrate, position, level, and load.
The Panduit XGL84812W sits in the overlap between thermal performance and real-world serviceability. Most datacenter rack decisions come down to one of two priorities: maximizing airflow (which usually means door designs that compromise rear access) or maximizing access (which usually means solid doors that choke cooling). This rack delivers both — perforated doors for airflow, split-door design for access — without requiring custom engineering or post-purchase modifications. For integrators building 10-50 rack datacenters, that's the difference between specifying one rack SKU that works across server rows, storage rows, and network rows, versus managing three different enclosure types with different door configs and different spare parts inventories. It's a 48U rack that works the way enterprise IT infrastructure teams actually operate: equipment gets added, moved, and maintained constantly, and the enclosure needs to stay out of the way while still doing its job.
